Description
TrueRC X²-AIR 5.8 MK II
SKUs:
RHCP: 0608597255782
LHCP: 0608597255799
Manufactured in Canada
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

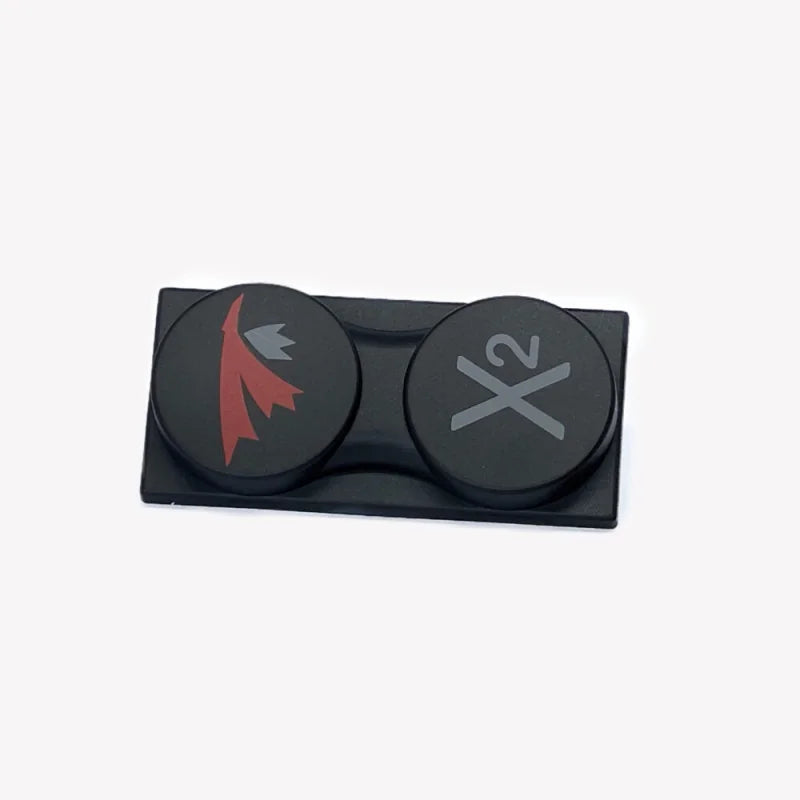

TrueRC X²-AIR 5.8 MK II
Following on the X-AIR 5.8 MK II, the X²-AIR 5.8 MK II brings even higher gain and a wider horizontal beam in a compact and light package. 13 dBic dual-element array with sector-type beam shape widest on the horizontal. SMA connector.
Specifications
- Gain: 13 dBic
- Polarization: RHCP or LHCP

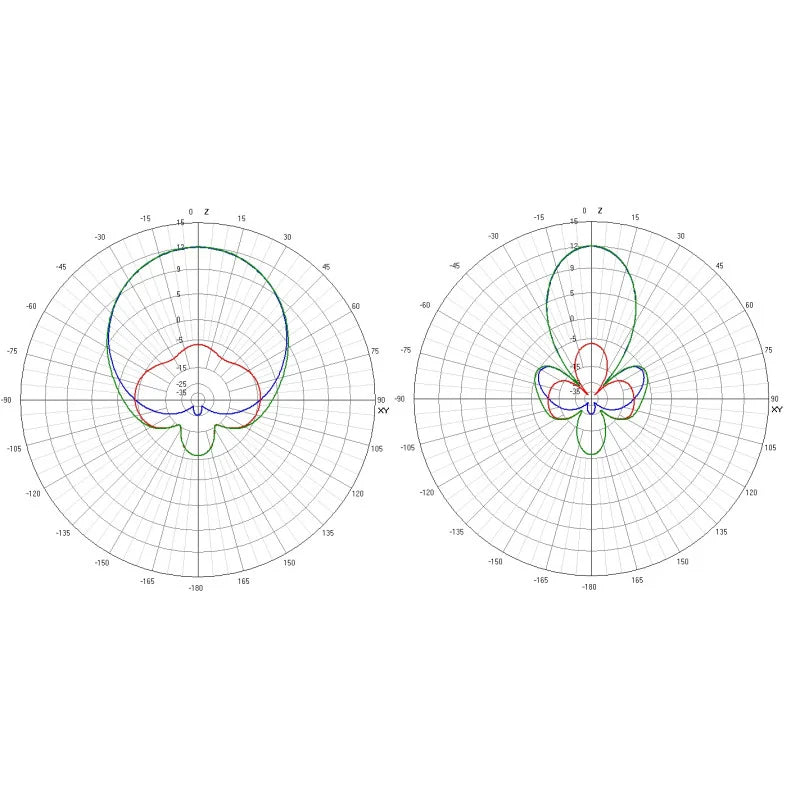

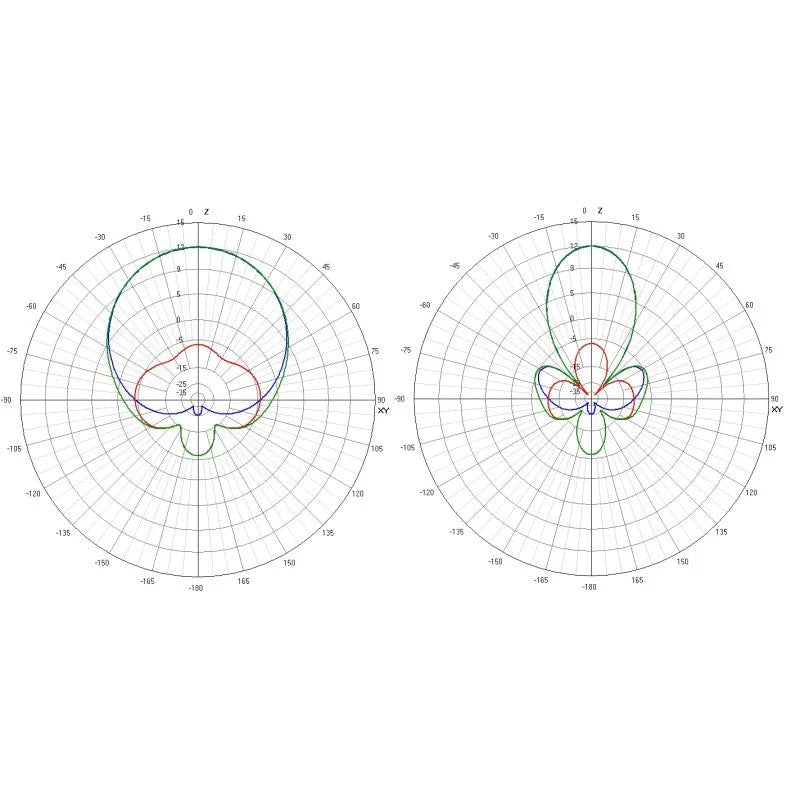

- Beam-width Horizontal*: 150°
- Beam-width Vertical*: 62°
- Hor. beam @-3dB**: 74°
- Vert. beam @-3dB**: 34°
- Bandwidth: 5.1GHz–7.0GHz
- Dimensions: 72mm × 34mm × 22mm
-
Connector: SMA
- Type of polarization: Circular polarization
- Frequency (GHz): 5.8
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
What's included:
TrueRC X²-AIR 5.8 MK II:
1x - X²-AIR 5.8 MK II
