Description
TrueRC X-AIR 5.8 Mk. II
SKUs:
RHCP: 0608597255645
LHCP: 0608597255652
Manufactured in Canada
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
TrueRC X-AIR 5.8 Mk. II

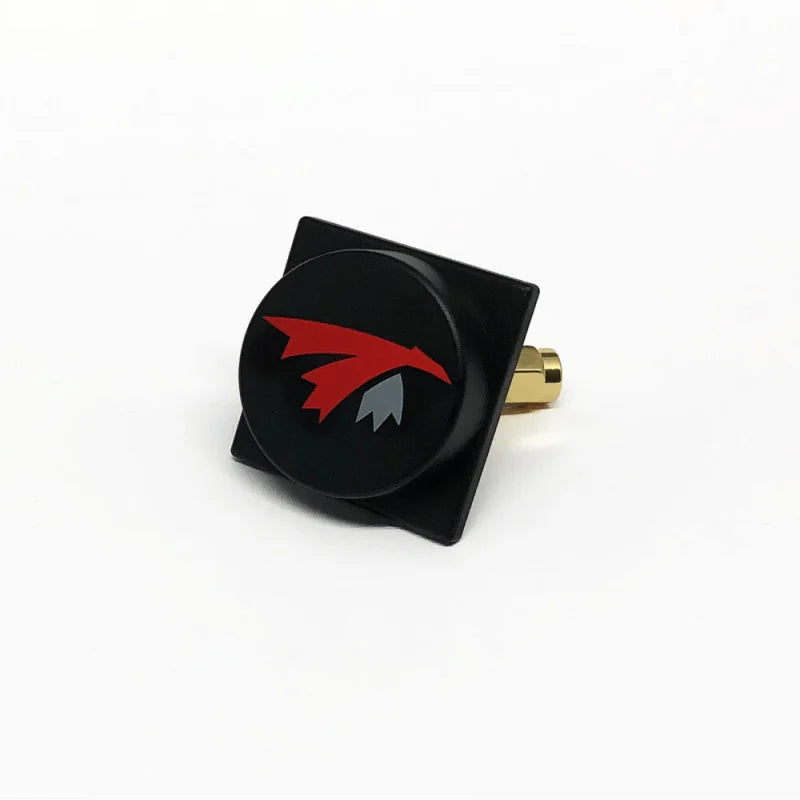

The X-AIR 5.8 MK II SMA is TrueRC's compact crosshair antenna with aerospace grade PCB. Nearly 1/4 the footprint of the original — same wide 120° coverage and high axial ratio, with SMA male connector.
Specifications
- Gain: 9.5–10.5 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 120°
- Beam-width Vertical*: 62°
- Beam-width @-3dB**: 68
- Vert. beam @-3dB**: 34°
- Bandwidth: 5.1GHz–6.7GHz
- Dimensions: 32mm × 32mm × 16mm
-
Connector: SMA
- Type of polarization: Circular polarization
- Frequency (GHz): 5.8
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
What's included:
TrueRC X-AIR 5.8 Mk. II:
1x - X-AIR 5.8 Mk. II
