Description
Hargrave microFLUX 2 LP
Skus:
Variant A (2 x Low Voltage Channels): 106115
Variant B (2 x High Voltage Channels): 106116
Variant C (1 x Low Voltage, 1x High Voltage Channel): 106117
Manufactured in Australia
Compliance
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

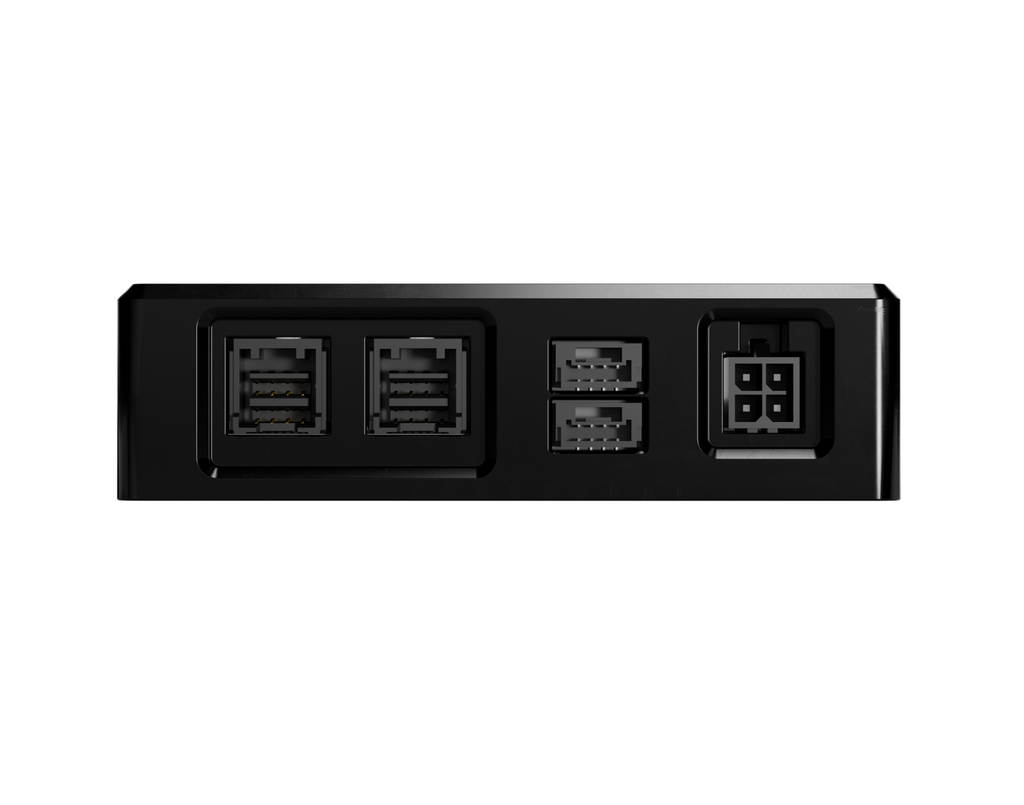

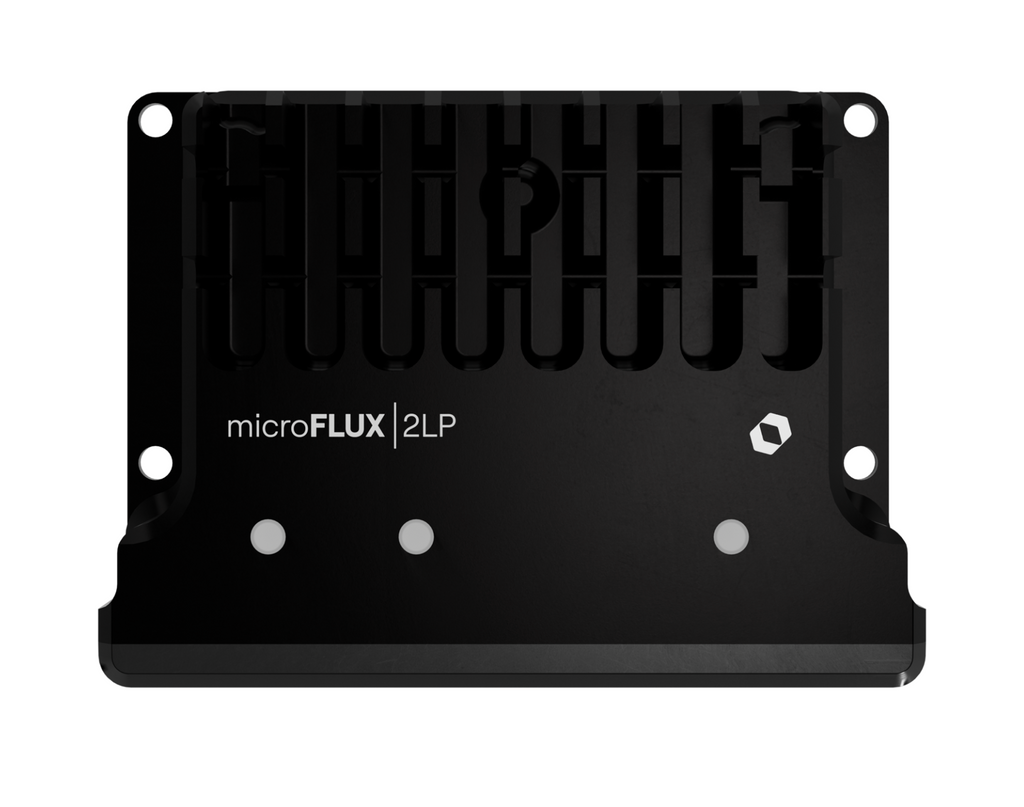

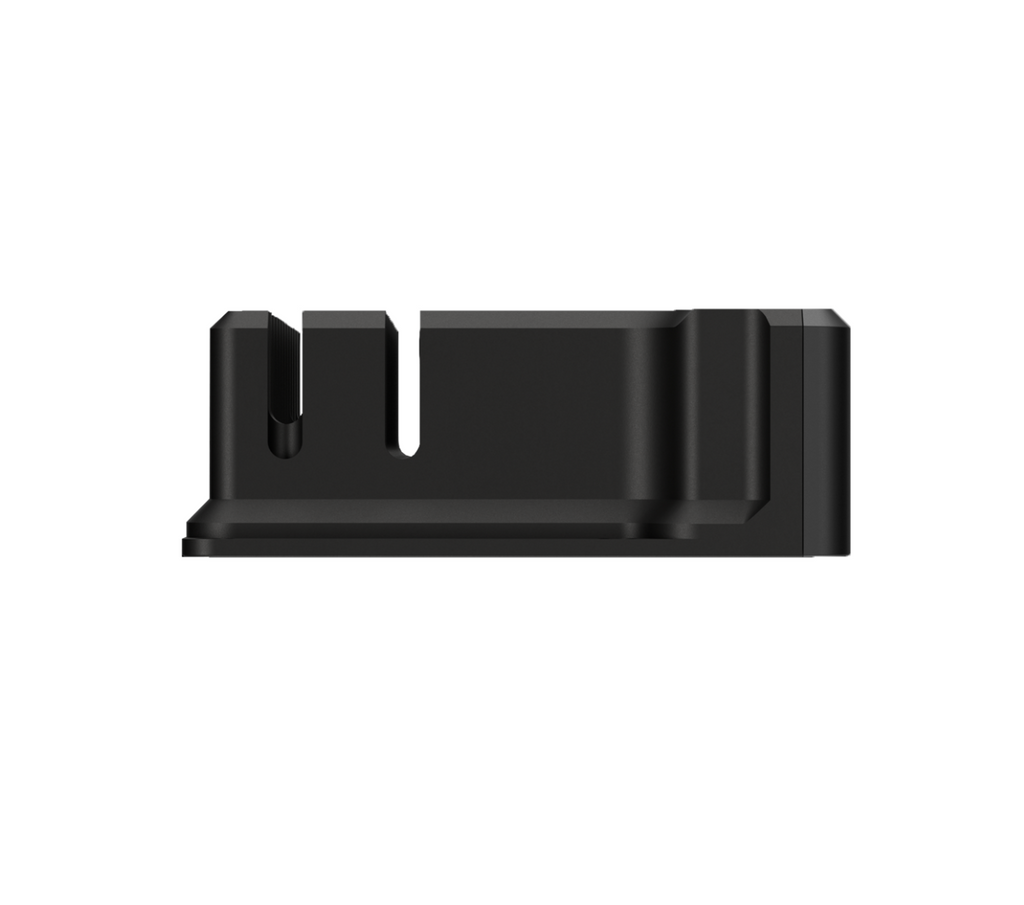

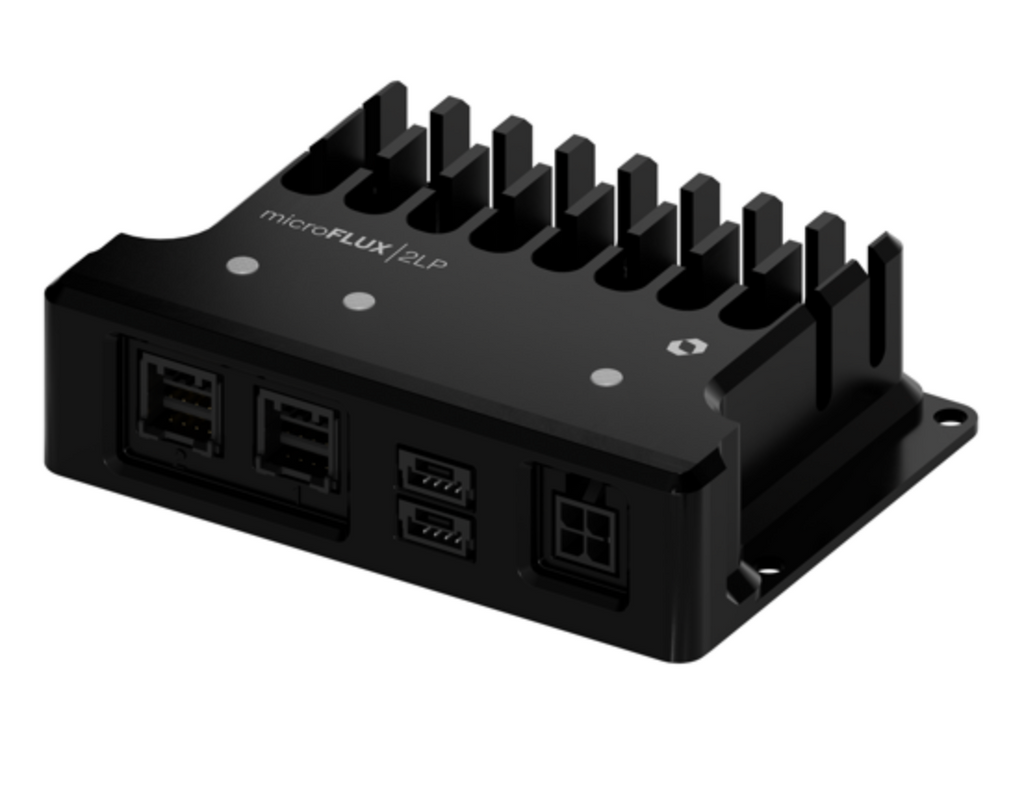

Hargrave microFLUX 2 LP
Built to fit cleanly into modern UAS architectures, microFLUX2LP reduces the friction between system design and real-world deployment. Digitally selectable output voltages align with the common operating range of low-power avionics, enabling flexible configuration without added complexity. The result is faster integration, reduced setup effort and more time focused on the mission.
Smaller Size, Same Capability.
For smaller applications requiring less outputs, microFLUX 2LP cuts down on excess size and weight, without sacrificing capability. microFLUX 2LP retains the same reliable power output, efficiency, and ease of system integration as microFLUX4LP, while reducing cable bulk, space requirements, and overall system overhead by removing two outputs.
Specifications
- Input Voltage: 15-60V [4S – 14S]
- Absolute Maximum Supply Voltage: 13 - 63V
- Maximum Input Current: 22A
- Weight: 83g
- Dimensions: 21 x 70.4 x 56.85mm
- Input Connector: Molex Micro-Fit+ 2x2
- Output Connector: Molex CLIK-Mate 4x2
- CAN Connectors: 2x JST GH 4 Pin
What's included:
Hargrave microFLUX 2 LP:
1x - microFLUX 2 LP
Visit the data sheet here: https://assets.hargravetechnologies.com/public/datasheets/microFLUX_2LP_Datasheet_1_0.pdf
