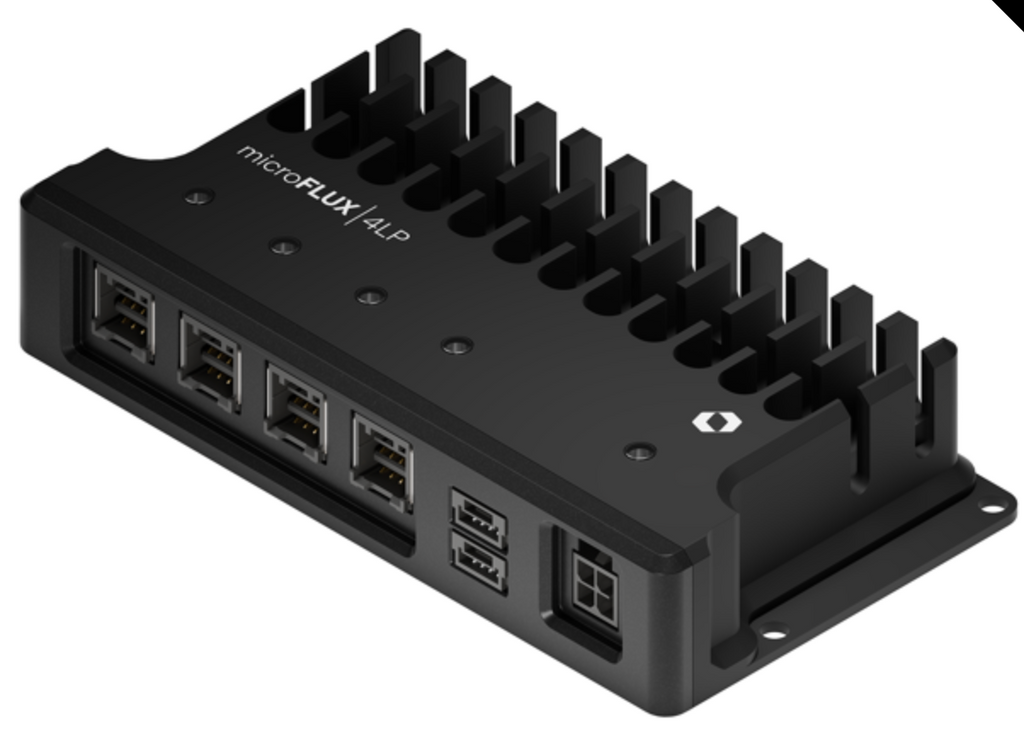

Hargrave microFLUX 4 LP

microFLUX 4LP is engineered for total flexibility, available to order with a mix of low and high voltage channels. Each channel offers digitally selectable output voltages across a range of commonly used voltages for precise, on-demand control. Independent channel control allows unused channels to be disabled, eliminating wasted energy and improving overall system efficiency.

As power needs evolve, microFLUX 4LP is able to adapt to consistently meet requirements, delivering seamless integration across a growing variety of aircraft systems and architectures.

microFLUX 4LP cuts out wasted engineering effort by removing the need to design, build, and validate a custom power-supply solution. Skip months of custom hardware headaches to reach a minimum viable product, and get straight to flying with a feature-rich, ready-to-integrate platform.

With digitally selectable output voltages, DroneCAN control, real-time telemetry, and high quality components, microFLUX 4LP is a fully validated, off-the-shelf power solution. Designed to be highly efficient across the entire load range, microFLUX 4LP is built for seamless integration across any aircraft system.

microFLUX 4LP provides full transparency into the real power use of an aircraft. Each channel is capable of independently tracking the voltage, current and power usage of its attached system, providing an instant view of overall system health and usage accessible via DroneCAN.

microFLUX 4LP enables greater confidence, easier diagnostics and a smarter way to manage onboard power.

Specifications

• Input Voltage: 15-60V [4S – 14S]
• Absolute Maximum Supply Voltage: 13 - 63V
• Maximum Input Current: 22A
• Base Weight: 113g
• Dimensions: 21 x 103 x 56.85mm

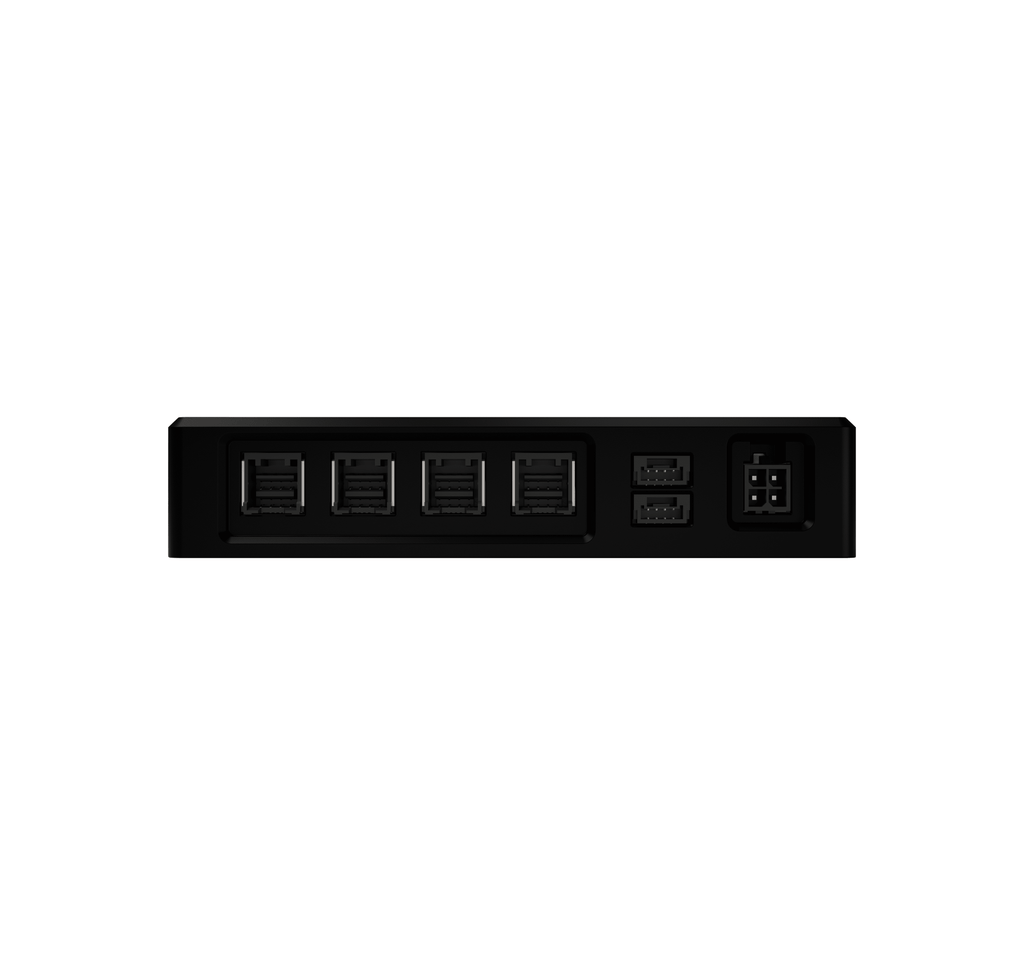

• Input Connector: Molex Micro-Fit+ 2x2
• Output Connector: Molex CLIK-Mate 4x2
• CAN Connectors: 2x JST GH 4 Pin

What's included:
Hargrave microDRIVE LP:
1x - microFLUX 4 LP
