Description

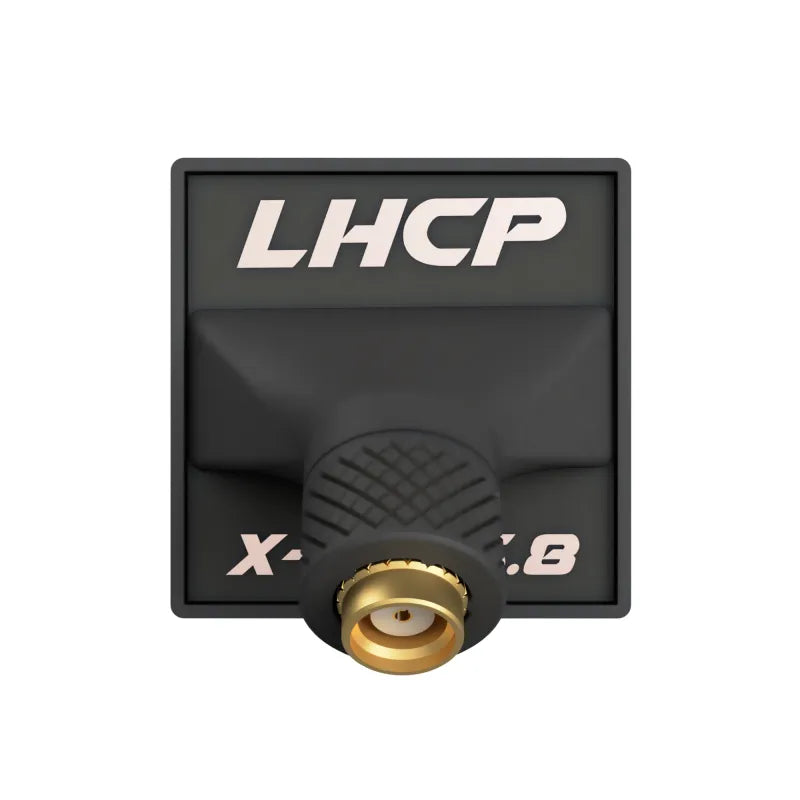

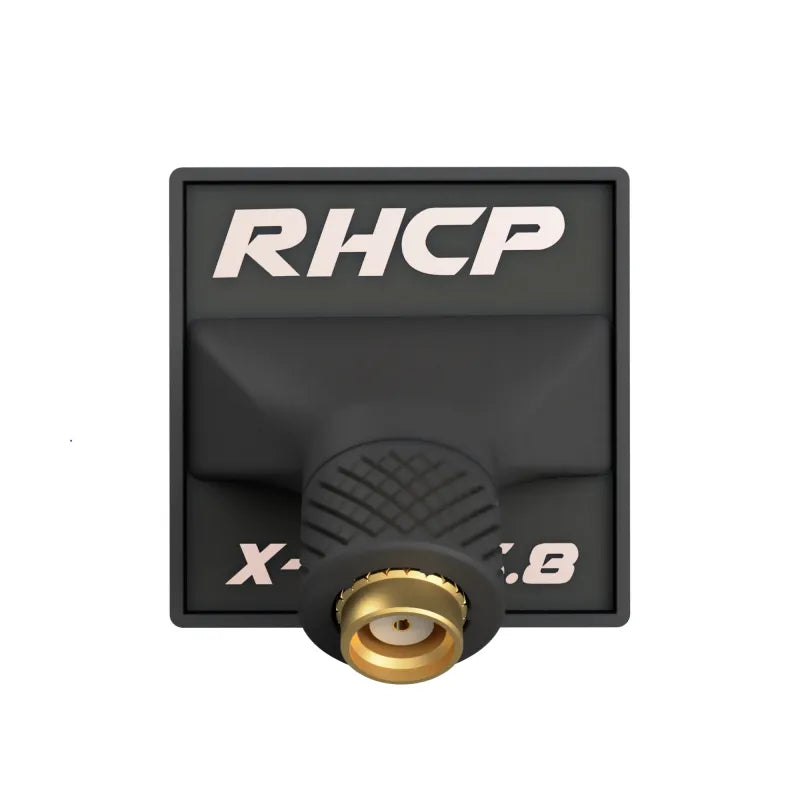

TrueRC X-AIR 5.8 Mk. II 45deg - RP-SMA
SKUs:
RHCP: 0608597256772
LHCP: 0608597256789
Manufactured in Canada
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
TrueRC X-AIR 5.8 Mk. II 45deg - RP-SMA
Now with build-in 45deg angled SMA connection! No more adapter needed to fit them on diversity analog modules, no more collision with nearby SMA.
The X-AIR 5.8 Mk. II is TrueRC's latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.
Specifications
- Gain: 9.5-10.5 dBic
- Polarization: RHCP or LHCP
- Beam-width (H and V)*: 120deg
- Beam-width @-3dB(H and V)**: 68deg
- Bandwidth: 5.8GHz
- Dimensions: 32 x 32 x 39mm
-
Connector: RP-SMA
- Type of polarization: Circular polarization
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
What's included:
TrueRC X-AIR 5.8 Mk. II 45deg - RP-SMA:
1x - TrueRC X-AIR 5.8 Mk. II 45deg - RP-SMA
