Description

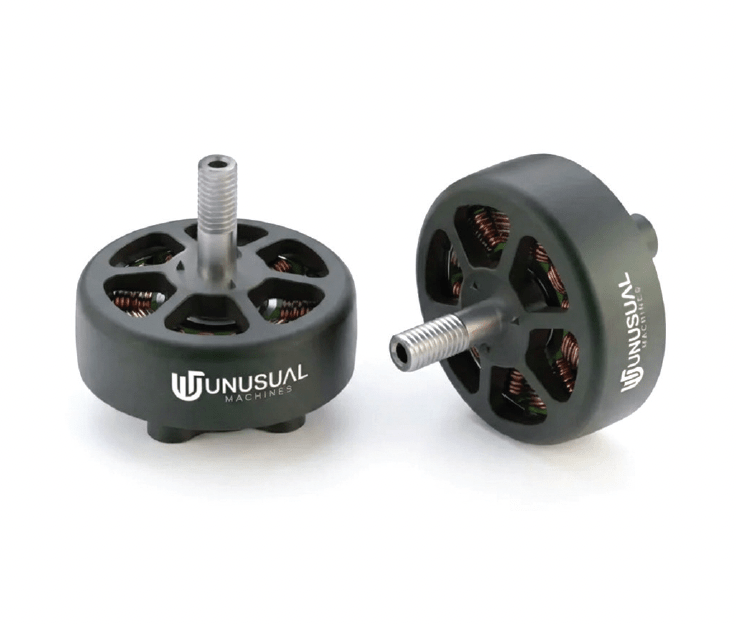

Unusual Machines UM 2807 Motor
SKUs:
Direct Solder:
1300KV: UMAC-2807-1300
1700KV: UMAC-2807-1700
Solder Free w/ 46mm wire + MR30 connector:
1300KV: UMAC-2807-1300-SF46
1700KV: UMAC-2807-1700-SF46
Solder Free w/ 88mm wire + MR30 connector:
1300KV: UMAC-2807-1300-SF88
1700KV: UMAC-2807-1700-SF88
Manufactured in U.S.A.
Compliance
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
UM 2807 1300KV Motor
- Endurance-focused motor
- High efficiency, thermal stability, and predictable performance
- Made for 5S–6S power systems
- Delivers smooth, predictable torque for endurance-oriented and sensor carrying multi rotor systems.
- Manufactured in Florida
UM 2807 1700KV Motor
- Rapid response, reduced mass, and controlled power delivery
- Made for 3S-5S power systems
- Balance efficiency and output for agile enterprise UAV platforms and lightweight mission profiles.
- Manufactured in Florida
Features
-
12N14P stator and rotor configuration
-
High thermal tolerance for sustained operation
-
Precision EZO bearings for smooth, reliable rotation
- Designed for enterprise and professional UAV platforms
Specifications
- KV Rating: 1300KV or 1700KV
- Stator Teeth /Magnetic Poles: 12N14P
- Winding Configuration: 1300KV: 13T, 1700KV: 10T
- Maximum Voltage: 1300KV: 25.2 V (5S–6S), 1700KV: 21.0 V (3S-5S)
- Maximum Current (3 seconds): 1300KVP 55 A, 1700KV: 62A
- Maximum Rotor Temperature: 100°C
- Specification: 180°C
- Bearings: EZO 684ZZ
- Weight (excl. wires): 1300KV: 44.6 g, 1700KV: 45.8 g
- Weight (incl. 3 x 20cm 16AWG wires): 1300KV: 50.8 g, 1700Kv: 52.0 g

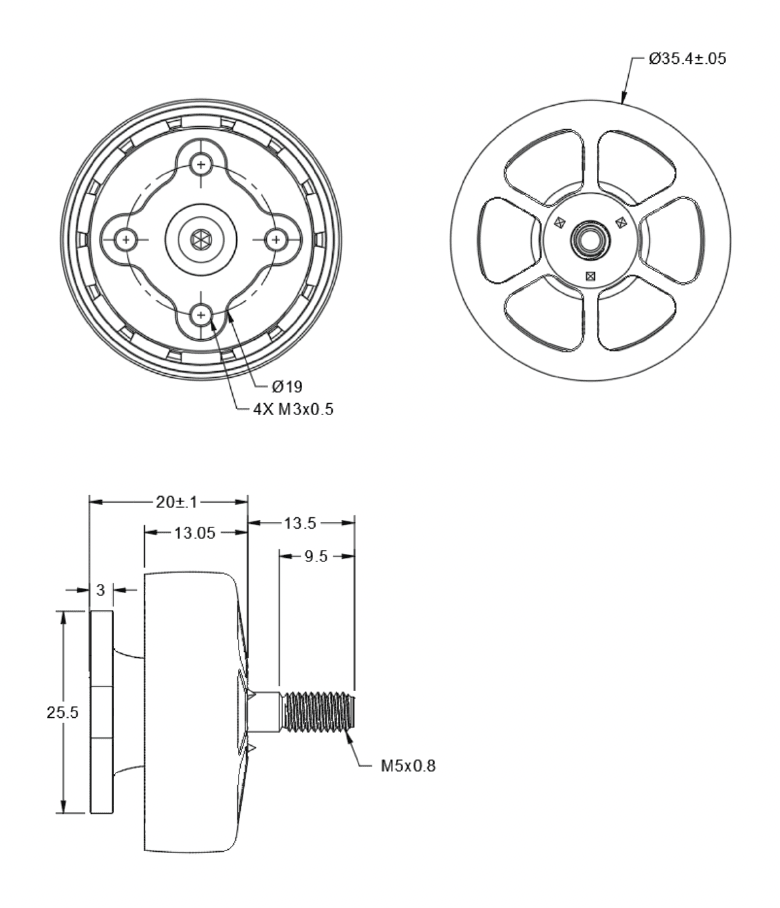

- Overall Length (H): 33.5 mm
- Body Length (h): 20.0 mm
- Shaft Diameter: 5 mm
- Motor Diameter: 35.4 mm
- Mounting Pattern: 4 × M3, PCD Ø19 mm
- No-load Current: (Io @ 10V: 0.6 A
- Winding Resistance (Rm): 11300KV: 102 mΩ, 1700KV: 62 mΩ
- Line Inductance: 1300KV: 28 µH, 1700KV: 28 µH
What's included:
Unusual Machines UM 2807 Motor:
1x - UM 2807 Motor
1x - M5 Nut
4x - M3 screws
