Unusual Machines UM2207 1860KV Motor

Unusual Machines UM2207 1860KV Motor

SKU: UMAC-2207-1860

Manufactured in U.S.A.

Compliance

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

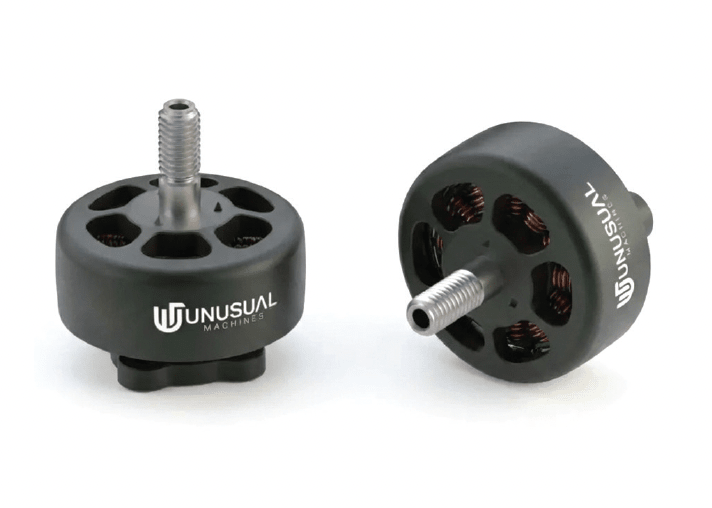

Unusual Machines UM2207 1860KV Motor

The UM2207 1860KV is an endurance-focused motor offering high efficiency, thermal stability, and predictable performance under sustained load. Made for 3S–6S power systems, the UM2207 1860KV delivers consistent torque output and thermal margin suitable for extended flight profiles and enterprise-grade UAV platforms. Manufactured in Florida.

Features

• Optimized 1860KV winding for endurance and efficiency

• 12N14P stator and rotor configuration

• Supports 3S–6S system voltages

• High thermal tolerance for sustained operation

• Precision EZO bearings for smooth, reliable rotation]

• Designed for enterprise and professional UAV platforms

Specifications

• KV Rating: 1860 KV
• Stator Teeth /Magnetic Poles: 12N14P
• Winding Configuration: 11.5T
• Maximum Voltage: 25.2 V (3S–6S)
• Maximum Current (3 seconds): 45 A
• Maximum Rotor Temperature: 100°C
• Specification: 180°C
• Bearings: EZO 684ZZ
• Weight (excl. wires): 33.3 g
• Weight (incl. 3 x 20cm 16AWG wires): 39.2 g

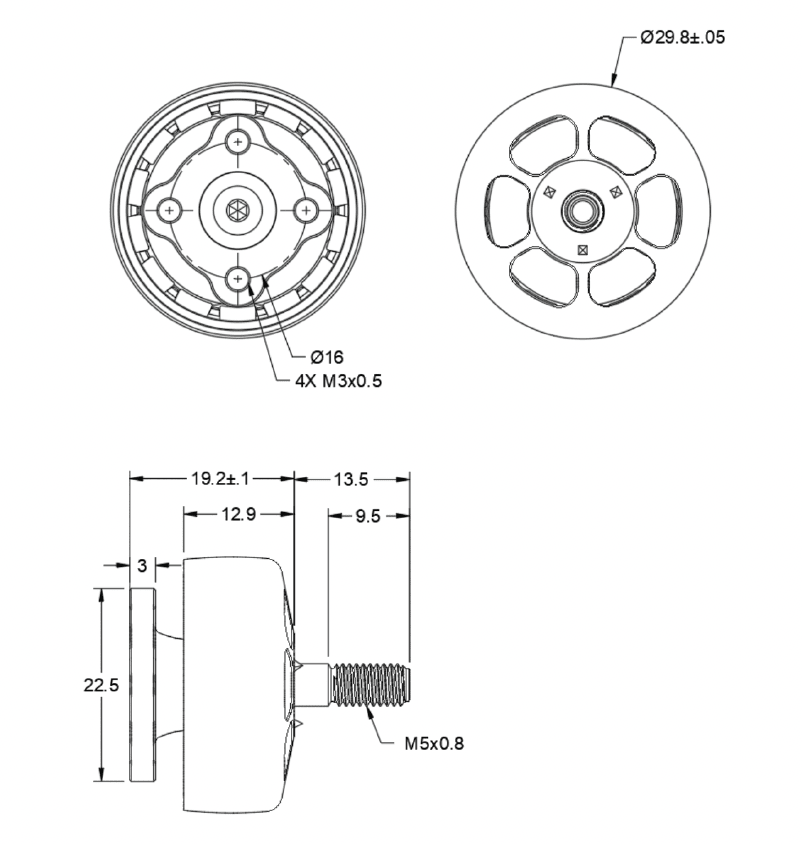

• Overall Length (H): 32.7 mm
• Body Length (h): 19.2 mm
• Shaft Diameter: 5 mm
• Motor Diameter: 29.8 mm
• Mounting Pattern: 4 × M3, PCD Ø19 mm
• No-load Current: (Io @ 10V: 0.6 A
• Winding Resistance (Rm): 109 mΩ
• Line Inductance: 21 µH

What's included:
Unusual Machines UM2207 1860KV Motor:
1x - UM2207 1860KV Motor
1x - M5 Nut
