Description
TrueRC X²-AIR 5.8 MK II for HDzero VRX4
SKUs:
RHCP: 0608597255256
LHCP: 0608597255263
Manufactured in Canada
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
TrueRC X²-AIR 5.8 MK II for HDzero VRX4

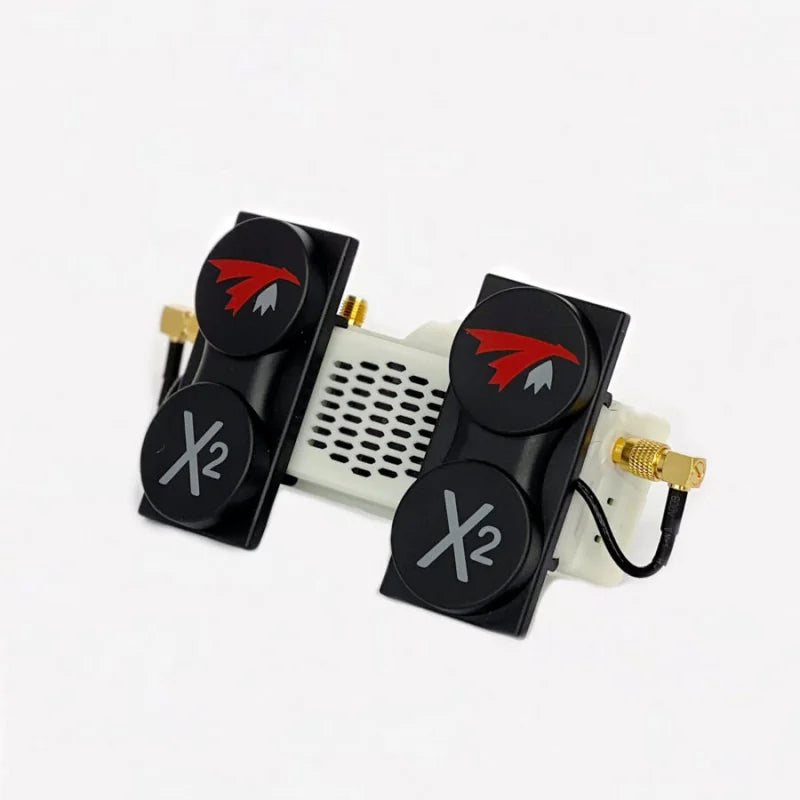

The X²-AIR 5.8 MK II pair for HDzero VRX4 slides directly onto the module's rails. 13 dBic gain and a combined 165° beam width. Custom knurled SMA connectors and included slide-on mounts make installation effortless.
Dual elements array — 13 dBic circular polarized, 75° beam per element
By combining two elements onto a single feed, gain is boosted and horizontal coverage is widened, trading vertical coverage that is rarely needed in FPV flying.
Low profile — only 15mm thick
The most compact antenna at this gain level. The included slide-on mounts attach natively to the HDzero VRX4 module.
Custom knurled SMA connectors
Made to the highest standards to fit the HDzero module perfectly. Knurled finish for easy hand-tightening.
Specifications
- Gain: 13 dBic
- Polarization: RHCP or LHCP
- Beam-width Horizontal*: 150°
- Beam-width Vertical*: 62°
- Hor. beam @-3dB**: 75°
- V ert. beam @-3dB**: 34°
- Bandwidth: 5.5GHz–6.7GHz
- Weight: 20g each
- Dimensions: 72mm × 34mm × 15mm
-
Connector: Custom knurled SMA
- Type of polarization: Circular polarization
-
- Compatibilities: HD Zero VRX4
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

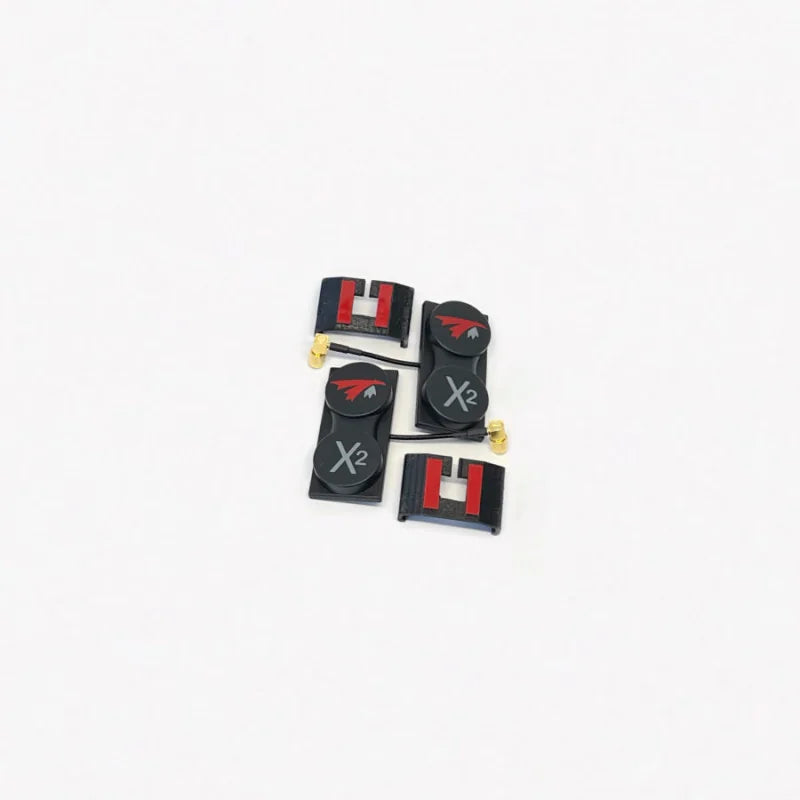

What's included:
TrueRC X²-AIR 5.8 MK II Pair for HDzero VRX4:
2x - X²-AIR 5.8 MK II pair for HDzero VRX4
2x - Mounts

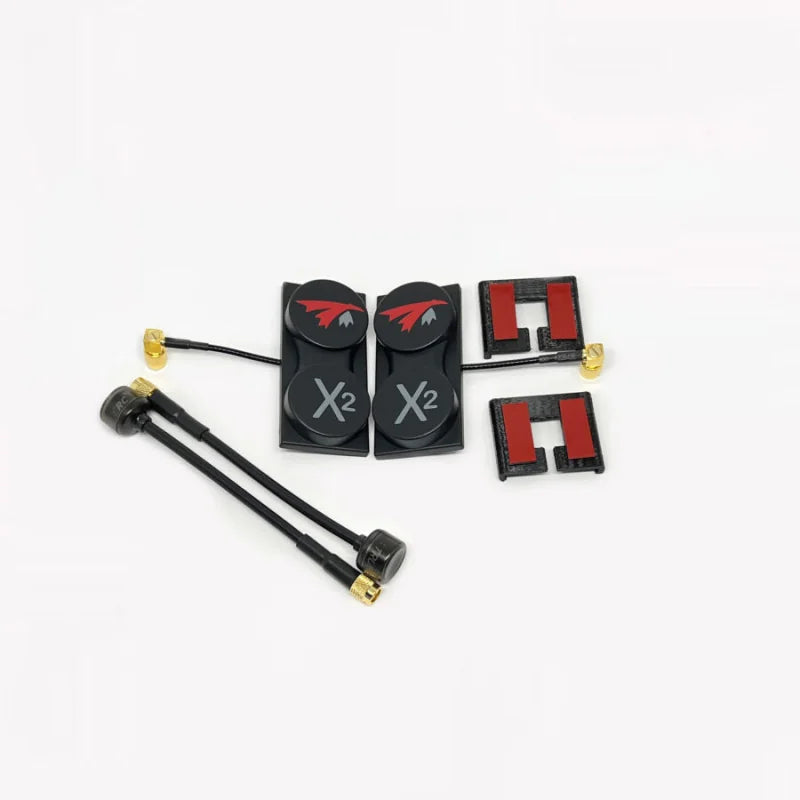

TrueRC X²-AIR 5.8 MK II Combo Core for HDzero VRX4:
2x - X²-AIR 5.8 MK II pair for HDzero VRX4
2x - Mounts
2x - TrueRC CORE 5.8 - SMA
3D print Resources:
