Description
TrueRC Stubby CORE 5.8 - SMA/RP-SMA
SKUs:
RHCP
SMA: 0608597256673
RP-SMA: 0608597256734
LHCP
SMA: 0608597256680
RP-SMA: 0608597256741
Manufactured in Canada
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

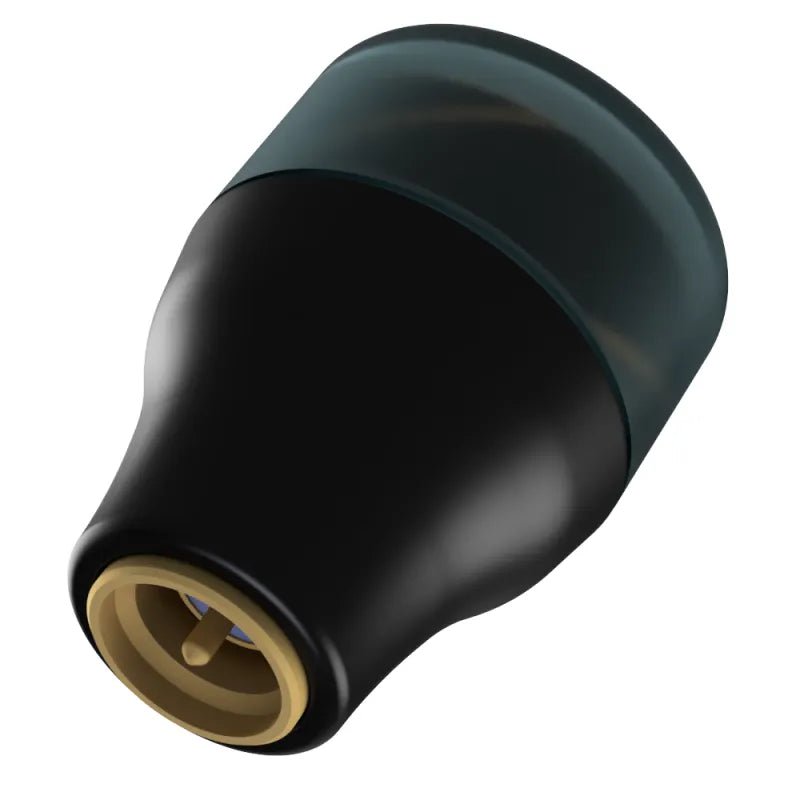

TrueRC Stubby CORE 5.8
The stubby 5.8 is a wide-band circular polarized antenna built onto LDS (laser direct structuring). By pushing the limits of this technology, TrueRC was able to etch the complex structure needed our antenna. Featuring a uniquely ingenuous design that incorporate both feeding network and CP elements within the antenna. Its low profile, make it especially useful for FPV goggles use.
Features
- Compact size
- High efficiency
- Uniform stable radiation pattern throughout bandwidth and beyond
- Excellent axial ratio throughout bandwidth and beyond
- DC grounded construction
Specifications
- Gain: @5.8GHz: 2.0 dBic
- Polarization: RHCP or LHCP
- Bandwidth: 5.5GHz–6.7GHz
- Weight: 4.9g
- Dimensions: Dia: 16.9, Height: 23.5
- Connector: SMA and RP-SMA
-
Frequency (GHz): 5.5-6.2GHz
-
Type of polarization: Circular polarization
What's included:
TrueRC Stubby CORE 5.8 - SMA/RP-SMA:
1x - TrueRC Stubby CORE 5.8
