TrueRC SINGULARITY 5.8 stubby SMA

TrueRC SINGULARITY 5.8 stubby SMA

SKUs:
RHCP: 0608597252095
LHCP: 0608597252095

Manufactured in Canada

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

TrueRC SINGULARITY 5.8 stubby SMA

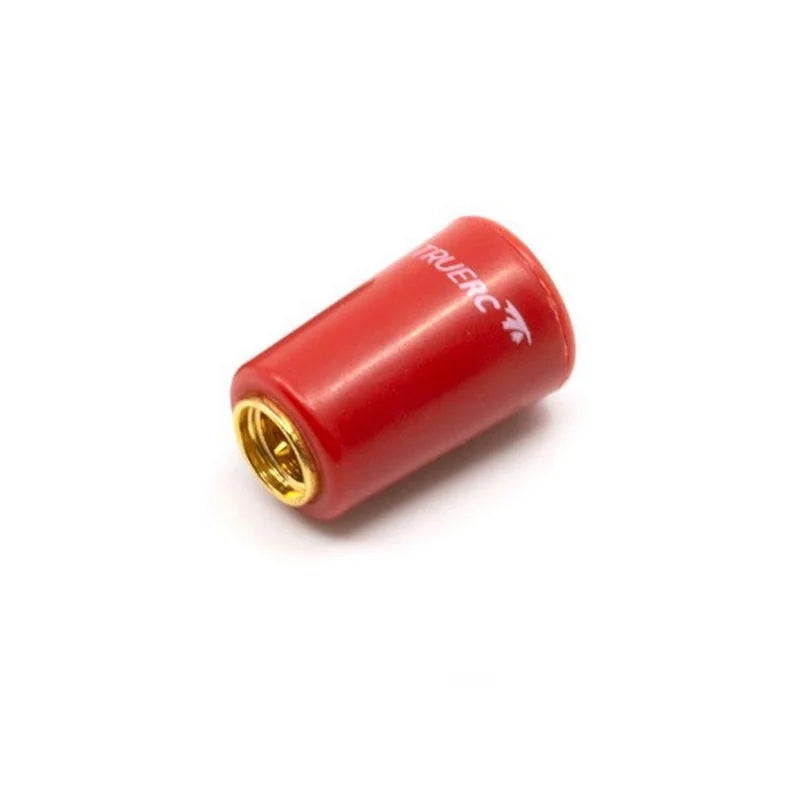

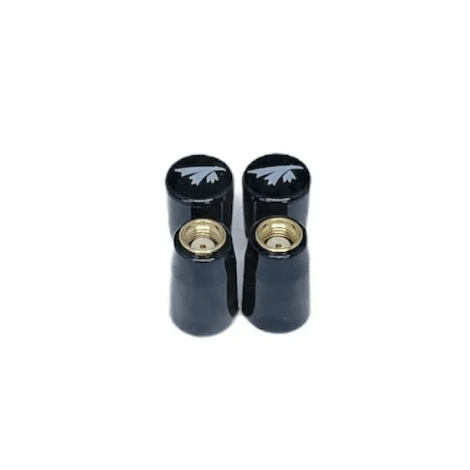

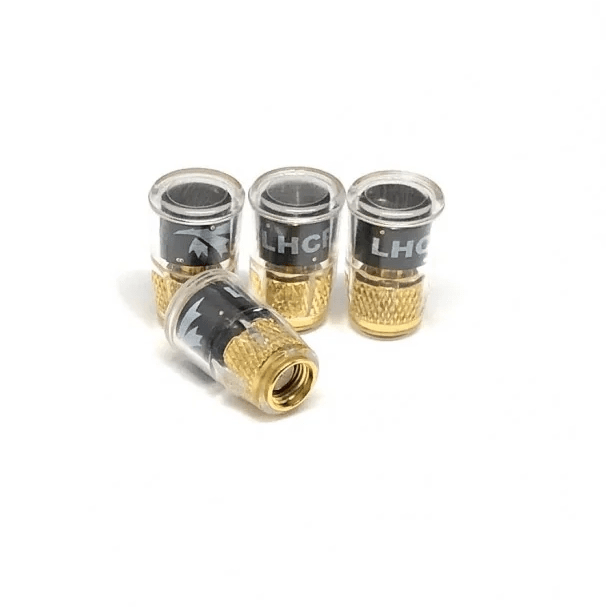

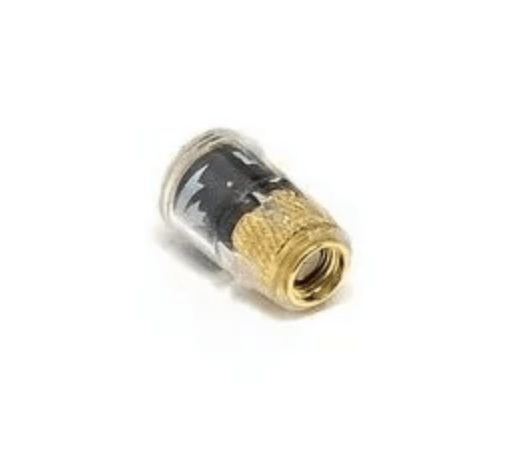

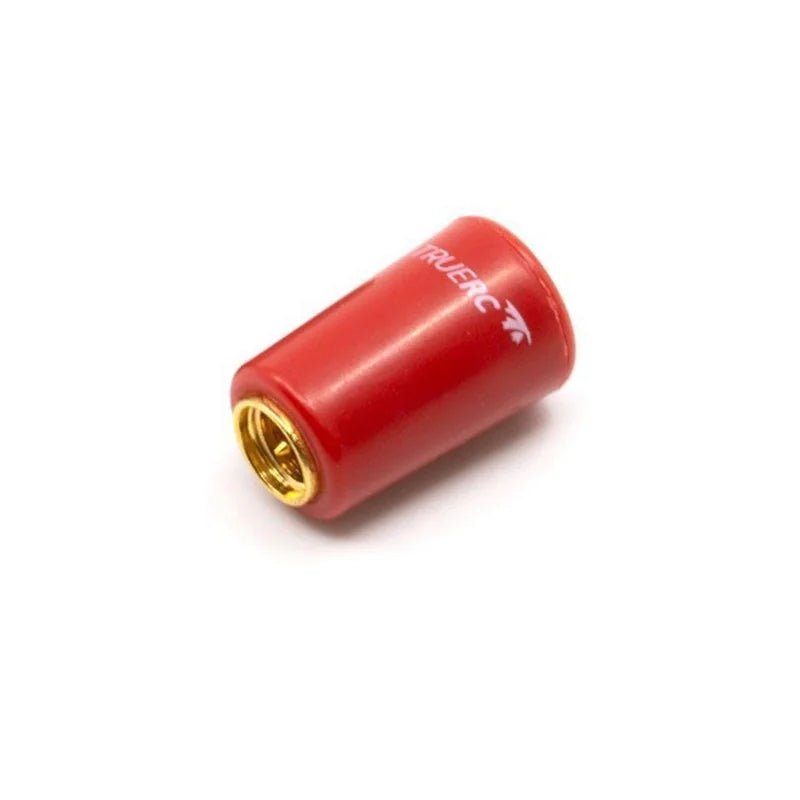

TrueRC Singularity 5.8 Stubby SMA — the proven Singularity CP omni in a thicker, hardened polycarbonate case built for extreme crash resistance. 1.9 dBic, 5.6–6.0GHz. RHCP or LHCP.

Specifications

• Gain: 1.9 dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: −15 to −30 dB (1.9%)
• Bandwidth: 5.6–6.0GHz
• Radiation Efficiency: 99%
• SWR: ≤1.5:1
• Weight: 3.7g
• Dimensions: 12.7mm dia. × 20mm height
• Connector: SMA

• Frequency (GHz): 5.8

• Type of polarization: Circular polarization

• Compatibilities: HD Zero Google, HD Zero VRX4

• Connector: SMA

What's included:

TrueRC SINGULARITY 5.8 stubby SMA:
1x -  TrueRC SINGULARITY 5.8 stubby SMA
