TrueRC SINGULARITY 5.8 stubby RP-SMA

TrueRC SINGULARITY 5.8 stubby RP-SMA

SKUs:
RHCP: 0608597253092
LHCP: 0608597253719

Manufactured in Canada

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

TrueRC SINGULARITY 5.8 stubby RP-SMA

TrueRC Singularity 5.8 Stubby RP-SMA — direct-fit replacement for DJI FPV Goggles with much lower profile than stock. 1.9 dBic, 5.6–6.0GHz. RHCP or LHCP. Over 50% more range.

Specifications

• Gain: 1.9 dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: −15 to −30 dB (1.9%)
• Bandwidth: 5.6–6.0GHz
• Radiation Efficiency: 99%
• SWR: ≤1.5:1
• Weight: 3.7g
• Dimensions: 12.7mm dia. × 20mm height
• Connector: RP-SMA
• Frequency (GHz): 5.8

• Type of polarization: Circular polarization

• Compatibilities: DJI FPV V1, DJI FPV V2, Worksnail Avatar HD / Fat Shark Dominator, Worksnail Avatar HD X


What's included:

TrueRC SINGULARITY 5.8 stubby RP-SMA:

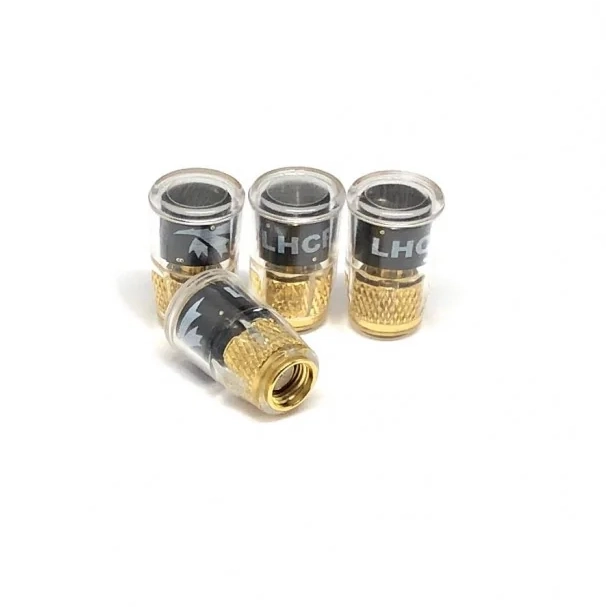

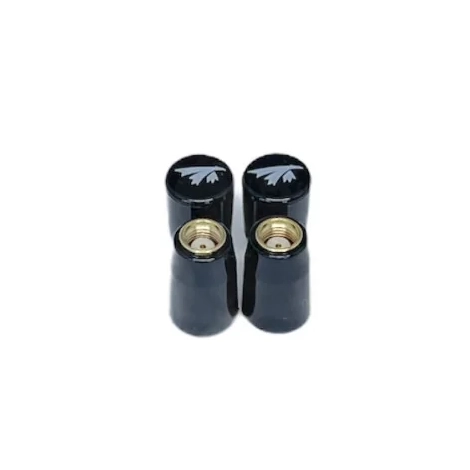

4x -  TrueRC SINGULARITY 5.8 stubby RP-SMA
