TrueRC CORE 5.8 - U.FL

TrueRC CORE 5.8 - U.FL

SKUs
RHCP:
U.FL 45mm:0608597255218
U.FL 85mm: U.FL: 0608597255232
U.FL w/35mm tube: 0608597256000
U.FL w/100mm tube: 0608597256024
LHCP
U.FL 45mm: 0608597255225
U.FL 85mm: 0608597255249
U.FL w/35mm tube: 0608597256017
U.FL w/100mm tube: 0608597256031

Manufactured in Canada

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

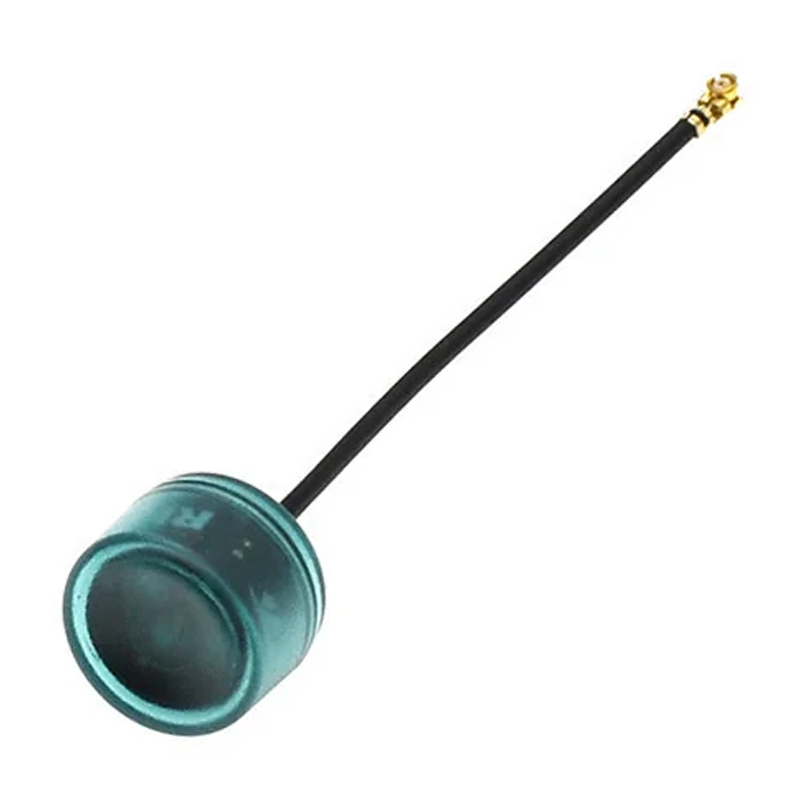

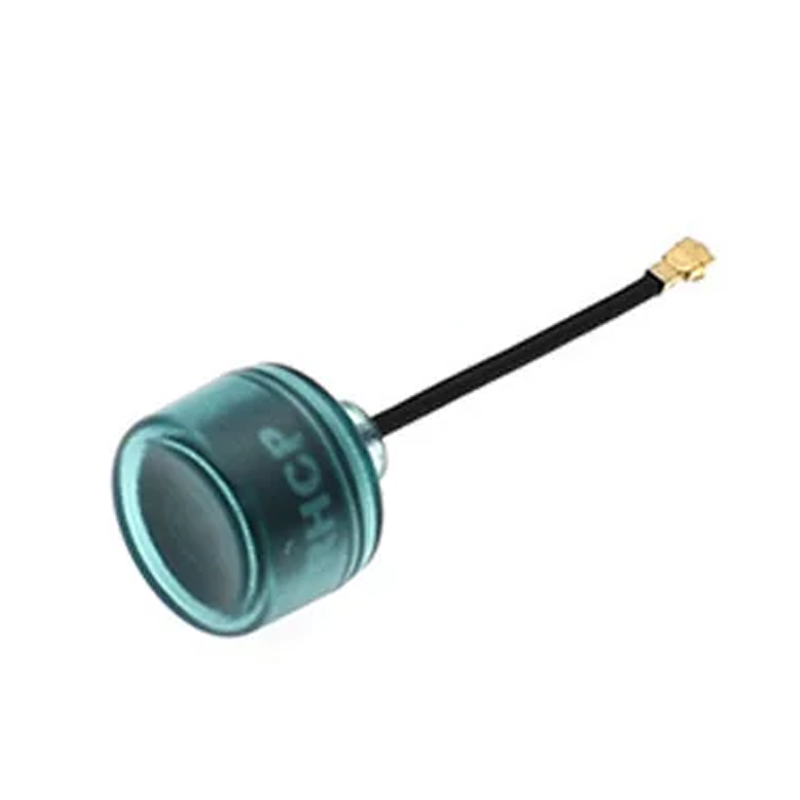

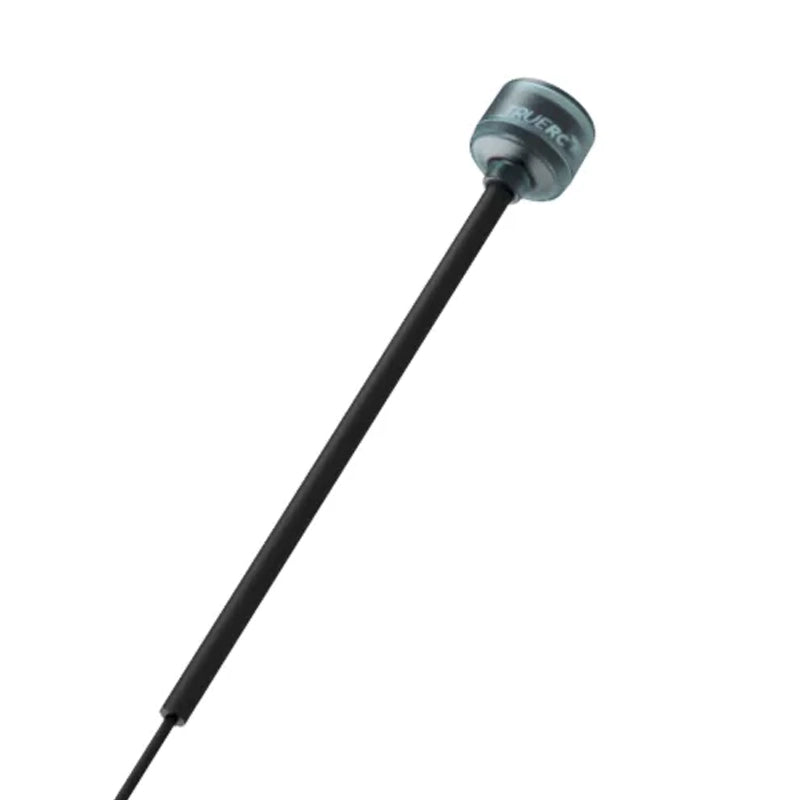

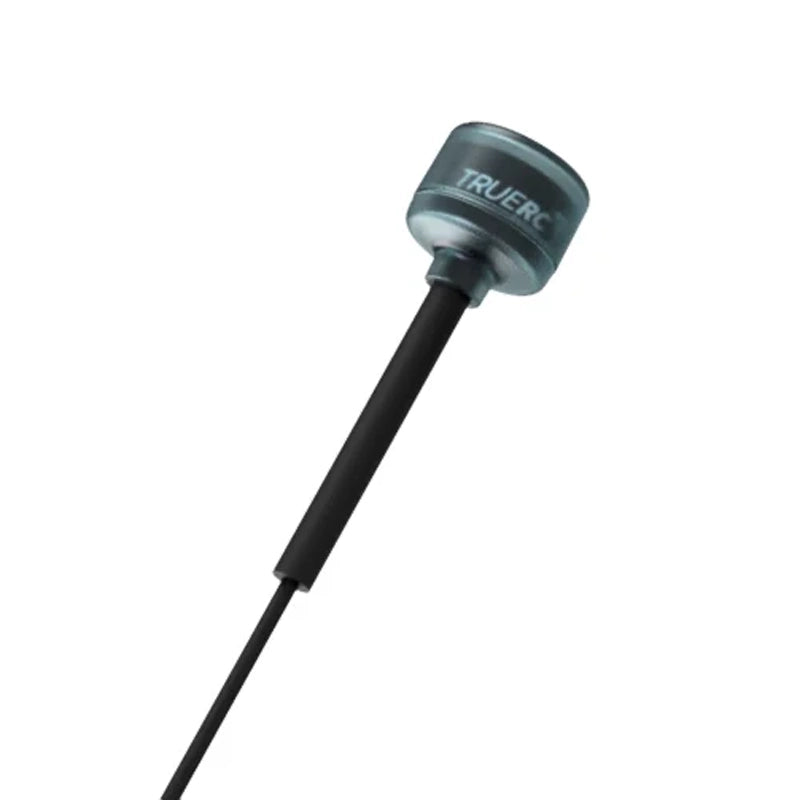

TrueRC CORE 5.8 - U.FL

TrueRC CORE 5.8 with U.FL connector — refined omnidirectional CP antenna with durable polycarbonate housing. 1.9 dBic, 5.5–6.7GHz, flexible 4mm tube. Available in RHCP or LHCP.

Specifications

• Gain: 1.9 dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: −10 to −20 dB
• Bandwidth: 5.5GHz–6.7GHz
• Radiation Efficiency: 98%
• SWR: ≤1.2:1
• Weight: Varies with cable option
• Dimensions (head): 1 6.9mm dia. × 13.1mm height
• Length: Varies with cable option
• Connector: MMCX or angled MMCX
• Frequency (GHz): 5.8

• Type of polarization: Circular polarization
• Connector: U.FL

What's included:

TrueRC CORE 5.8 - U.FL:
1x -  TrueRC CORE 5.8 - U.FL
