TrueRC CORE 5.8 - SMA/RP-SMA

TrueRC CORE 5.8 SMA/RP-SMA

SKUs:
RHCP SMA:
80mm: 0608597255317

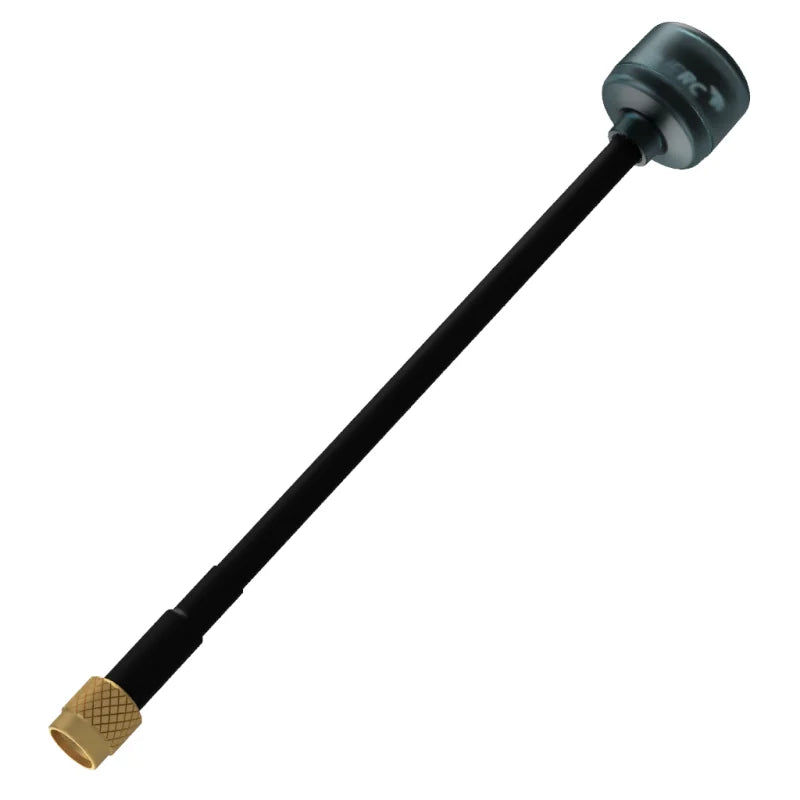

125mm: 0608597255331

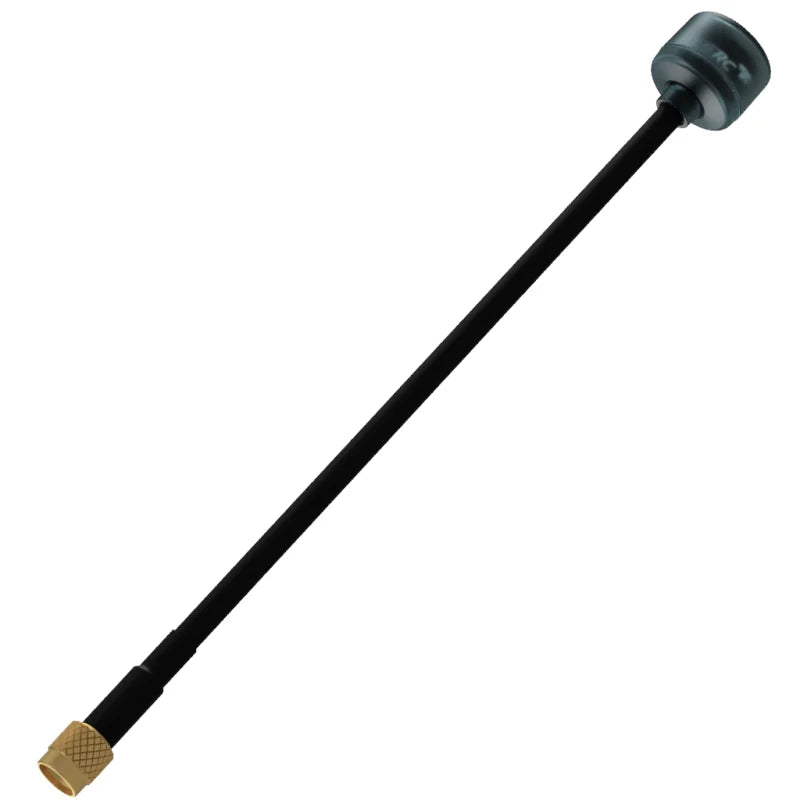

160mm: 0608597255355

RHCP RP-SMA:
80mm: 0608597255393
125mm: 0608597255416
160mm: 0608597255430

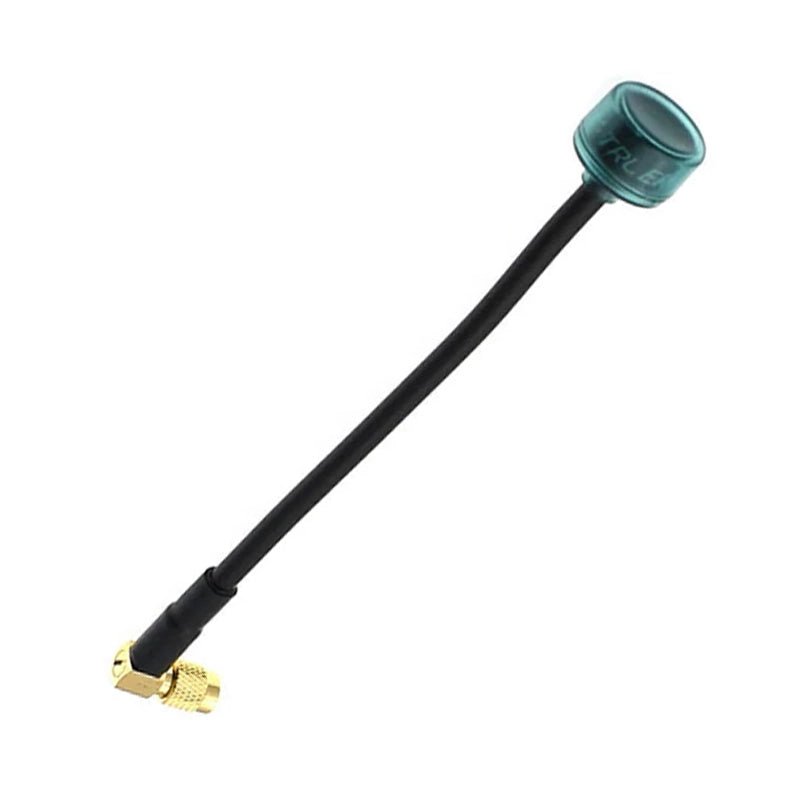

RHCP SMA 90deg:
160mm: 0608597255379

LHCP SMA:
80mm: 0608597255324
125mm: 0608597255348
160mm: 0608597255362

LHCP RP-SMA:
80mm: 0608597255409
125mm: 0608597255423
160mm: 0608597255447

LHCP SMA 90deg:
160mm: 0608597255386

Manufactured in Canada

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

TrueRC CORE 5.8 - MMCX

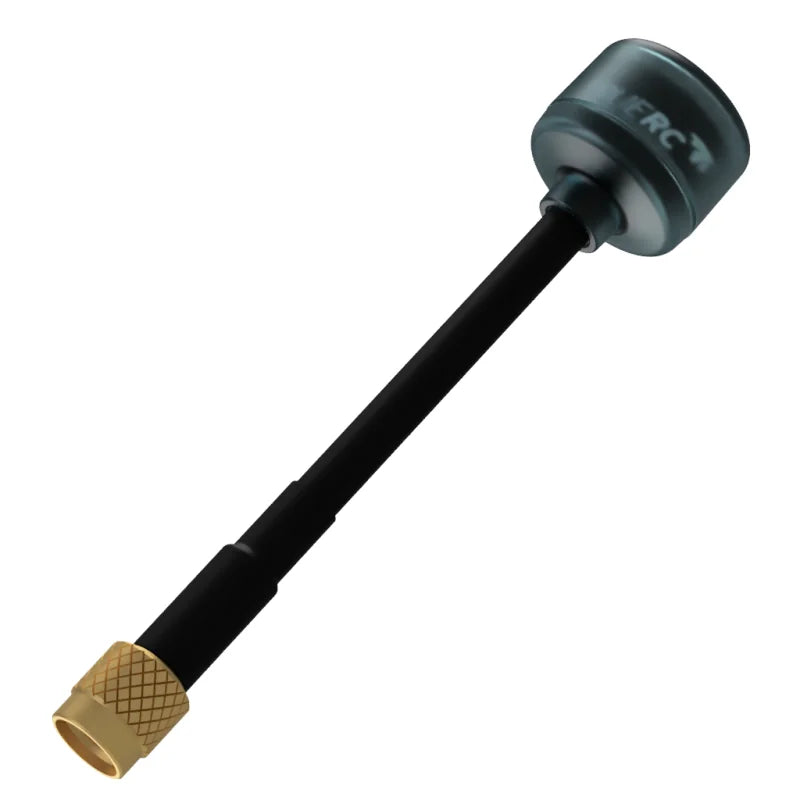

TrueRC CORE 5.8 with reinforced SMA connector — refined omnidirectional CP antenna with durable polycarbonate housing. 1.9 dBic, 5.5–6.7GHz. Available in SMA or SMA-90°, RHCP or LHCP.

Specifications

• Gain: 1.9 dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: −10 to −20 dB
• Bandwidth: 5.5GHz–6.7GHz
• Radiation Efficiency: 98%
• SWR: ≤1.2:1
• Weight: Varies with cable option
• Dimensions (head): 1 6.9mm dia. × 13.1mm height
• Length: Varies with cable option
• Connector: MMCX or angled MMCX
• Frequency (GHz): 5.8

• Type of polarization: Circular polarization

• Cable: TrueRC RG402 Semi-Flex

• Connector: Reinforced SMA

What's included:

TrueRC CORE 5.8 - SMA:
1x -  TrueRC CORE 5.8 - SMA
