TrueRC CORE 5.8 - MMCX

TrueRC CORE 5.8 - MMCX

SKUs:
RHCP:
85mm: 0608597255256
85mm w/90º: 0608597255270
125mm w/90º: 0608597255294

LHCP:
85mm: 0608597255263
85mm w/90º: 0608597255287
125mm w/90º: 0608597255300

Manufactured in Canada

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

TrueRC CORE 5.8 - MMCX

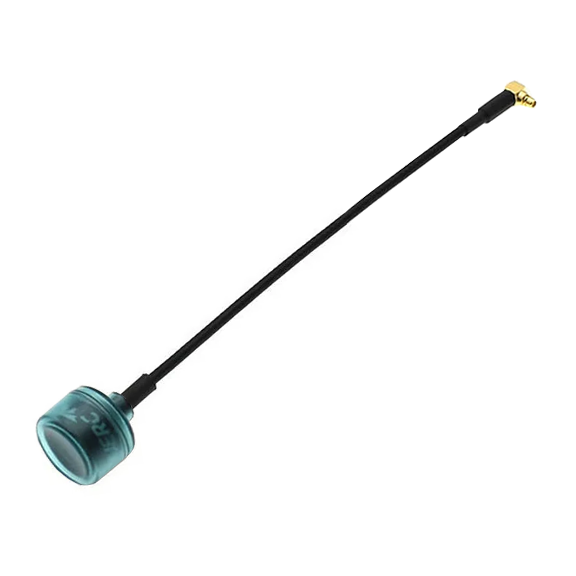

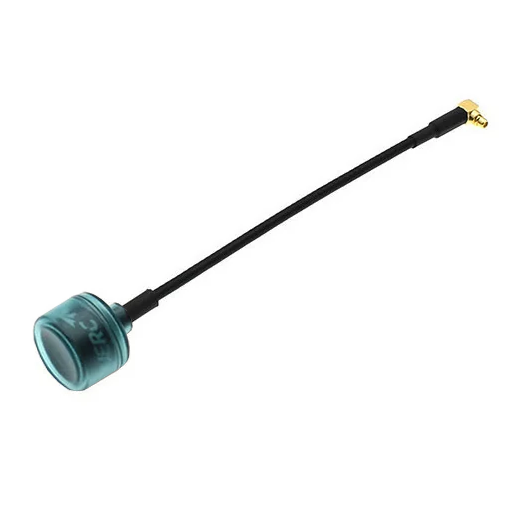

TrueRC CORE 5.8 with MMCX connector — refined omnidirectional CP antenna with durable polycarbonate housing. 1.9 dBic, 5.5–6.7GHz. Available straight or angled MMCX, RHCP or LHCP.

Specifications

• Gain: 1.9 dBic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: −10 to −20 dB
• Bandwidth: 5.5GHz–6.7GHz
• Radiation Efficiency: 98%
• SWR: ≤1.2:1
• Weight: Varies with cable option
• Dimensions (head): 1 6.9mm dia. × 13.1mm height
• Length: Varies with cable option
• Connector: MMCX or angled MMCX
• Frequency (GHz): 5.8

• Type of polarization: Circular polarization

• Compatibilities: Herelink, Herelink Blue, DJI FPV V1, etc.


What's included:

TrueRC CORE 5.8 - MMCX:
1x -  TrueRC CORE 5.8 - MMCX
