Triumph Crossfire Diversity Nano RX

Triumph Crossfire Diversity Nano RX - FPV LONG RANGE DRONE RECEIVER

SKU: xf-nanorx-diversity

Manufactured in U.S.A

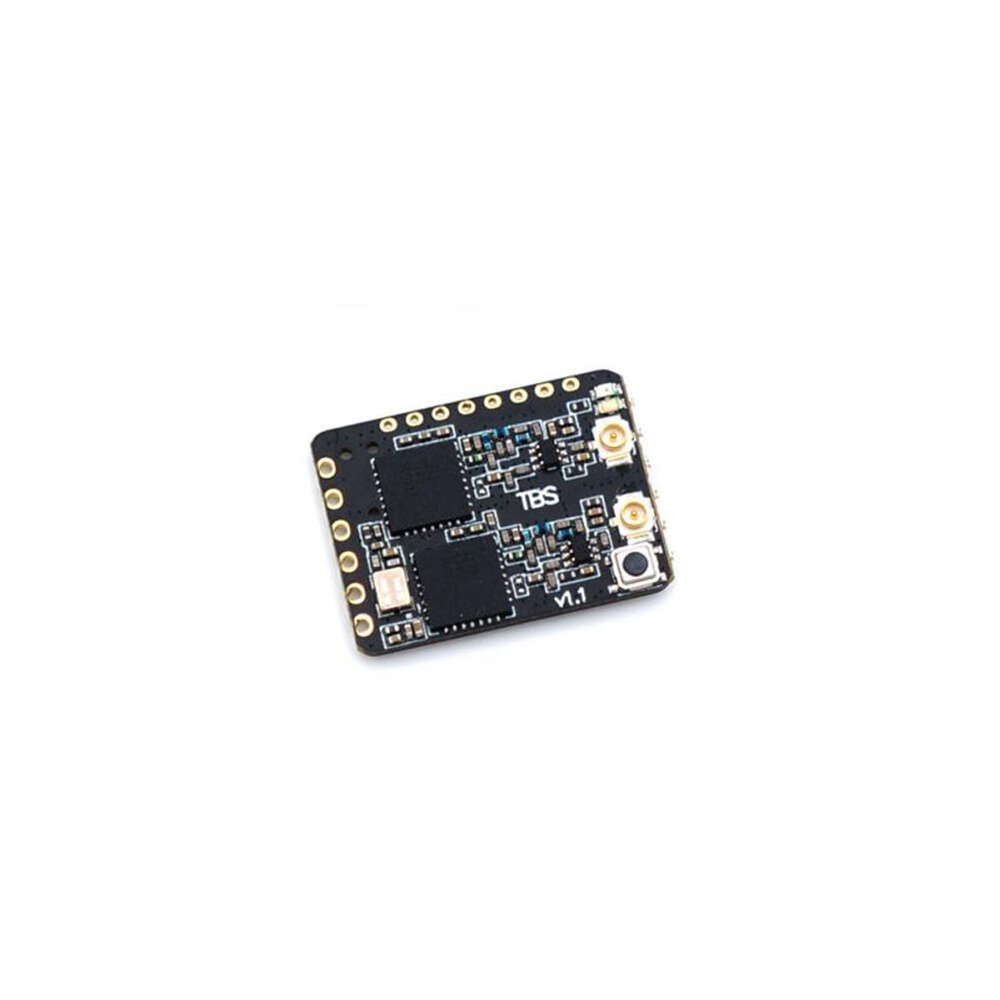

A full-capability Triumph Crossfire Diversity receiver in nano form factor. Ideal for long range miniquads or smaller wings.

TRUE DIVERSITY, FULL RANGE

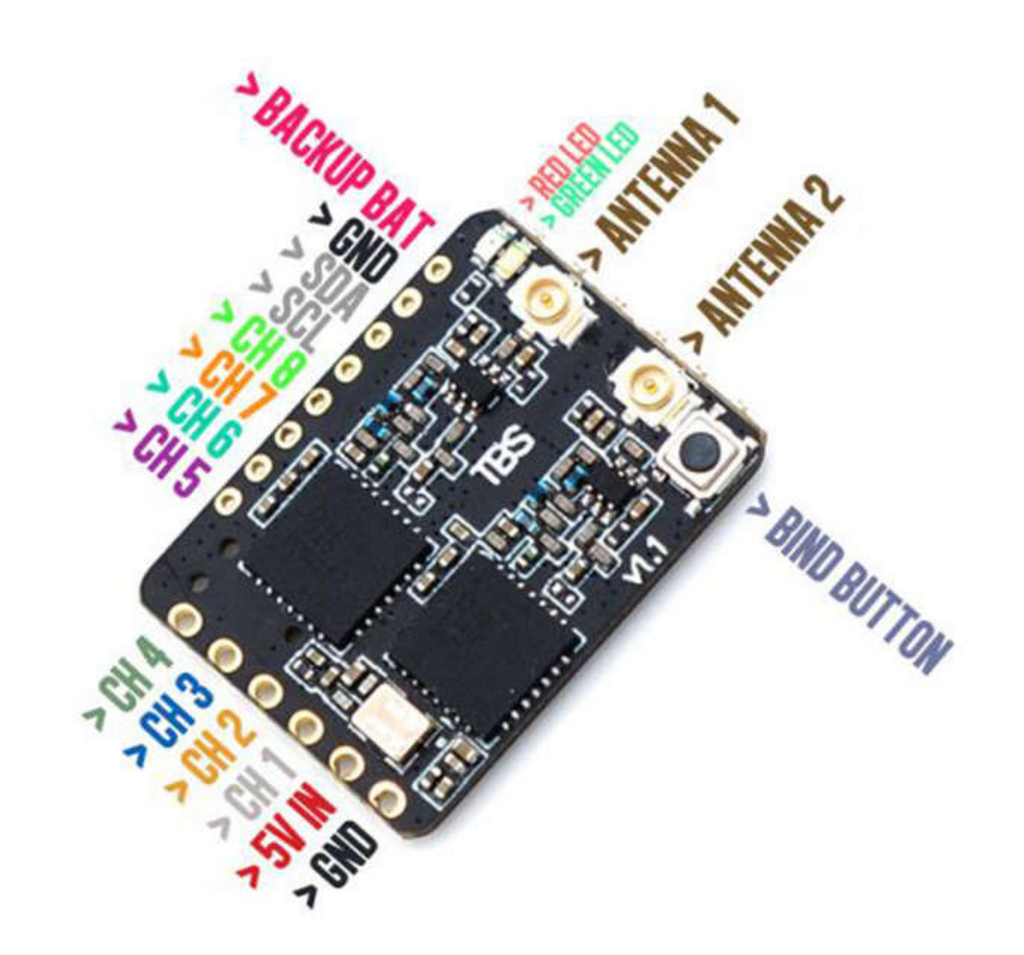

The Triumph CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.

BEACON MODE

Ever lost a plane and spent hours looking for it? Enter the Triumph CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane. The backup battery (1s) will also be charged as soon as you apply power to the rig.

Features

• Signal format: CRSF
• Frequency Min: 868 MHz
• Frequency Max: 915 MHz
• Input Voltage Min: 3.3 V
• Input Voltage Max: 8.4 V
• Range: 40 km
• Channels: 12
• Output formats: PPM/SBUS/CRSF
• Weight: 1.8 g
• Height: 5 mm
• Width: 18 mm
•  Length: 24 mm


What's included:
Crossfire Diversity Nano RX:
1x - Triumph Crossfire Diversity Nano Receiver - NDAA version
2x - Triumph Crossfire Micro Receiver Antenna
1x - Spare shrink tube
14x 30awg silicon connection wires

For more details, please check the Team Black Sheep official doc:
https://www.team-blacksheep.com/media/files/tbs-crossfire-diversity-nano-quickstart.pdf
