RFD900 VideoLink Modem

Compliant with section 848 of the FY20 NDAA , section 817 of the FY23 NDAA, and the American Security Drone Act, validated as cyber-secure and safe to fly, and are available for government purchase and operation.

*2024 NDAA compliant, all chips and components are sourced and assembled in Allied nations.

Long-Range Video + Telemetry Modem for UAVs and Remote Systems

Two RFD900x modems with antennas for all antenna ports.

The VideoLink Module is RFDesign’s latest innovation, combining our industry-proven long-range telemetry technology with low-latency video streaming in a compact, rugged, and integration-ready package. Designed specifically for UAVs, remote surveillance, and robotic applications, VideoLink enables operators to maintain visual situational awareness far beyond standard Wi-Fi or short-range links.

Tested under demanding conditions, VideoLink reliably transmits video and telemetry at ranges exceeding 5 km, depending on settings and antenna configuration. (Range tested using standard 3 dBi monopole antennas on both ground and air units. Higher ranges may be achievable with directional antennas or optimized configurations.)

Key Features:

• 5+ km Range (Line of Sight, settings, and antenna dependent)
• Real-Time Video Streaming:
  • 264 video compression
  • Video resolutions up to 720p
• Integrated Telemetry + Video Link over MAVLink
• UVC Camera Support: USB Video Class compatible
• Redundant Power Input: Wide input range 6–55V
• 1W RF Output Power, 902–928 MHz, user configurable
• Web-Based Configuration via 2.4GHz Wi-Fi
• PPM / SBUS Passthrough for control signals
• AES Encryption: Hardware-accelerated, up to 256-bit
• Thermal & Overcurrent Protection built-in
• Designed, tested, and built in Australia — NDAA compliant

SKUs: RFD900-Videolink

Manufactured in Australia

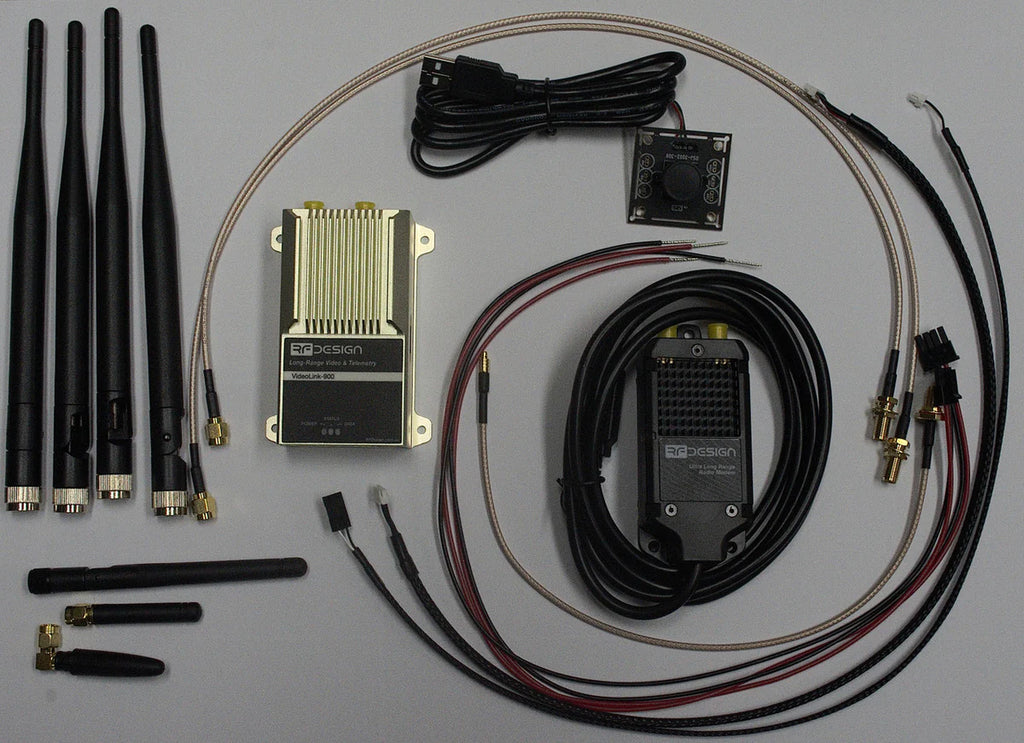

What's included:

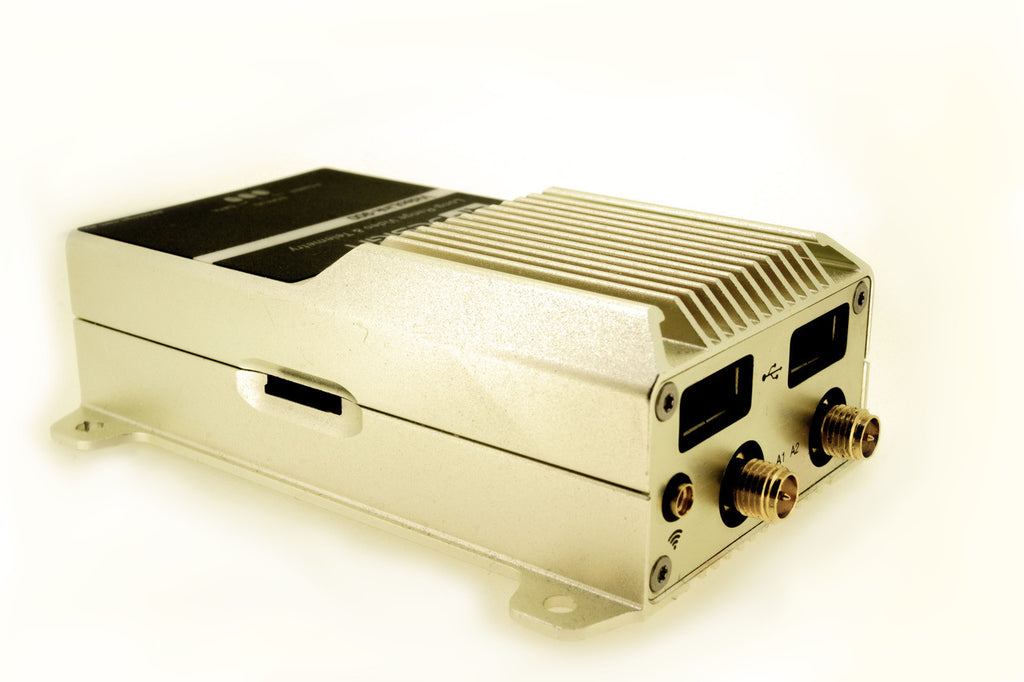

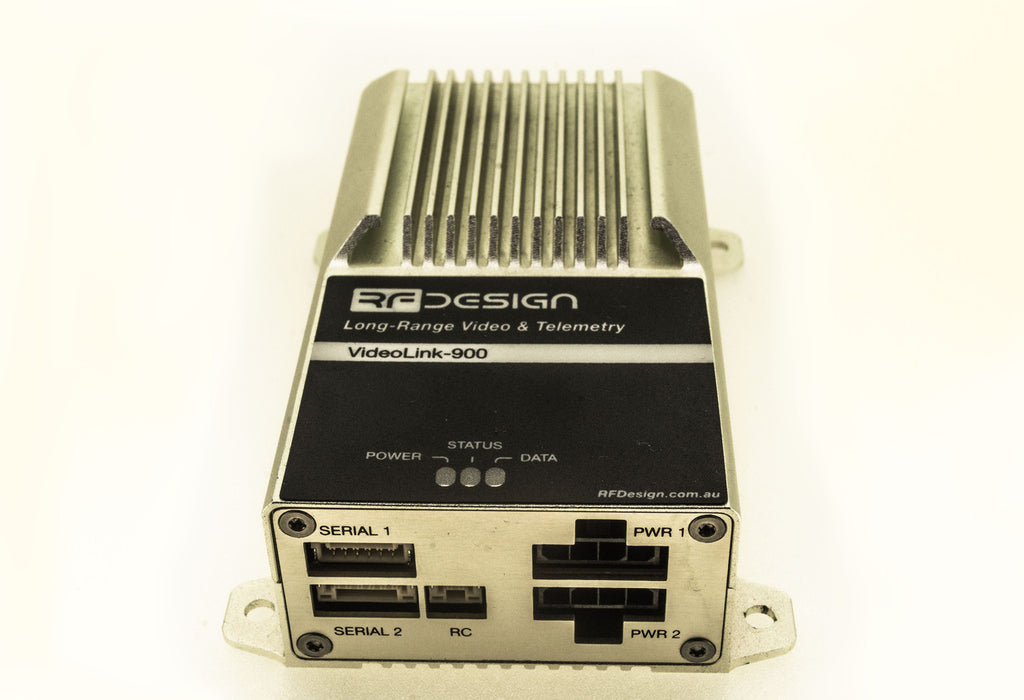

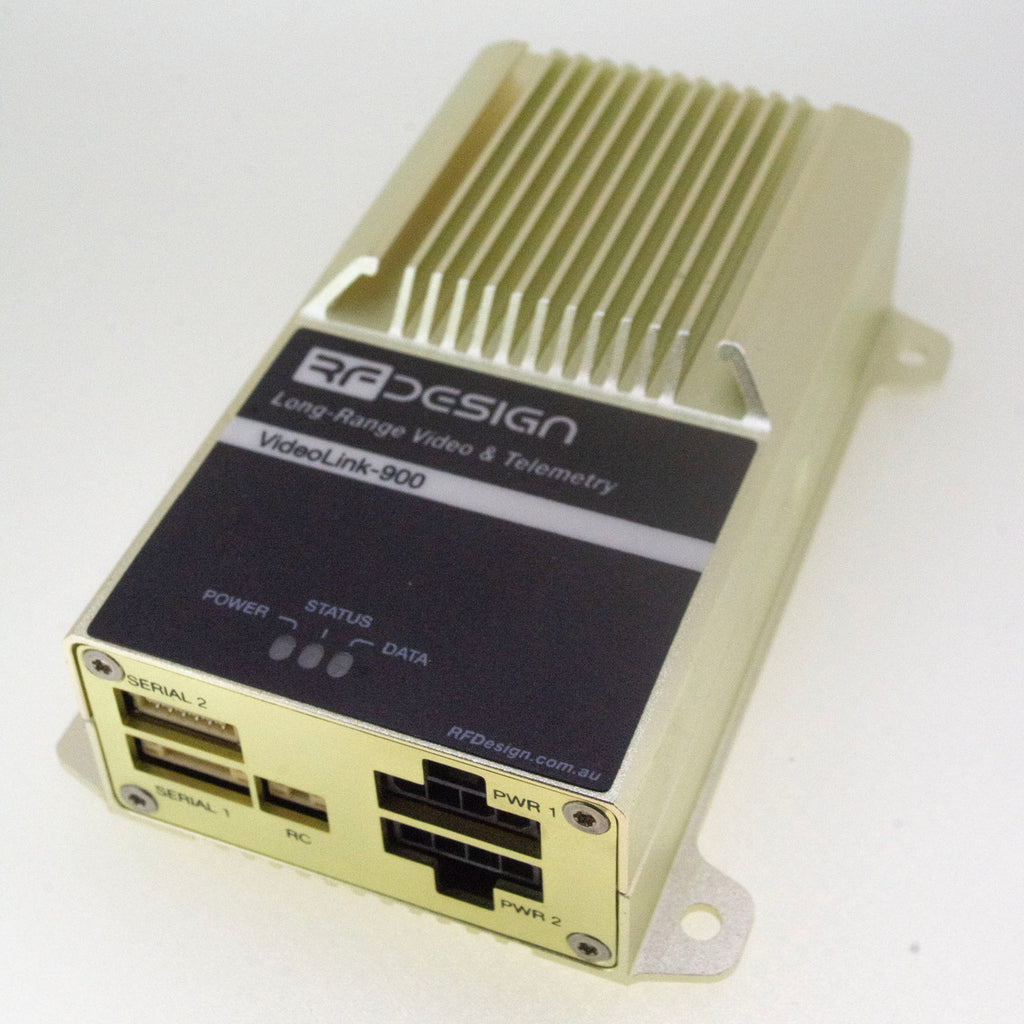

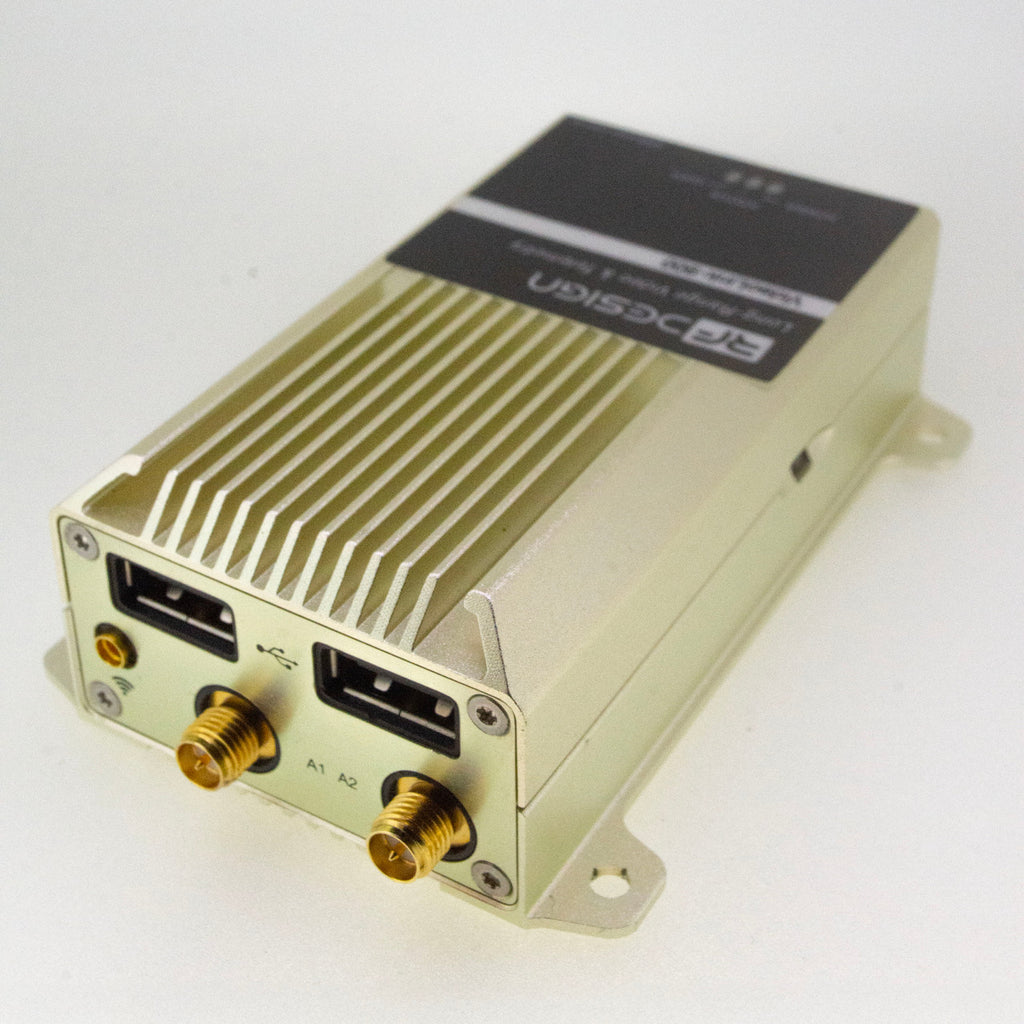

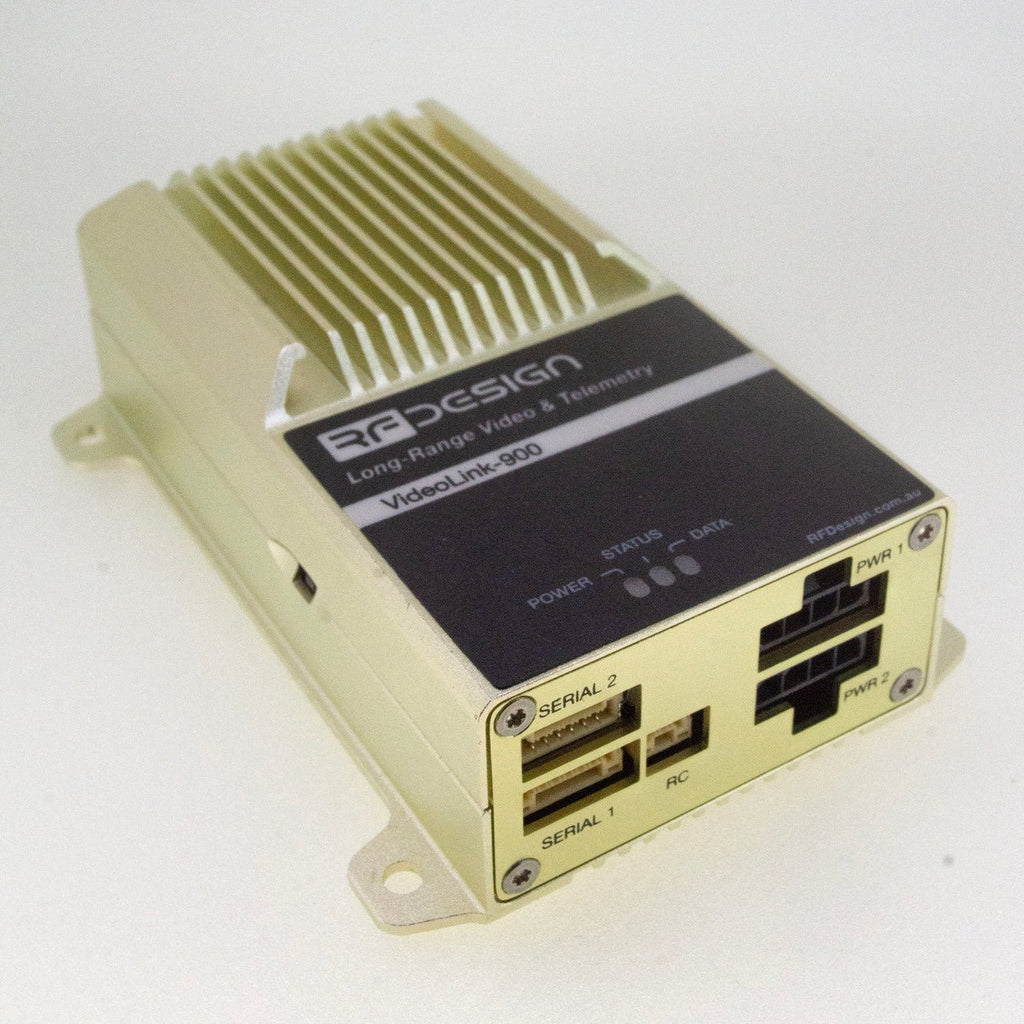

RFD900 VideoLink Modem
1x - VideoLink module
1x - MicroSD card plugged into VideoLink microSD card slot with latest VideoLink firmware
1x - VL RFD900X2 modem and RFD enclosure assembly
1x - DFRobot USB Camera FIT0892
4x - Antennas, 900MHz 3dBi Dipole (RPSMA)
1x - Antenna 868-900MHz Right Angle Quarter Wave 2dBi Monopole (RPSMA)
1x - Antenna 868-900MHz Quarter Wave 2dBi Monopole (RPSMA)
1x - Antenna, 2.4GHz RP-SMA 2dBi Dipole (RPSMA)
1x - FTDI 3.3v Cable (fitted to modem enclosure)
2x - VideoLink Power Cables 500mm
1x - PPM/SBUS Cable 500mm
2x - RP-SMA Extension cable 300mm
1x - Serial Cable Straight Through 500mm
1x - MMCX to Bulkhead RP-SMA RG316 cable 300mm

For more details, please check the RFDesign official doc:
https://rfdx.atlassian.net/wiki/spaces/TS/pages/689831937/RFD+VideoLink
