RFD 900x TXMOD V2 Bundle

RFD 900x TXMOD V2 Bundle

Sku: BUNDLE-RFD900-V2-TXMOD

DoD Blue UAS approved

Compliant with section 848 of the FY20 NDAA , section 817 of the FY23 NDAA, and the American Security Drone Act, validated as cyber-secure and safe to fly, and are available for government purchase and operation.

*2024 NDAA compliant, all chips and components are sourced and assembled in Allied nations.

**Compatibility note:  The TXMOD works with X and UX modems only.

The TXMOD V2 release supports SPORT telemetry data from the vehicle back to the RC transmitter unit.

Designed to work in conjunction with any Radio Controller capable of accepting JR Transmitter Modules, the RFD TX Module can transmit the PPM stream from the controller to the vehicle via the RFD900X long range telemetry modem while also receiving telemetry data received from the aircraft.

The module's built in WiFi link allows for simple webpage based configuration and broadcasting of telemetry data to a computer or smart device.

It is a JR style module that plugs into most RC transmitter that has CAN accept JR style modules (Frsky Taranis, JR, Frsky Horus, Radio Master TX165).

It provides a bridge between the RC transmitter and aircraft while carrying RC PPM data and mavlink telemetry streams at the same time.

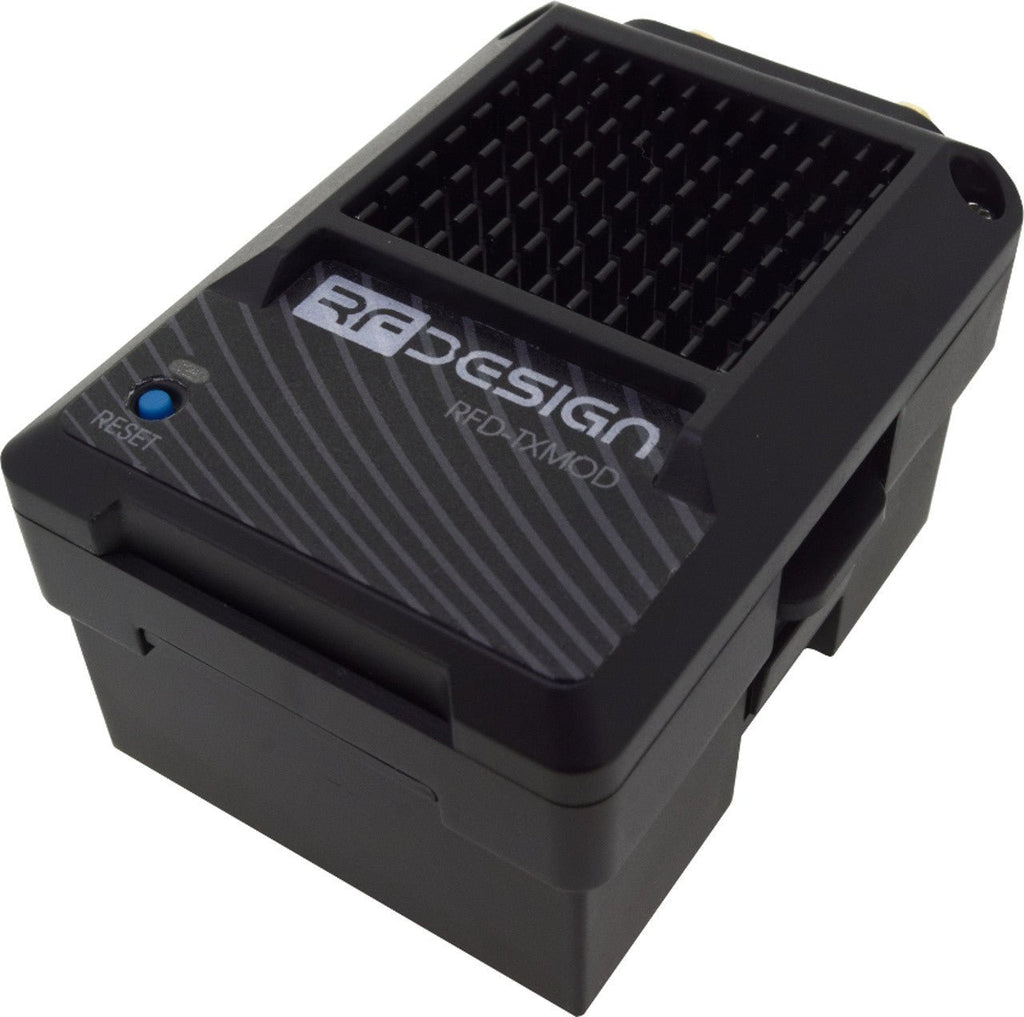

The front label of the TXMOD v2.0 indicates the current series.

The label on the back of the TXMOD v2.2  indicates the exact hardware configuration inside the TXMOD.

The rear label with RFD900x V2.0 text identifies the internal RFD900x modem.

- Long range >40km depending on antennas and GCS setup
- 2 x RP-SMA RF connectors, diversity switched
- 1 Watt (+30dBm) transmit power
- License free use in Australia, Canada, USA, NZ
- Frequency Range:  902-928MHz frequency band

SKUs: MODEM-RFD900x / RF003

Manufactured in Taiwan

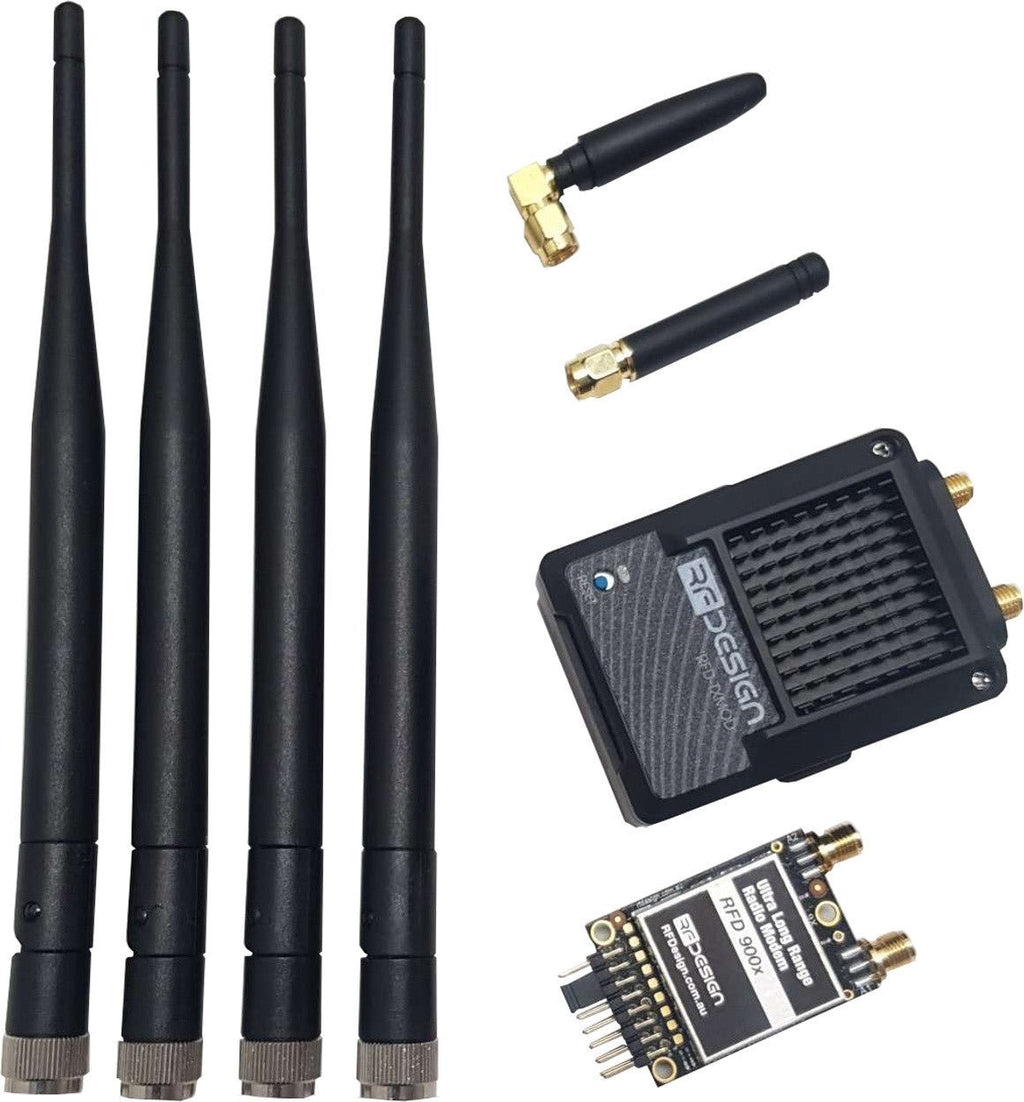

What's included:

RF003 RFD 900x Bundle for CubePilot
1x - RFD900x Radio Modem with new version v3.01 or later firmware
1x - RFD TXMOD
1x - Antenna, 868-900MHz Quarter wave monopole 2.1dBi
4x - Antenna, 868-900MHz Right Angle Quarter wave monopole 2.1dBi
1x - Antennas, 868-900MHz Half wave dipole 3dBi

For more details, please check the RFDesign official doc:
http://files.rfdesign.com.au/Files/documents/RFD900x%20DataSheet.pdf
