SKU: NWB-PROH757
>> Shipping in late June - early July <<
Compliance
✅ NDAA Compliant
✅ Blue UAS Framework Listed
This product is Blue UAS Certified.
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
Manufactured in U.S.A

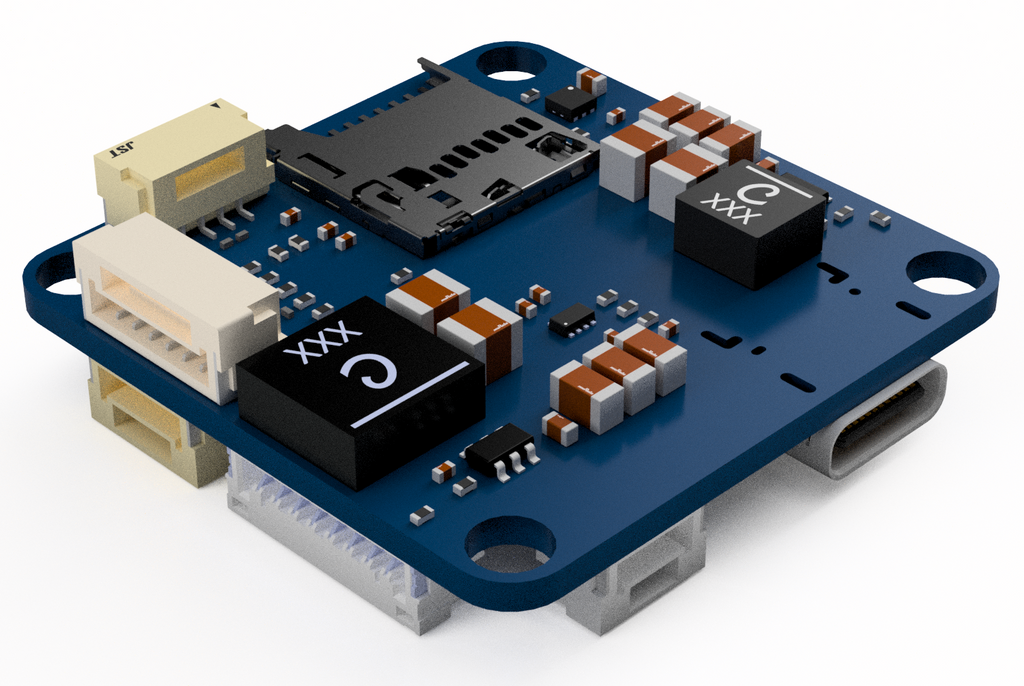

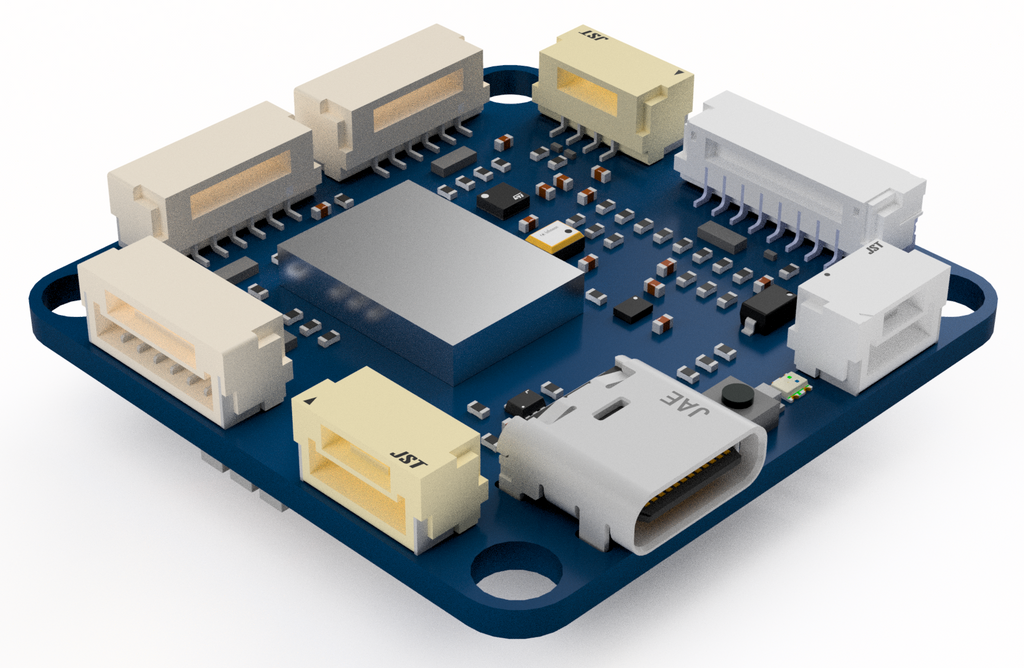

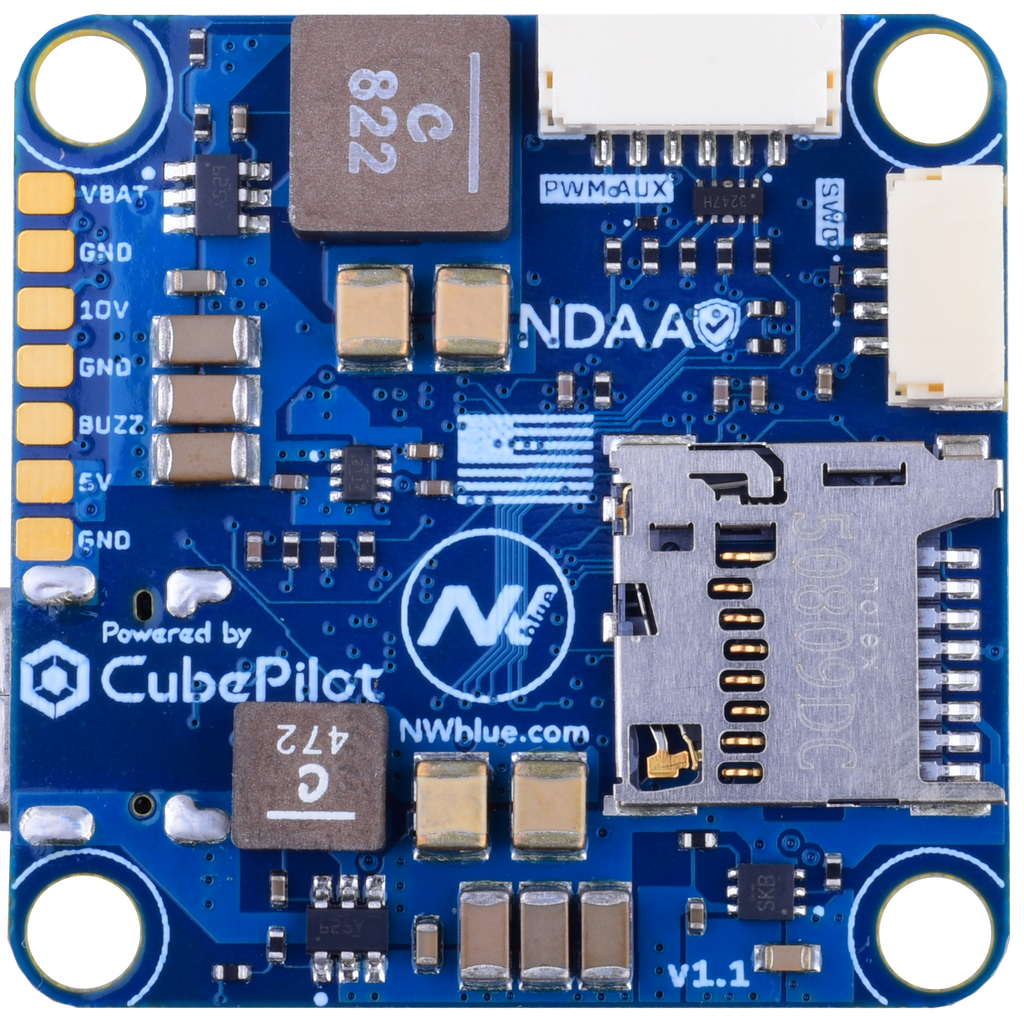

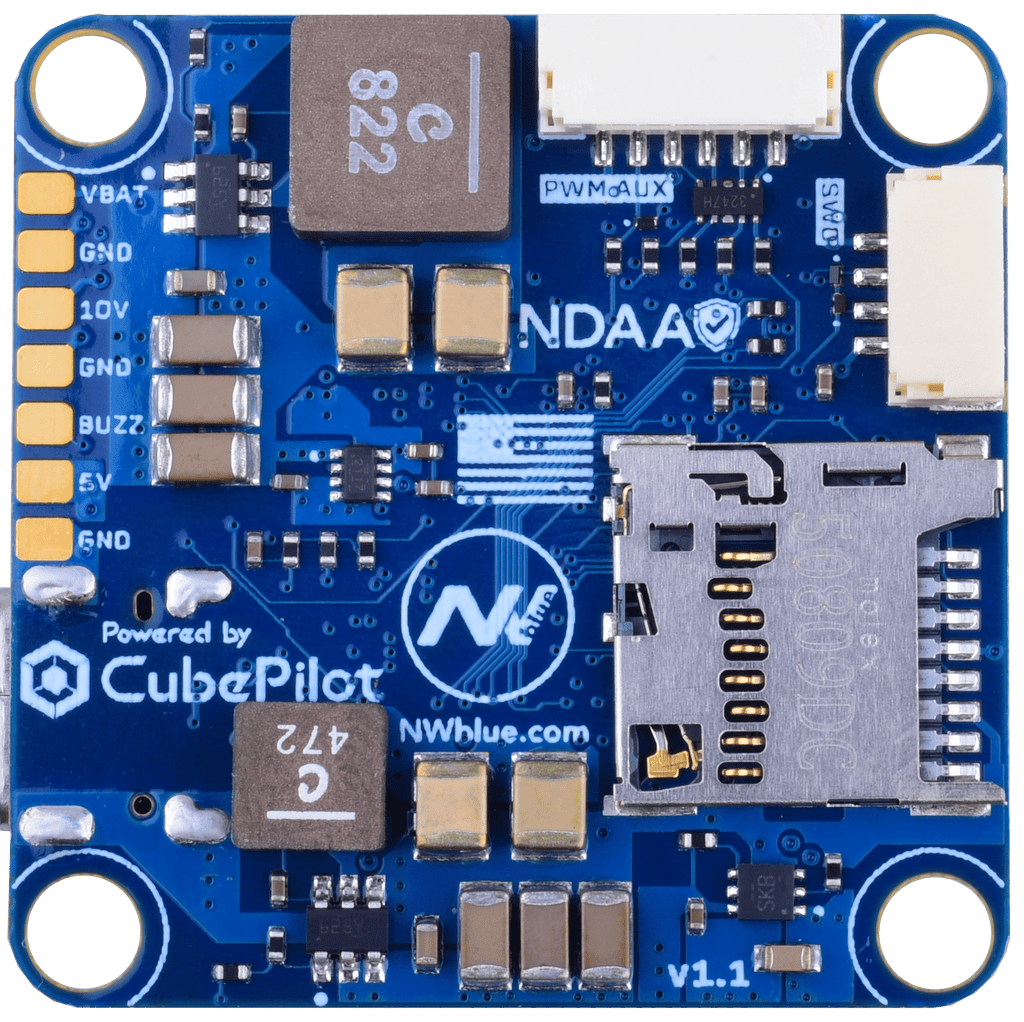

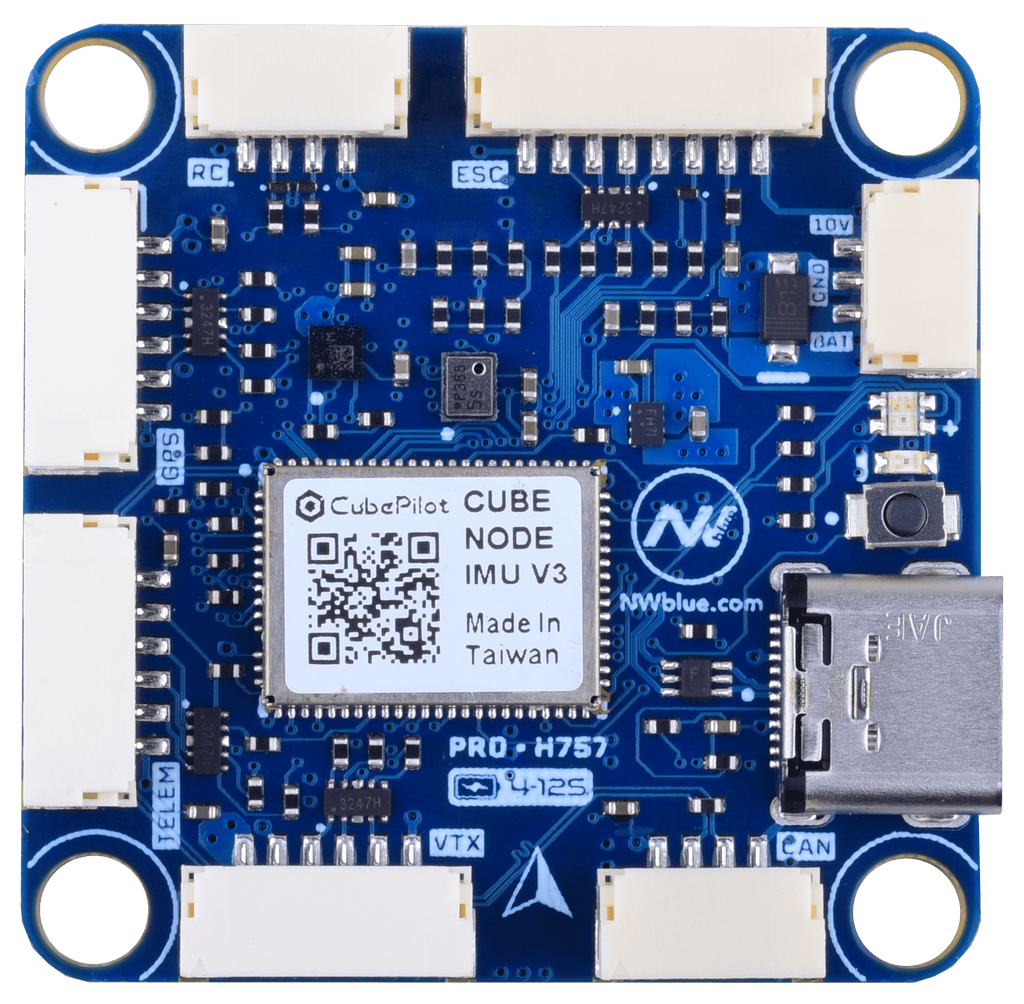

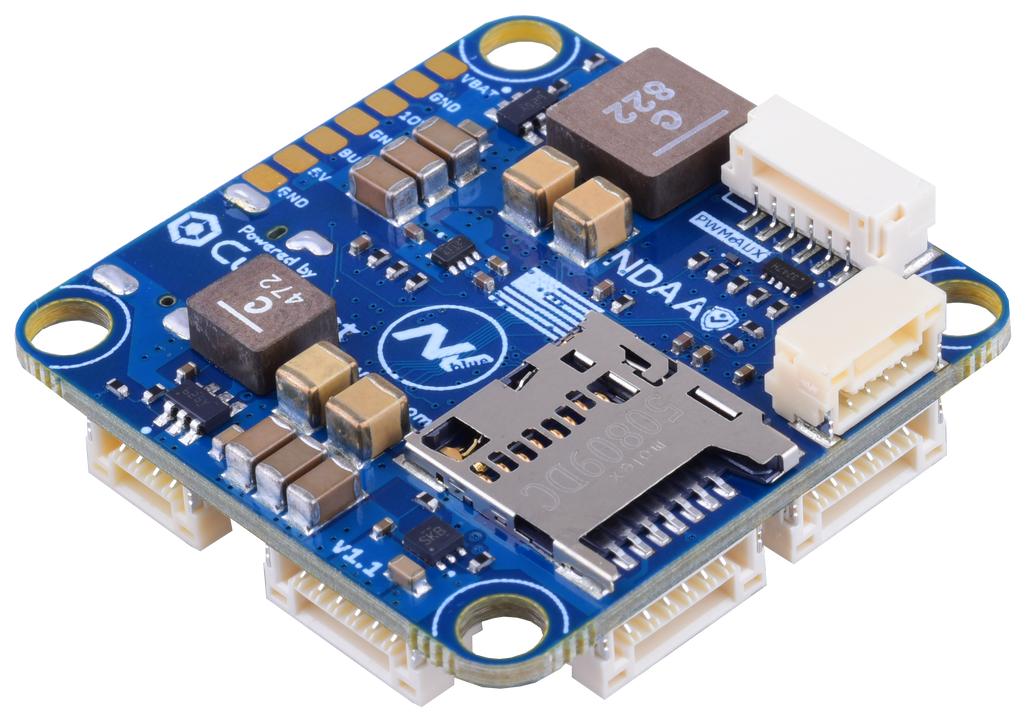

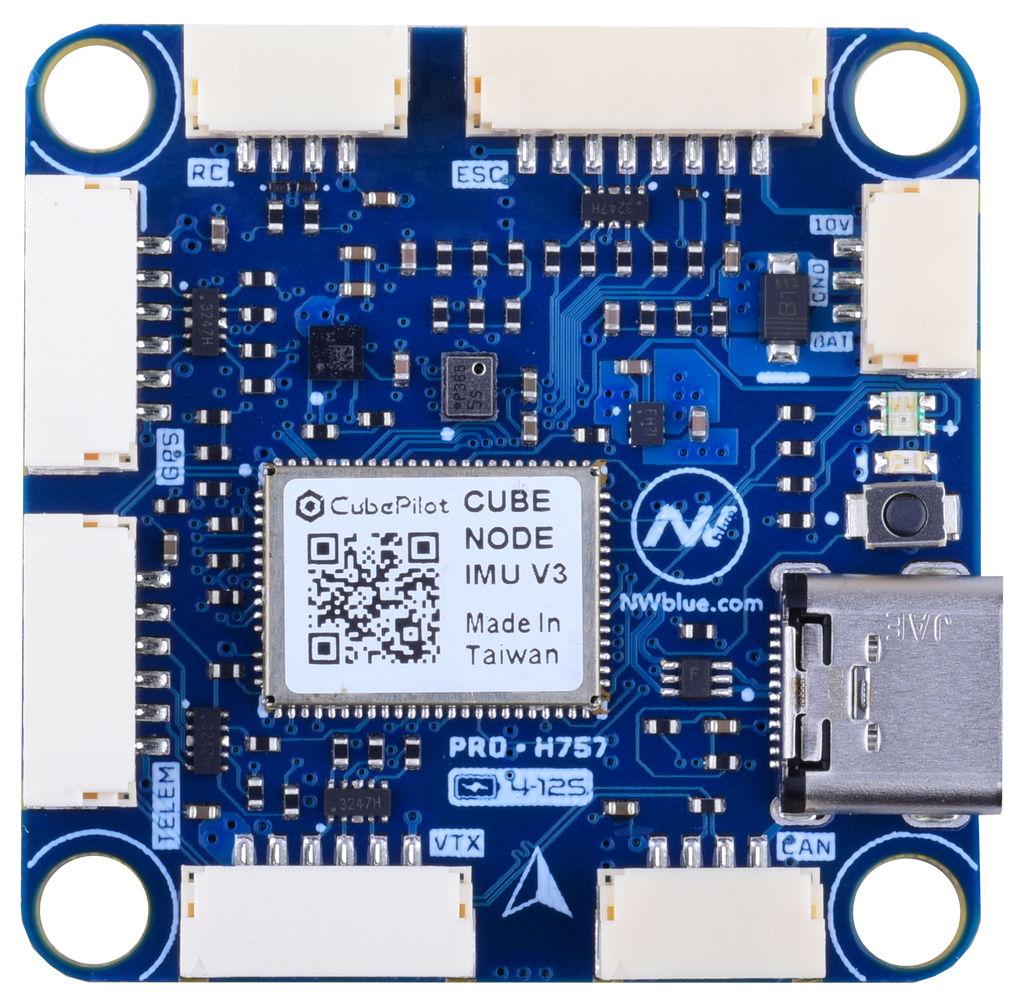

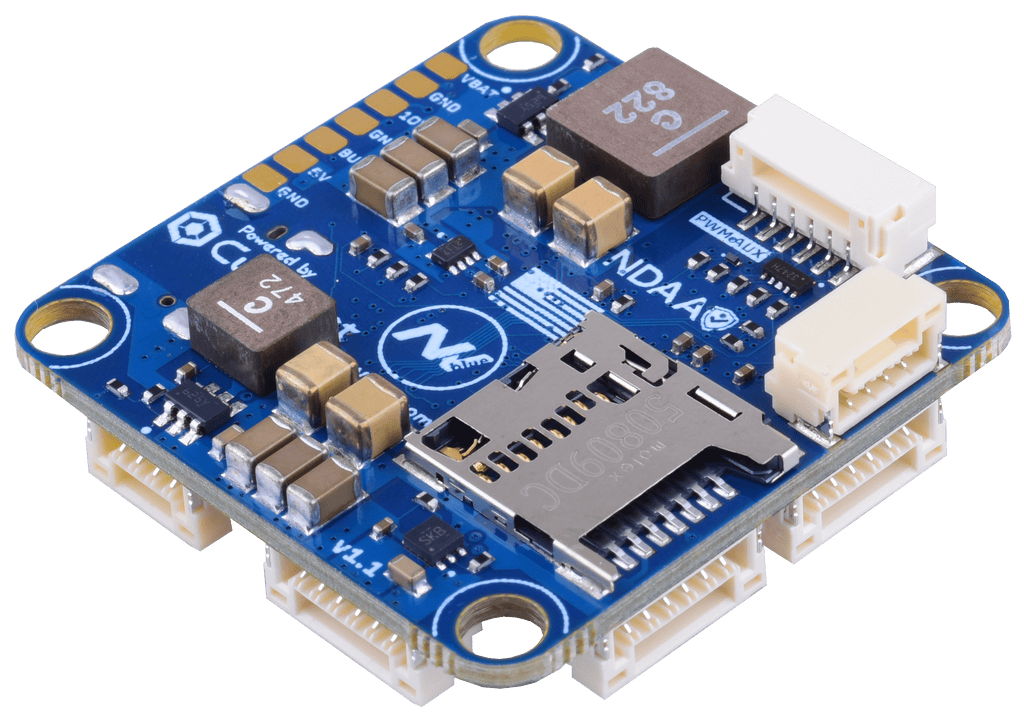

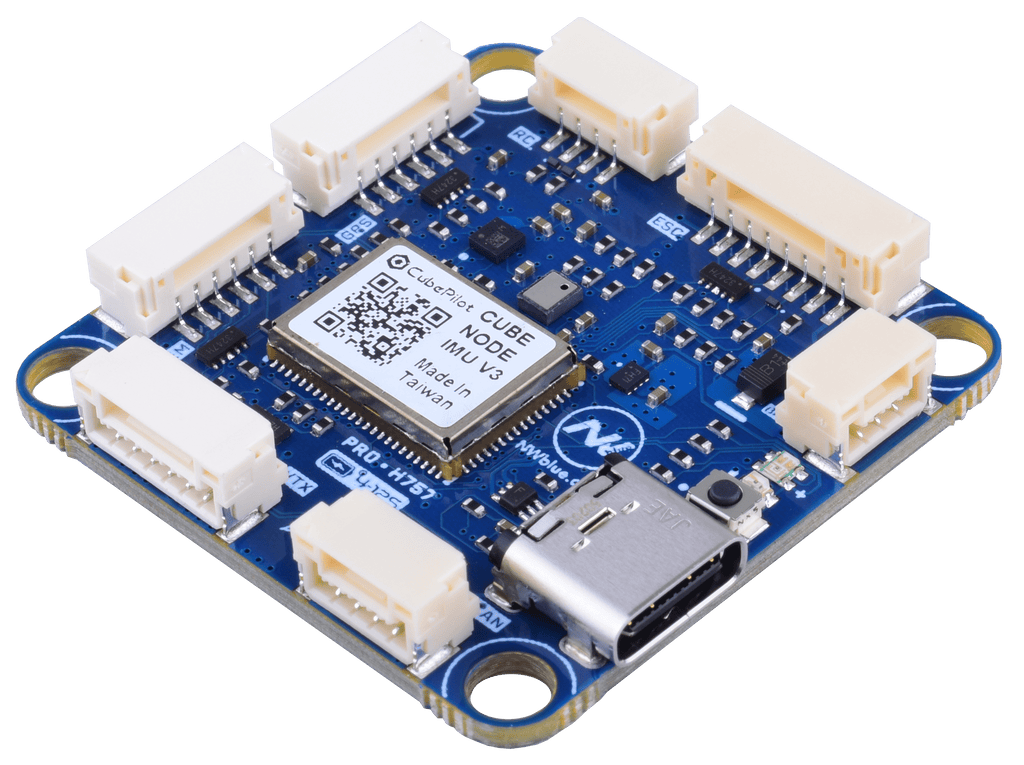

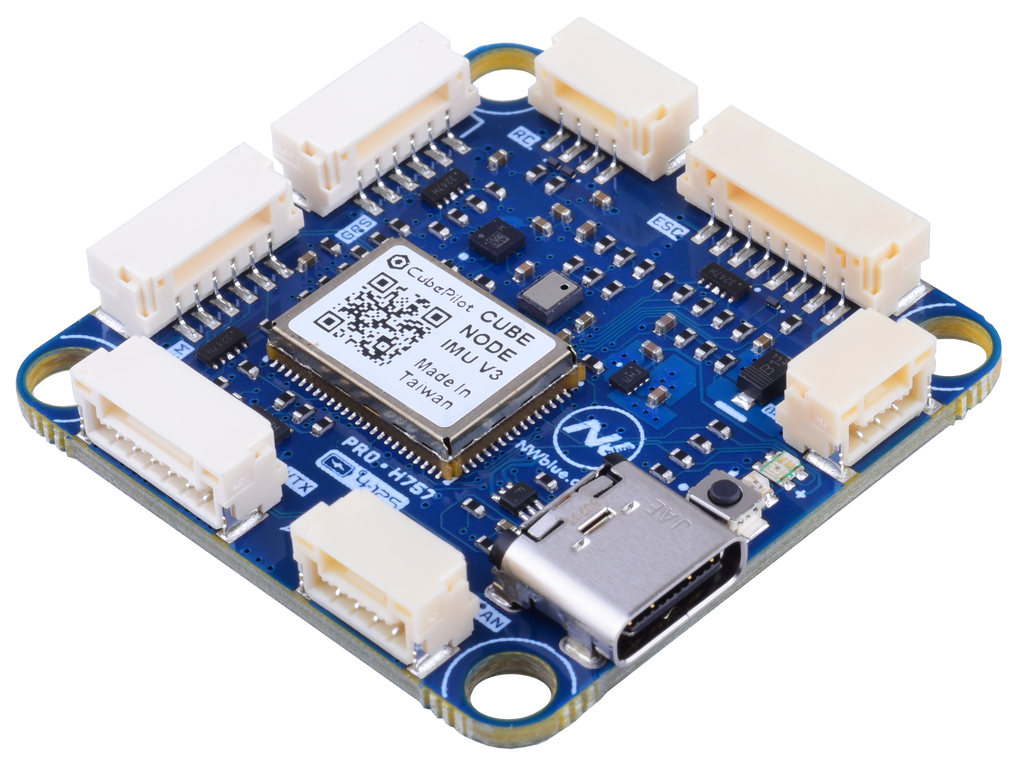

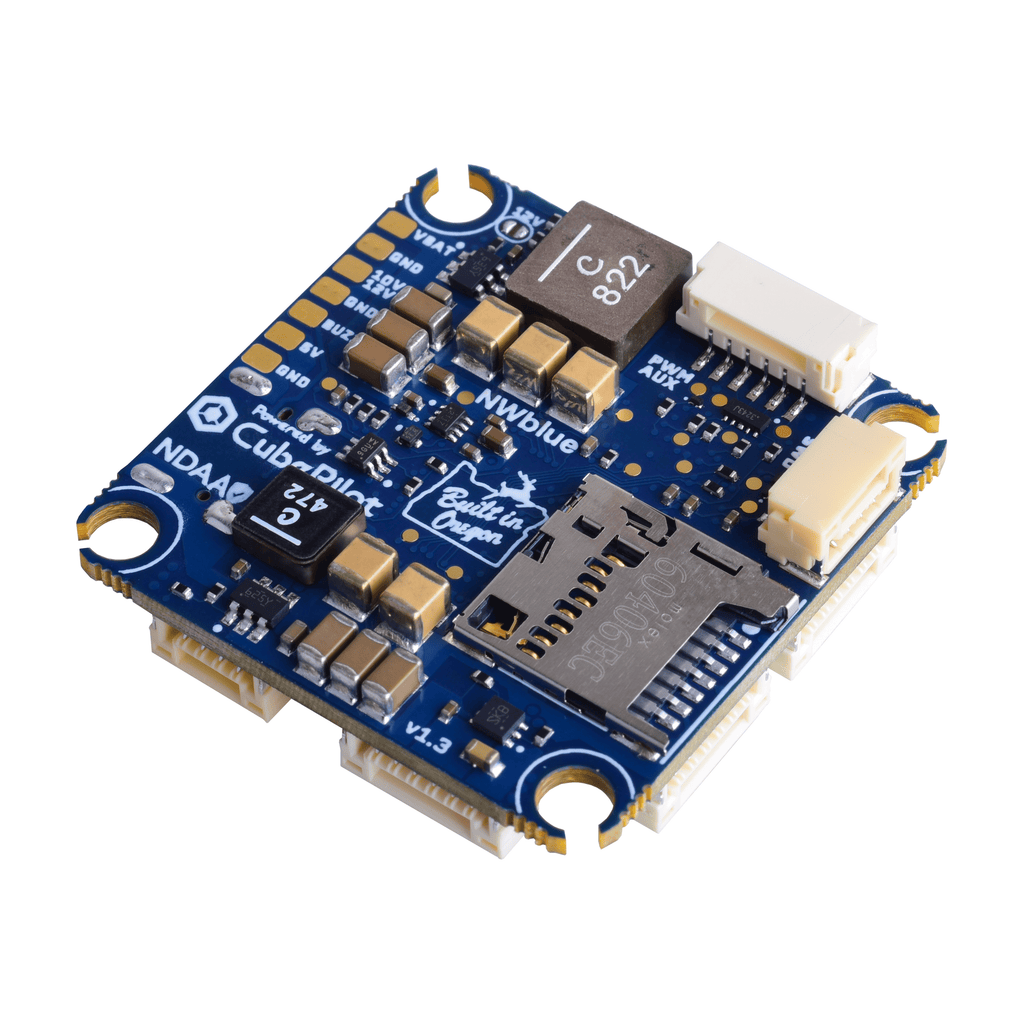

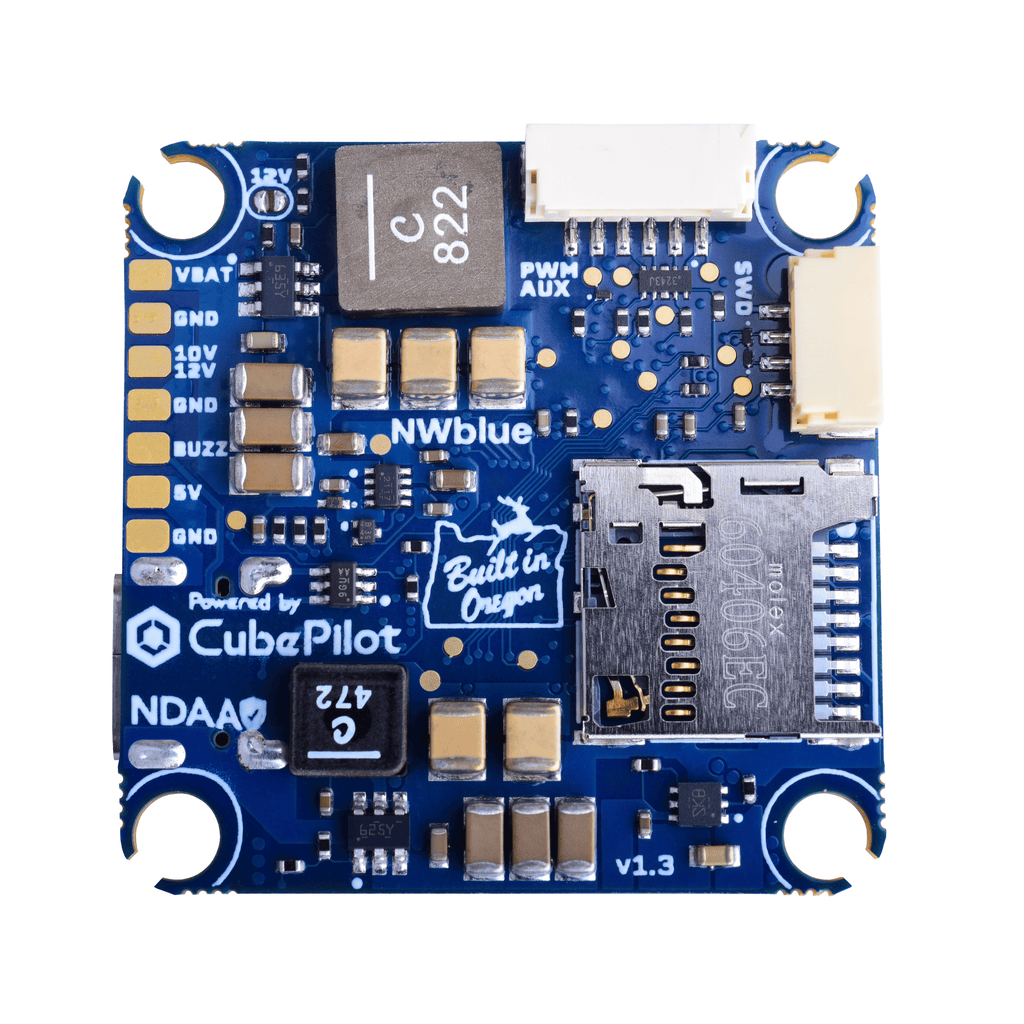

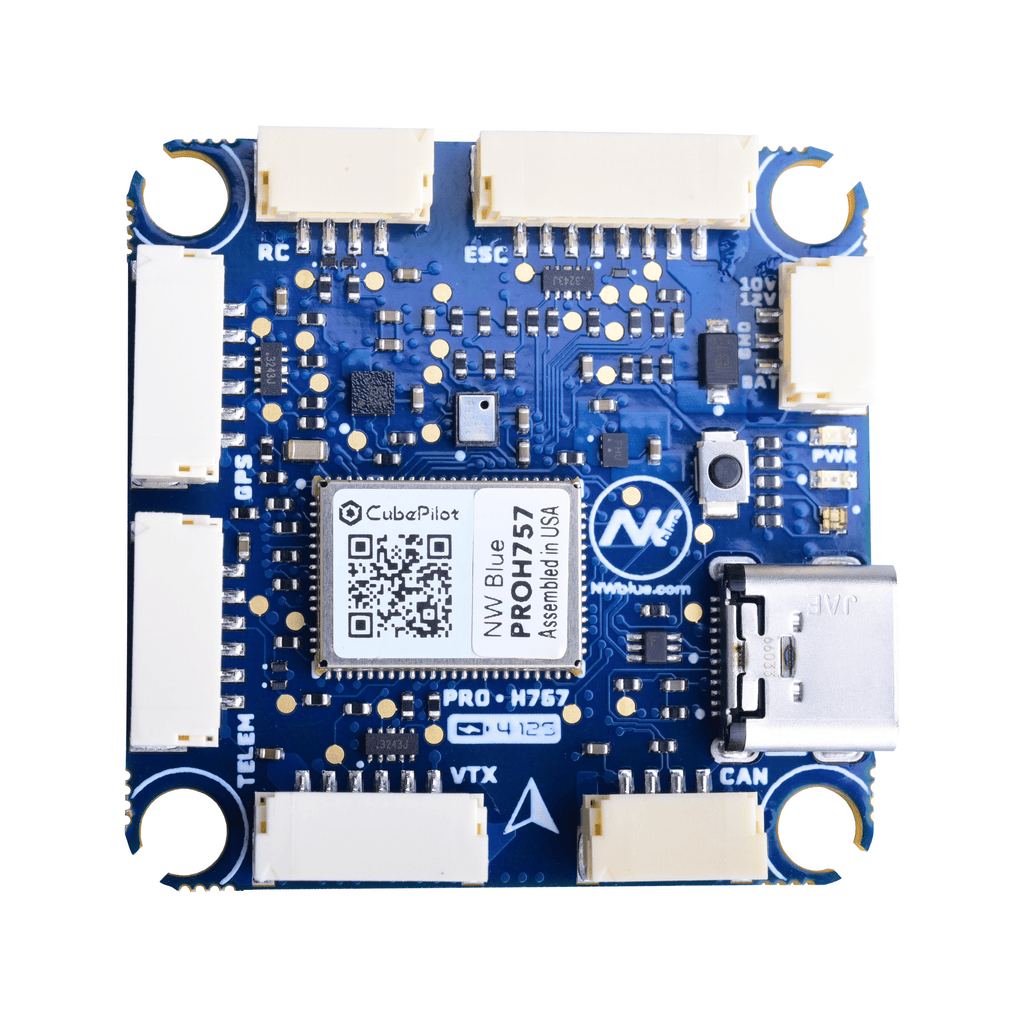

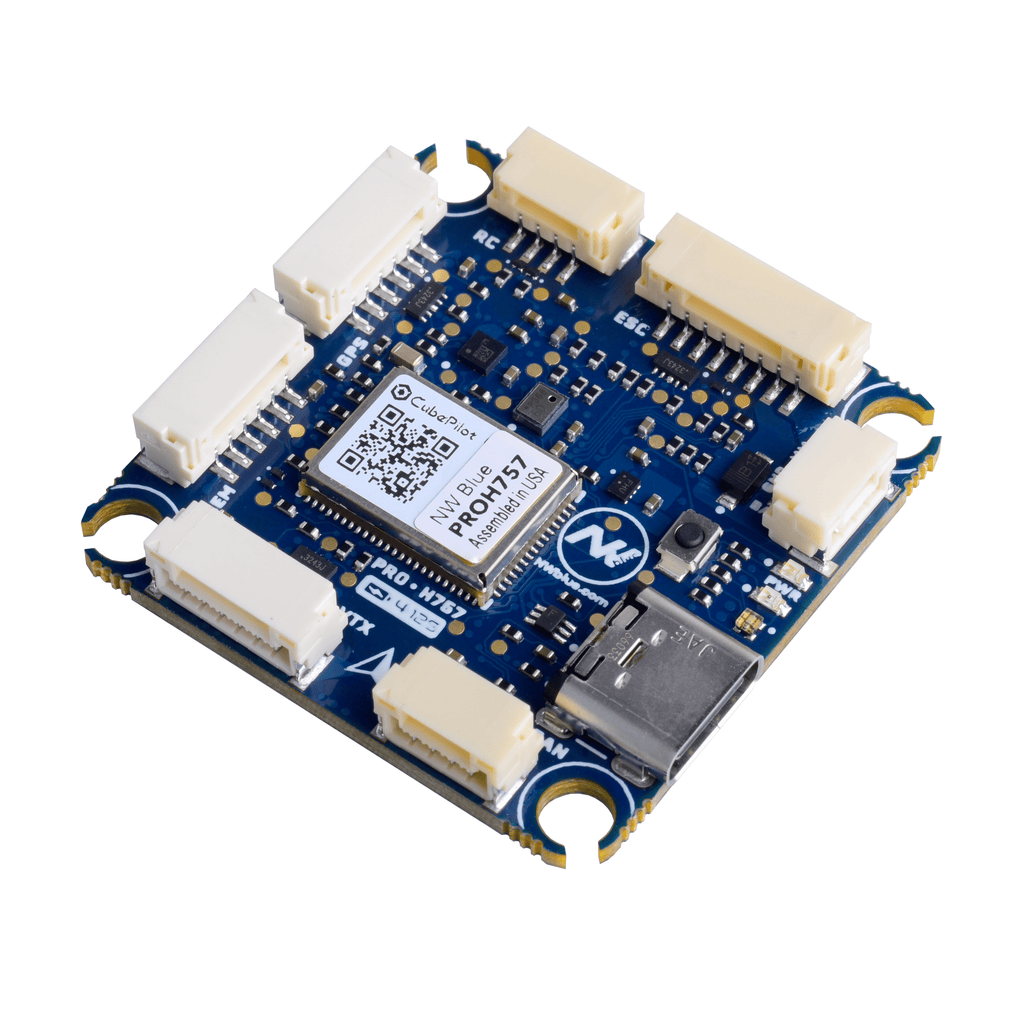

The NW Blue PRO-H757 is a professional grade autopilot that is equipped with the robust processing power of the CubePilot Orange+ through the use of the CubeNode™. With automotive grade components and the proven industry track record of CubePilot, the NW Blue PROH757 autopilot is tiny but mighty and ready to take on the most critical of missions.
As a compact, high-performance flight control platform the NW Blue PRO-H757 was designed for professional UAV systems, Mission systems, and research applications. The autopilot is built around the STM32H7 series processor and integrates a complete set of sensors, high-speed interfaces, and power management features required for modern autonomous flight systems. The architecture was designed for compatibility with leading open autopilot ecosystems including Ardupilot, PX4, Betaflight and INAV.
The autopilot integrates a precision IMU subsystem, magnetometer, barometer, and high-speed data interfaces while maintaining a compact 36 × 36 mm footprint suitable for both aerial robotics and embedded navigation systems. The autopilot includes onboard microSD logging, USB-C connectivity for configuration / firmware updates, and CAN bus connectivity for DroneCAN devices.
Robust electrical design practices were incorporated throughout the PRO-H757 autopilot. External signal lines are protected with low-capacitance ESD diode arrays, and series impedance control is applied to high-speed and externally exposed signals. Power rails include local filtering and monitoring circuits for system voltage, 5V rail, 10V rail, and 3.3V supply, enabling firmware-level health monitoring of the power system.
Features
Processor:
STM32H757 dual core microcontroller
High-performance ARM Cortex-M7 architecture
Multiple SPI, UART, I²C, and CAN peripherals
Sensors:
Invensense ICM45686 IMU
STMicro IIC2MDC Magnetometer
Infineon DPS368 Barometer
Supported Firmware:
Ardupilot, PX4, Betaflight
PWM Outputs:
Up to 9 PWM outputs
Timer-grouped outputs compatible with bidirectional DShot
Compatible with ArduPilot, PX4, and Betaflight ESC protocols
Power System:
Input: 4S to 12S
Outputs: 5V 2.5A (current protected), 10V 2.5A
Indicators:
RGB status LED
Dedicated system status LED
Buzzer output (external components required)
Protection and Signal Integrity:
Low-capacitance ESD diode arrays on external interfaces
Series resistors on exposed signal lines
USB ESD protection
Power rail filtering at external connectors
5V current limiting on solder pad to prevent flight controller brownouts
External Connectivity:
GPS / compass
ESC outputs
Telemetry radios
RC receiver
CAN peripherals
USB configuration and firmware flashing
Visit the docs here: PROH757 Flight Controller
