PDB360[x] - APD PDB

APD products are intended for commercial, institutional, and government use only.

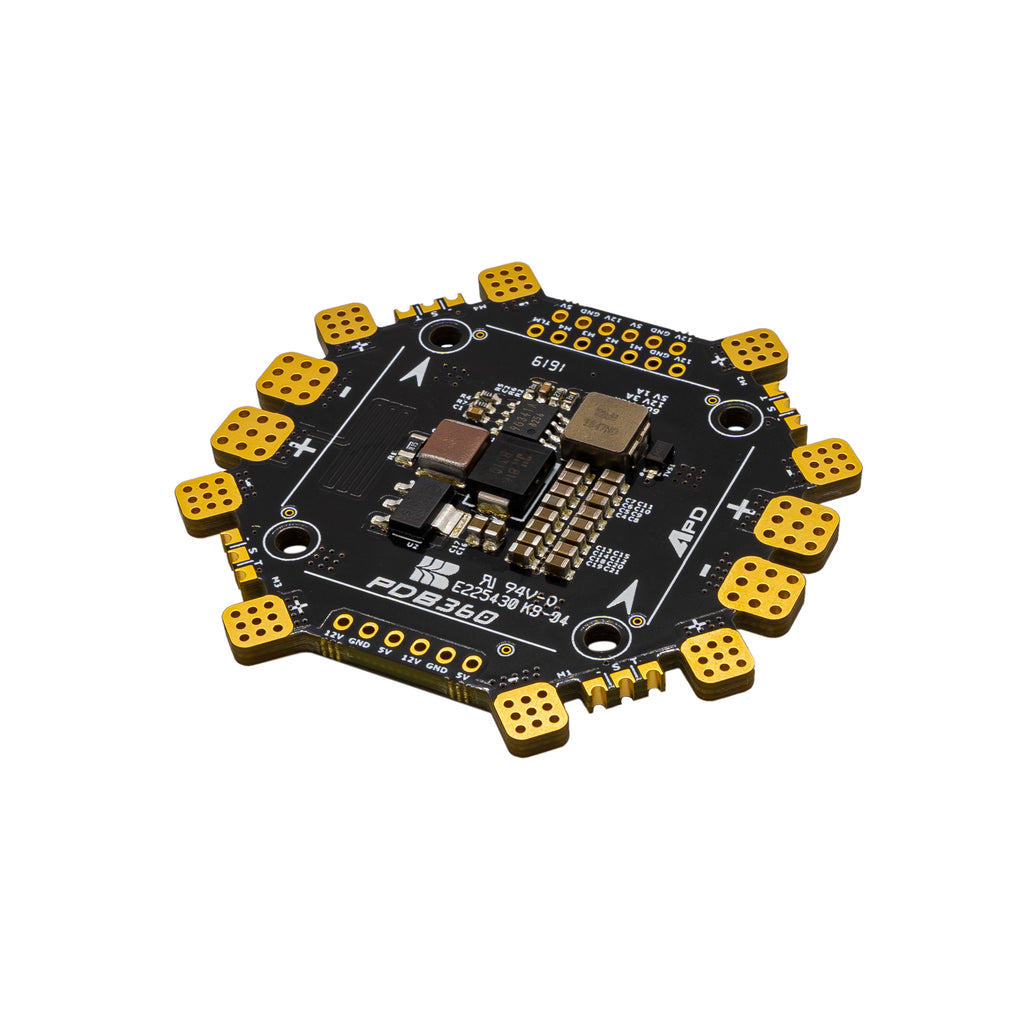

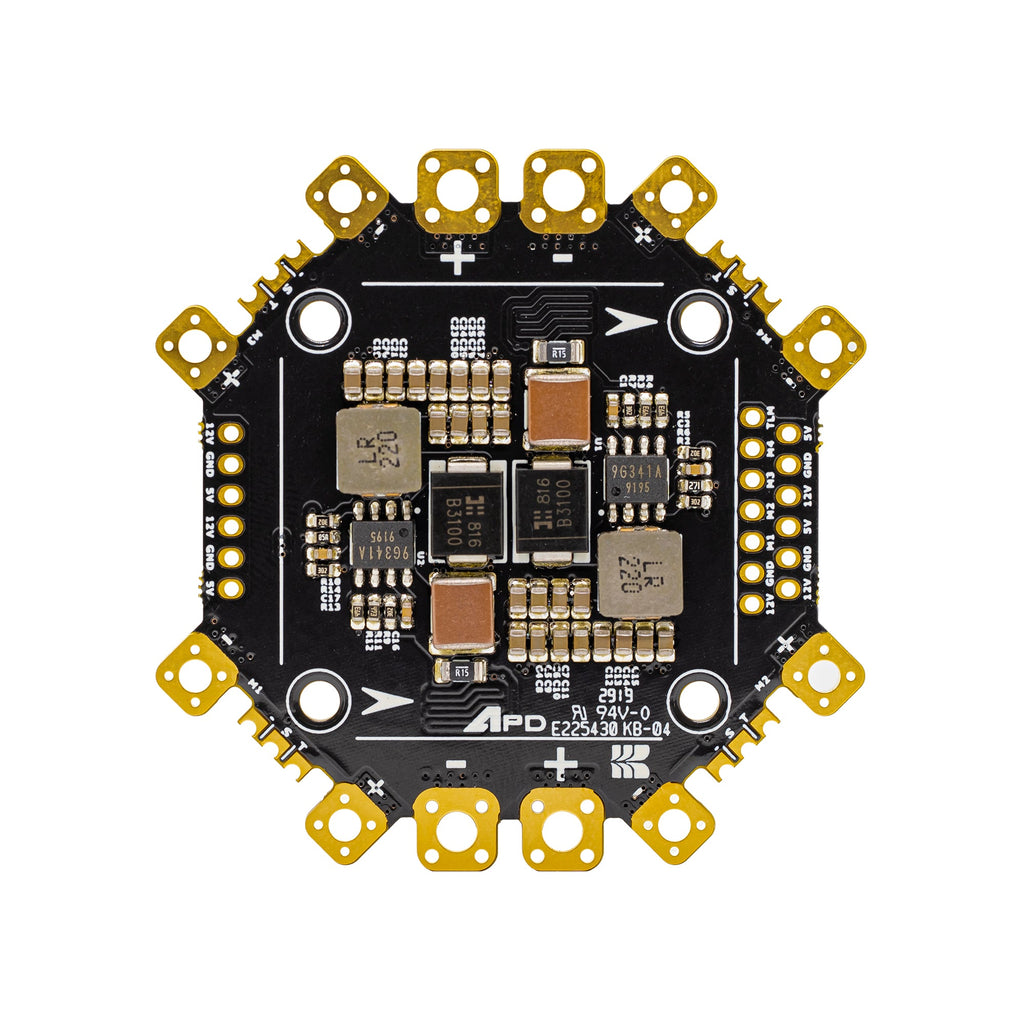

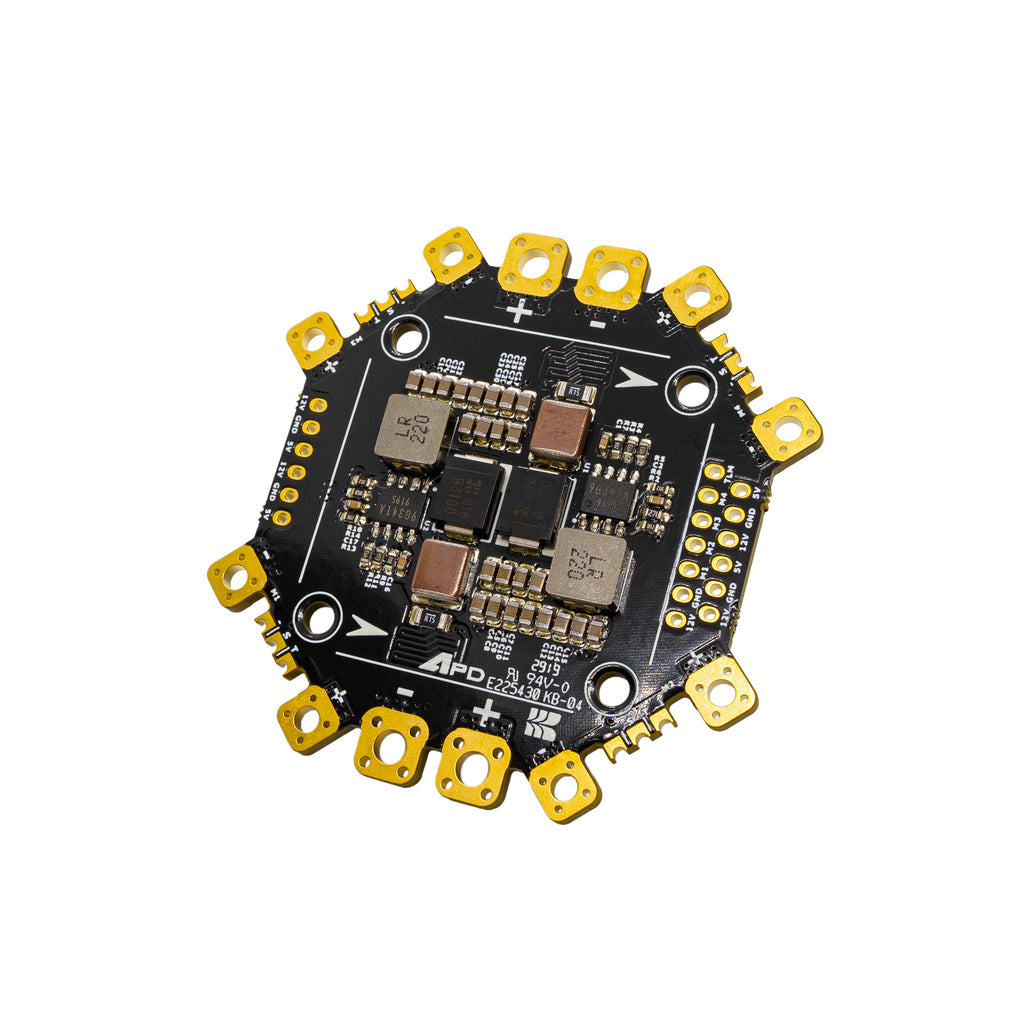

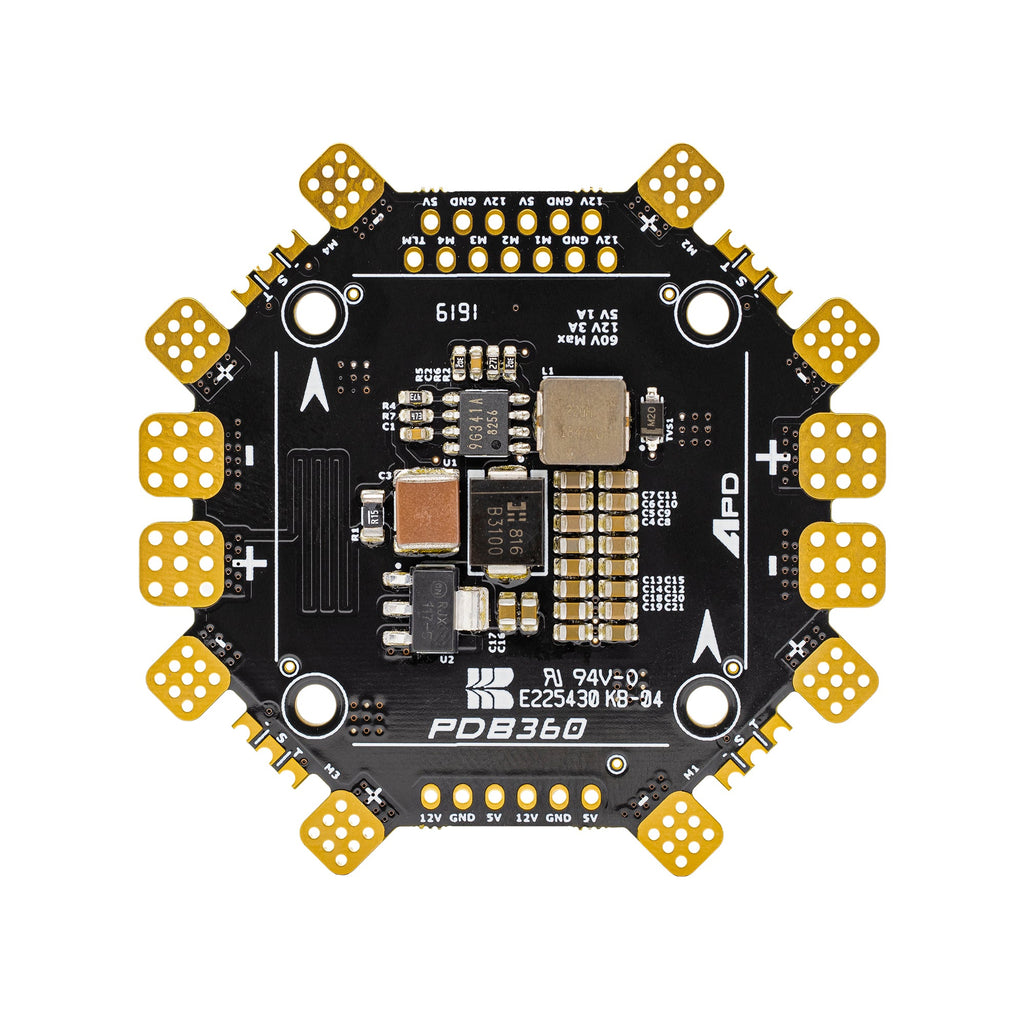

The PDB360 is designed for high voltage and high current applications. It consists of 8 heavy copper layers to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 90 A continuous to each ESC leg. Also features 12 V 3 A and 5V 1 A regulators with a maximum of 8S (34 V) input.

Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB360 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5 mm x 30.5 mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

• 4S-8S input

• 8 Layers of 3 oz copper to each ESC

• 12 V @ 3 A switching regulator

• 5 V @ 1 A linear regulator

• Overcurrent and short circuit protection on the 12 V regulator

• Thermal protection on the 5 V regulator

• Two main power inputs, modular battery

• Thermal relief on all solder tabs to allow for easier soldering

• 2.5 mm thickness for strength and reliability

• 58 mm x 58 mm in size

• PCB rated for 180 °C continuous

• ISOLA 185HR dielectric glass fibre for maximum thermal performance

• Designed and manufactured in Australia

Additional Information
Weight: 0.021kg
Dimensions: 58x58x5mm
Documentation: docs.powerdrives.net
CAD Model: PDB360 CAD Model
