Orqa Ghost Atto 2.4Ghz Receiver Rx

Orqa Ghost Atto 2.4Ghz Receiver Rx

SKUs: 6030

Manufactured in Croatia

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

Orqa Ghost Atto 2.4Ghz Receiver Rx

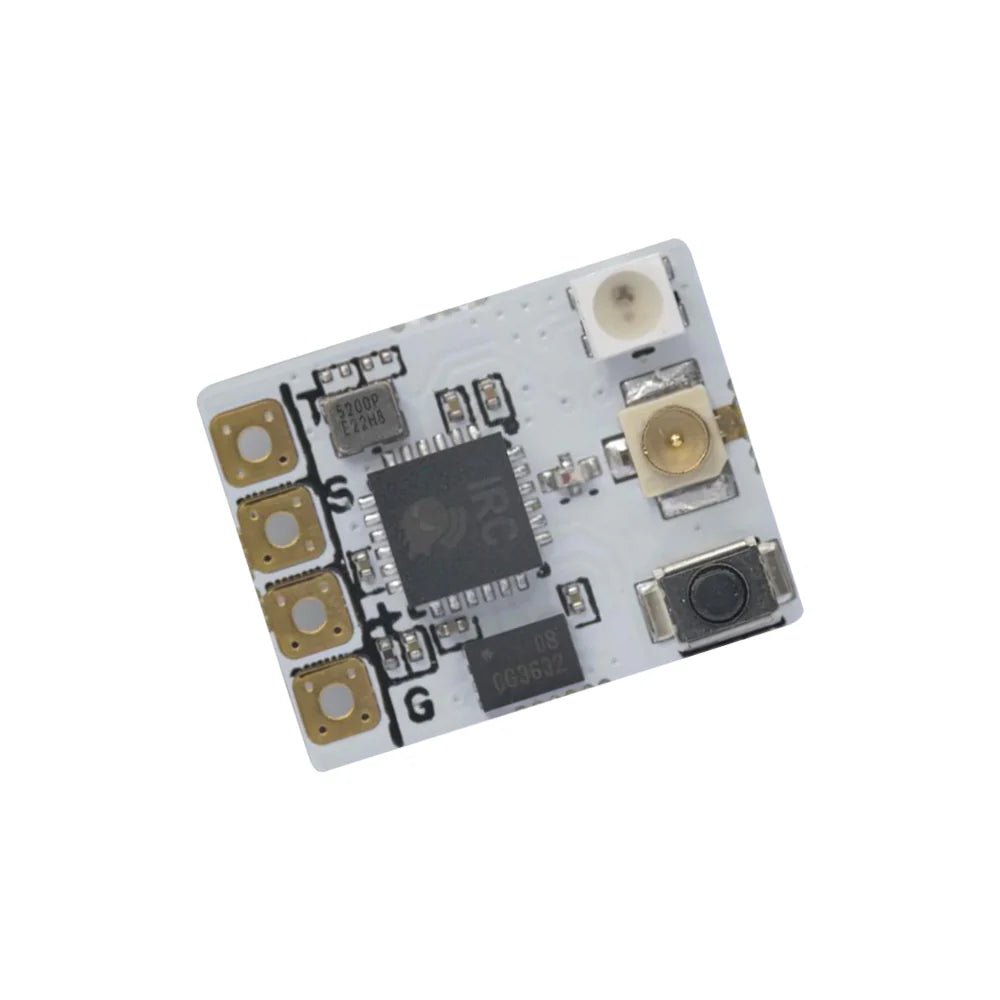

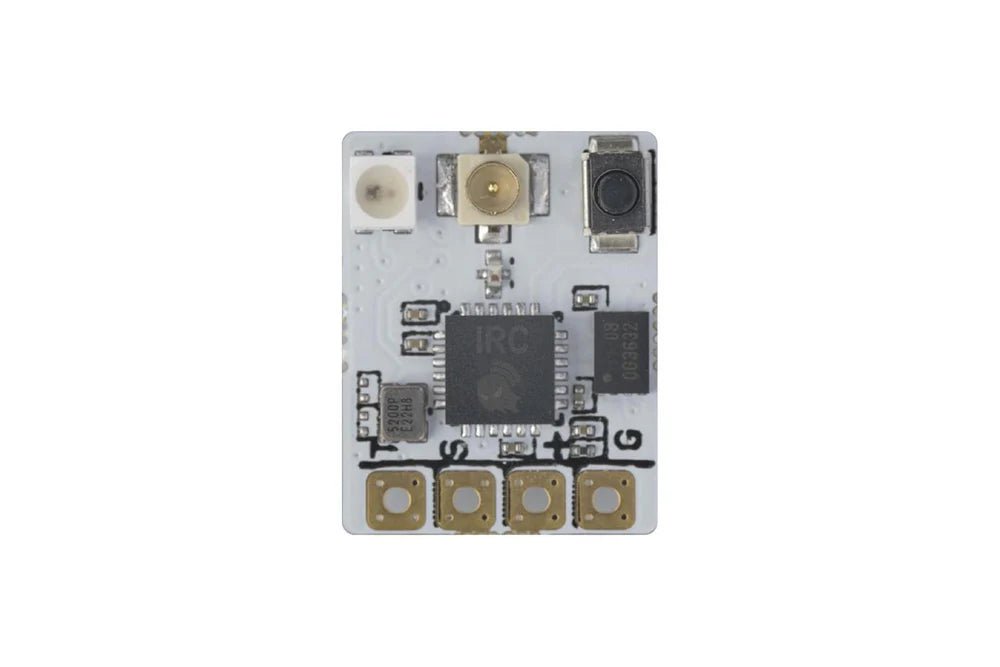

Size matters. The Ghost Atto receiver weighs in at about 0.6g and is only 14.8 x 11.5mm, a 15% smaller footprint than its closest competitor.

Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.

Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).

Orqa Goggle Integration

That space on the FPV.Connect board… yeah, that's for the Ghost receiver, Átto.

Ghost transmitters and receivers can form a network, without the need to use Bluetooth or Wifi, and communicate between themselves without sacrificing critical control performance.

Clear channel scan with automatic channel assignment, auto-start DVR recording when the throttle stick is raised, and a bunch of other cool features planned for 2020.

Proton Packs for Days

Simple PCBs designed to dramatically simplify wiring, mounting, and cooling of Tramp Nano + Ghost combinations.
36x36 single-sided, 20x20 double-sided, 20x20 single-sided, ‘Toothpick style’, and a special version designed for the Five33 Tiny Trainer.

GPS + Noise

Another advantage of running 2.4GHz instead of the more traditional sub-GHz frequencies for long-range is that 2.4GHz has no harmonics that can desensitize GPS receivers (which are in the 1.5GHz band), so GPS position fixes become more precise.
In addition, Drone/Quad/UAV electrical noise due to fast switching signals is broadband, and also sub-GHz (typically sub-500MHz), and doesn’t desensitize the 2.4GHz Ghost receiver.

qT Antennas

qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.
Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad

What's included:
Orqa Uberlite 2.4Ghz Tx:
1x -  Atto Receiver
1x -  qTee Antenna
Silicone Cables
Heat Shrink
