Orqa FPV.One Pilot

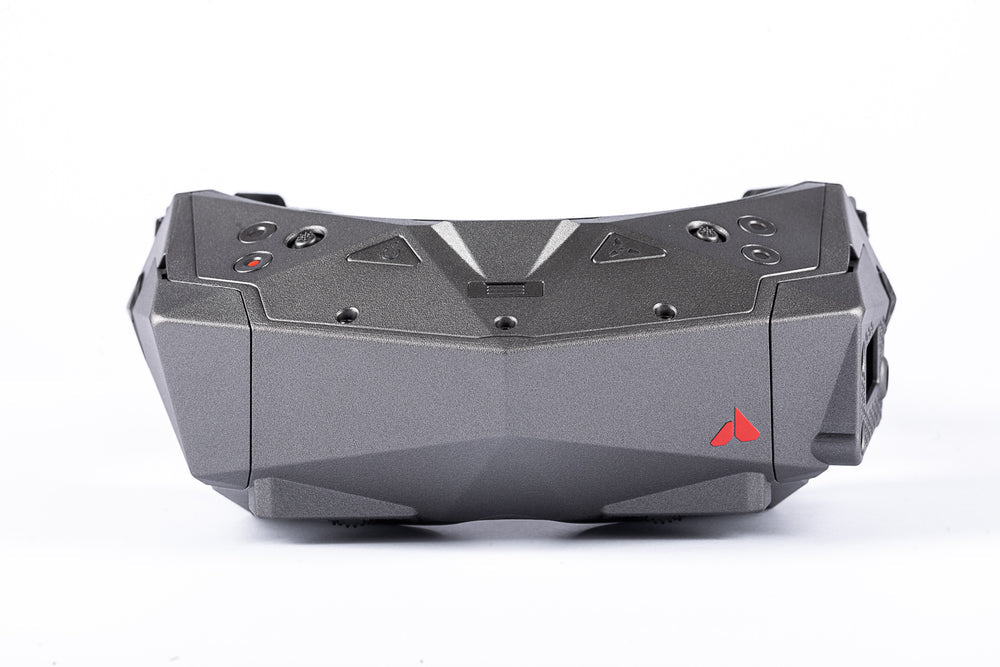

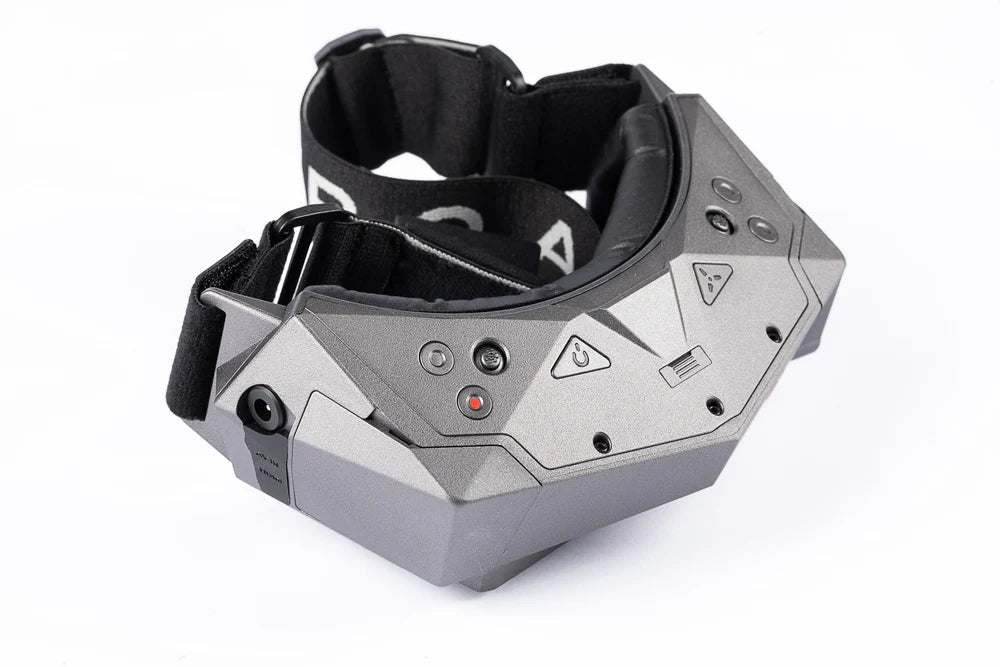

Orqa FPV.One Pilot Goggles vRx

SKUs: 6046

Manufactured in Croatia

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

Orqa FPV.One Pilot vRx

Analog FPV continues to dominate in reliability, offering rock-solid ultra-low latency, unmatched link stability, and the widest hardware ecosystem in the industry.

With global component availability, proven signal penetration, and the longest effective range in the hobby to date, Analog is still the go-to for pilots who prioritize pure responsiveness and control over passive landscape watching.

Paired with the most cost-effective VTX and camera options on the market, it’s a benchmark no digital system has yet to fully match.

With native analog goggles that are designed to be compact, lightweight, and streamlined to perfection. No bulky add-ons, no unnecessary features — just everything you need, and nothing you don't.

Analog is a mature, proven technology that’s here to stay, and the FPV.One Pilot are built to extract the very best it has to offer. What you see is what your system receives : real-time, unfiltered, and built for pure flight performance.

Features

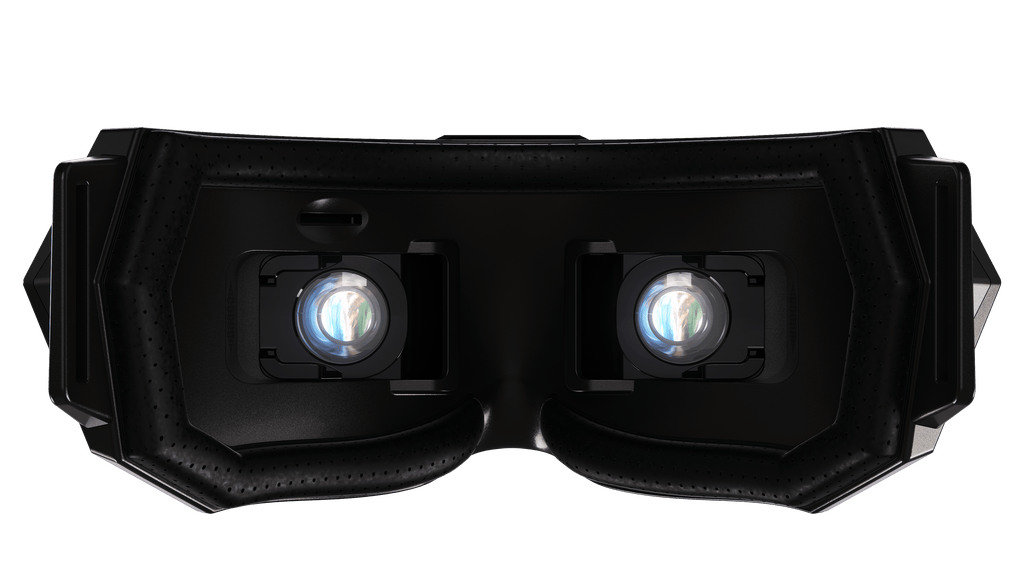

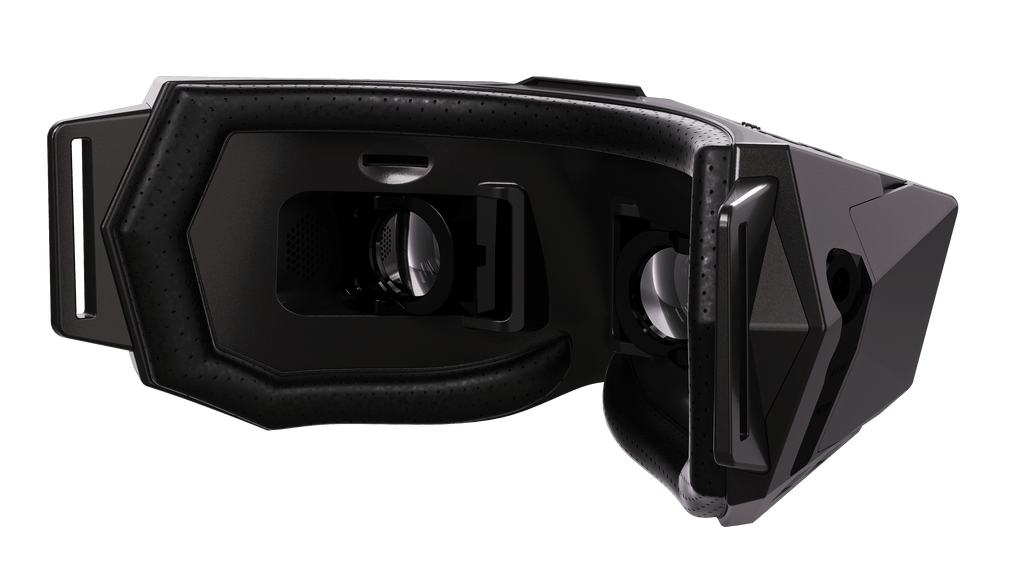

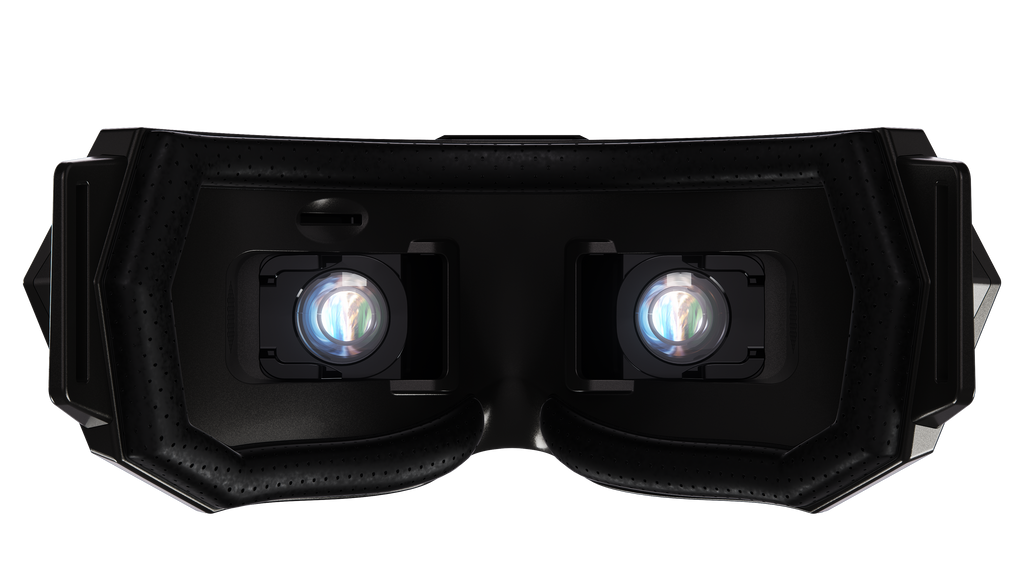

• Sharp and Contrasted 0.5" OLED Screens : Dual 1280 x 960 screens, enjoy edge-to-edge crisp image on the best-in-class OLED displays for FPV headset.
• Best-in-class Digital Video Recorder : Built-in DVR of an outstanding quality, 1280x960 at 60fps, crystal clear footage with negligible compression.

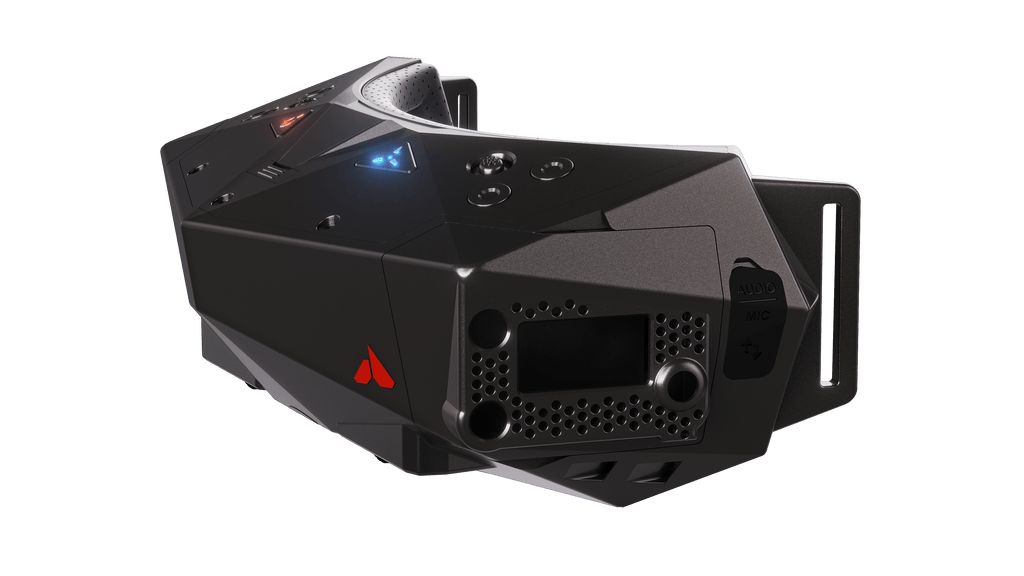

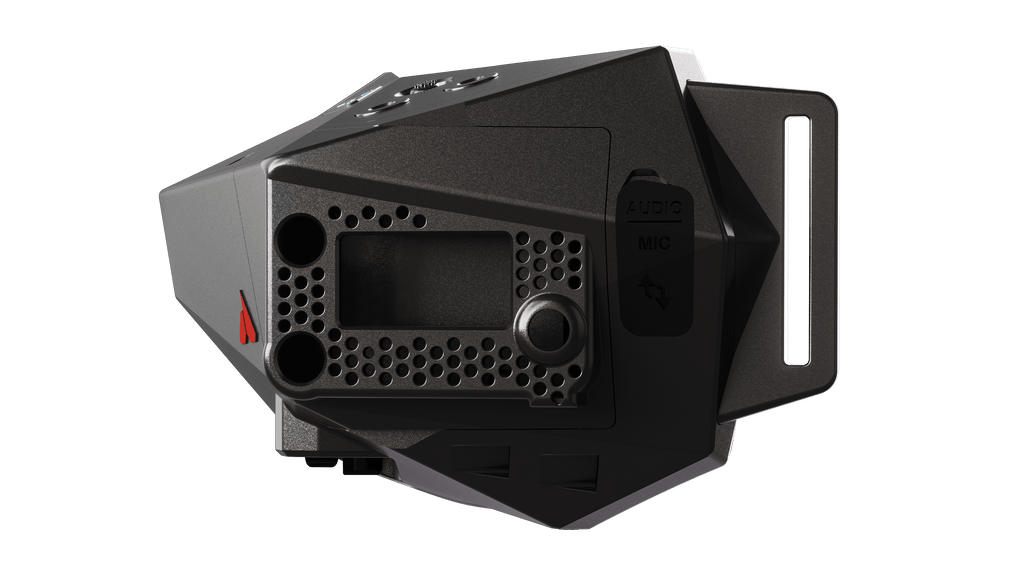

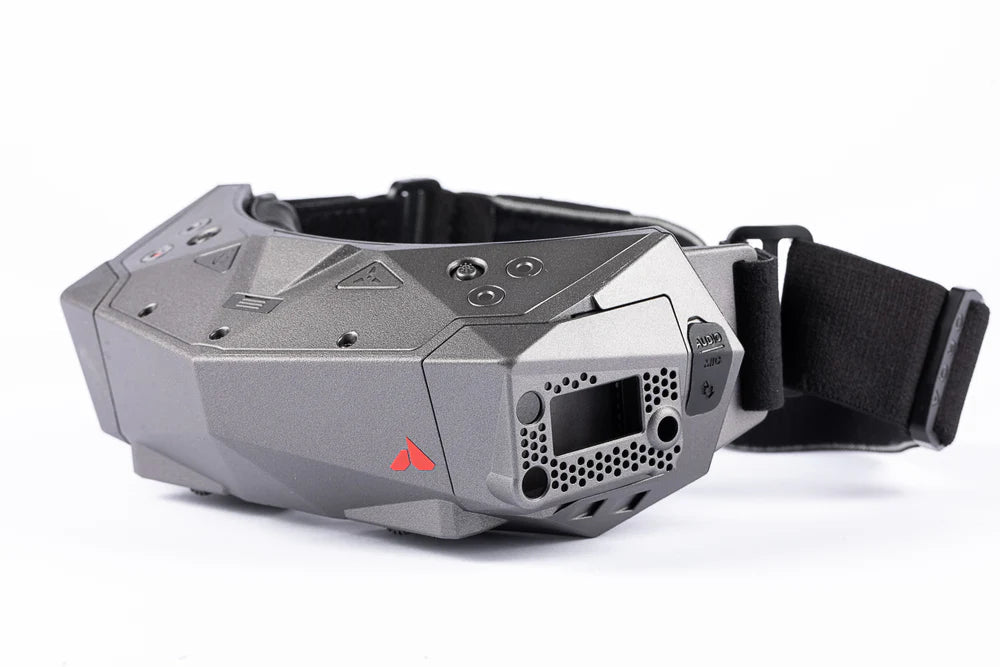

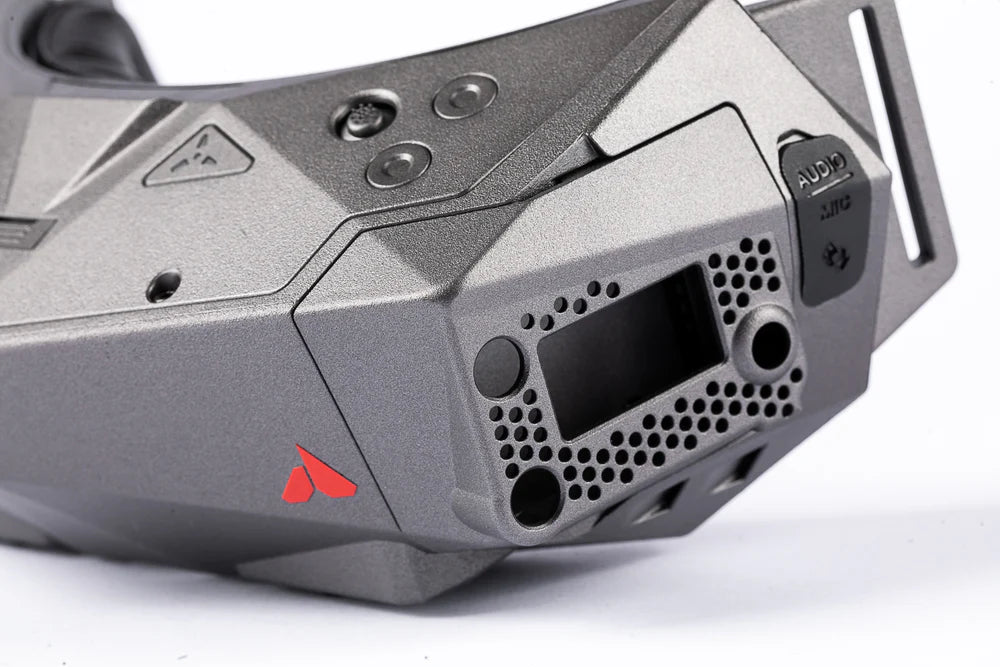

• Analog module bay with seamless Rapidfire Integration : Built to integrate the IRC Rapidfire, proven to be the best performing Analog receiver of the market. Plastic cover included, channel switching via goggles interface,outstanding interference handling.

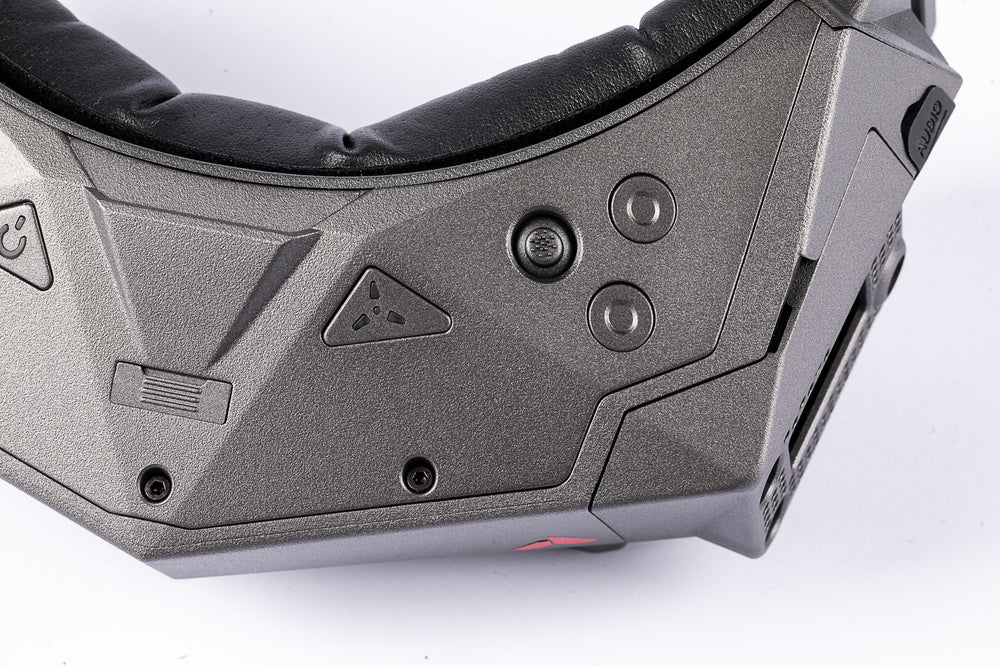

• Clean & Intuitive Interface : Quickly access presets, video settings, DVR playback, and more through a responsive, pilot-friendly menu
• Wide Voltage & Safety Protection : Supports up to 6S batteries with built-in over-voltage and reverse-polarity protection — plug in with confidence, every time.
• Adjustable FOV : Race or Freestyle? Switch between 37° and 33° according to your needs.

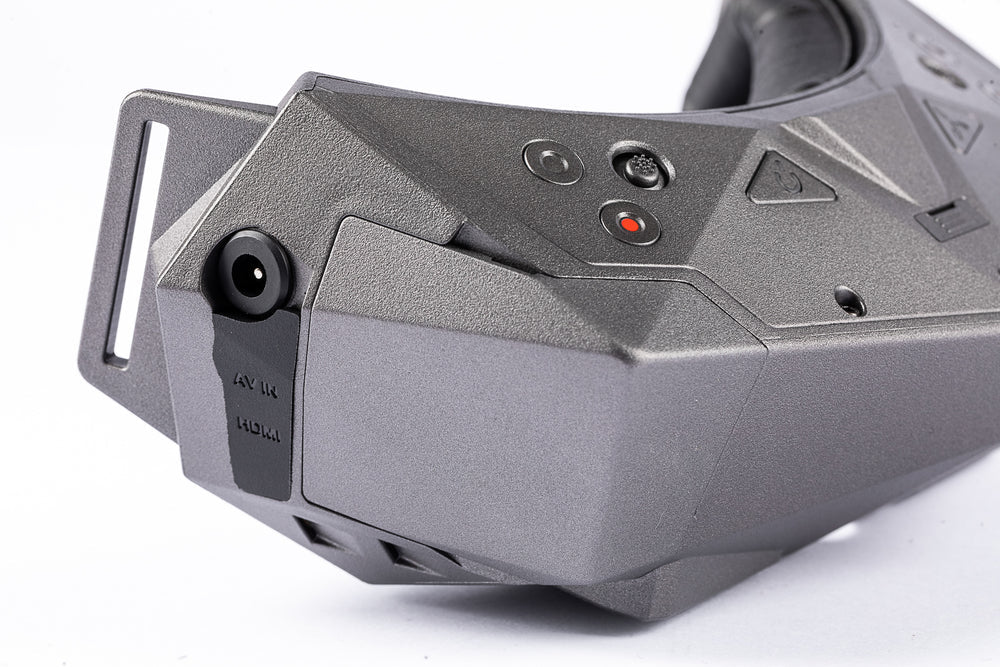

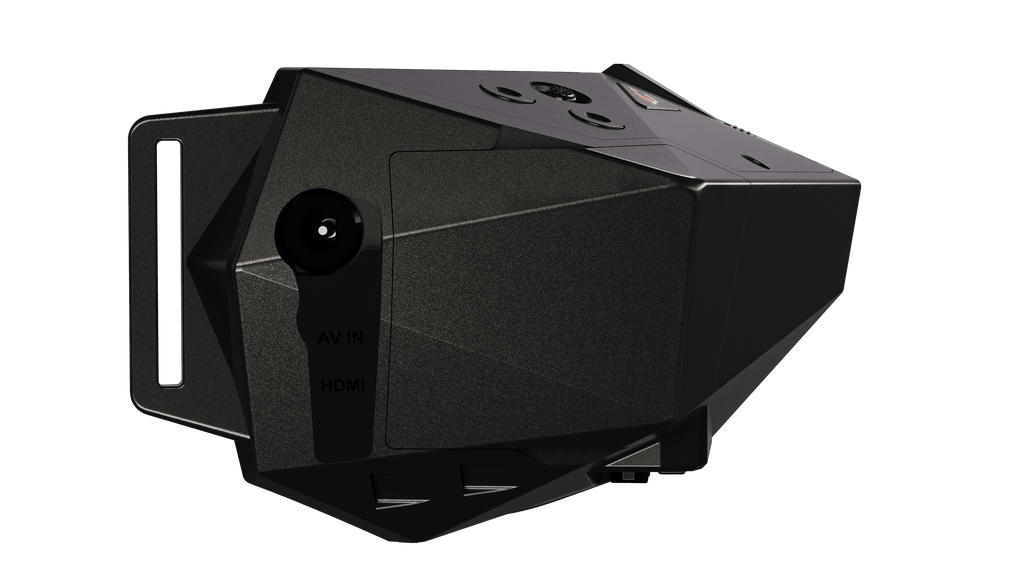

• HDMI Input : Support for standard analog and digital video inputs. Choose between your analog VRx, or go digital using a micro HDMI video port.

Specifications

• Viewing angle: 37° at 4:3 or 33° at 16:9 aspect ratio
• Aspect ratio: 4:3 (Native), 16:9 (Cropped)
• Screen resolution: 1280 x 960 pixels (720p)
• Power supply: 6-25VDC (2-6S Li-ion Battery)
• Power consumption: 2.8W, typical
• Integrated Head Tracker Output: 3.5mm jack
• Focus Adjust: -4D - +4D
• HDMI video input: micro HDMI
• Battery connector: 2.1 x 5.5 mm barrel connector
• IPD Range: 56 - 74 mm
• Integrated DVR: 1280x960, 50/60 fps, H.264, mp4
• Standard receiver bay: High power
• Secondary bay for additional modules: 5V, SDIO, UART
• Weight (without battery): 259 grams
• Weight (package with all accessories included): 560 grams
• Dimensions: 177 x 107 x 72 mm

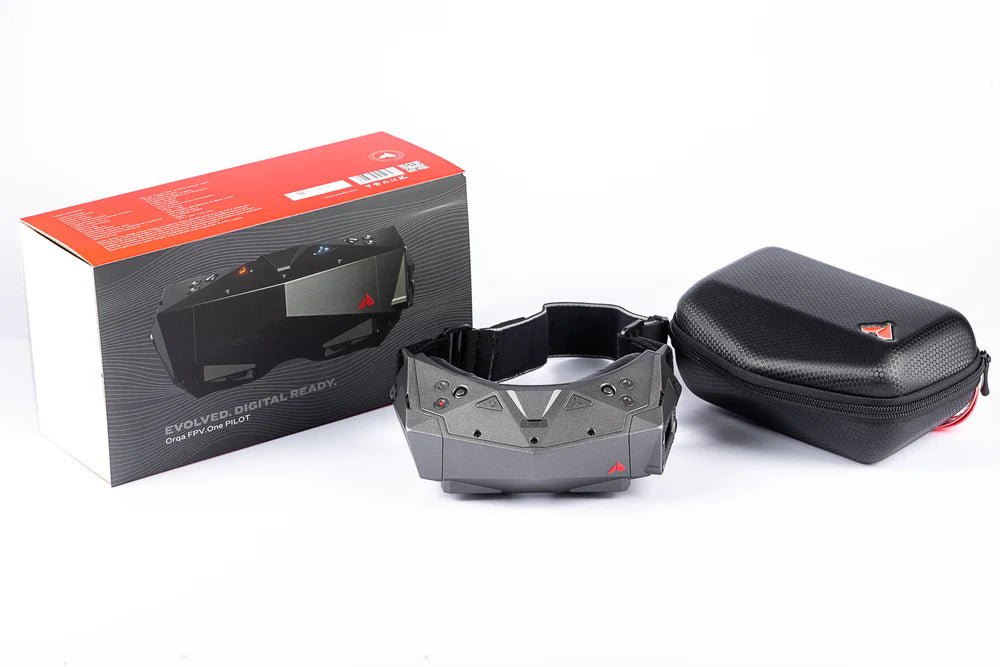

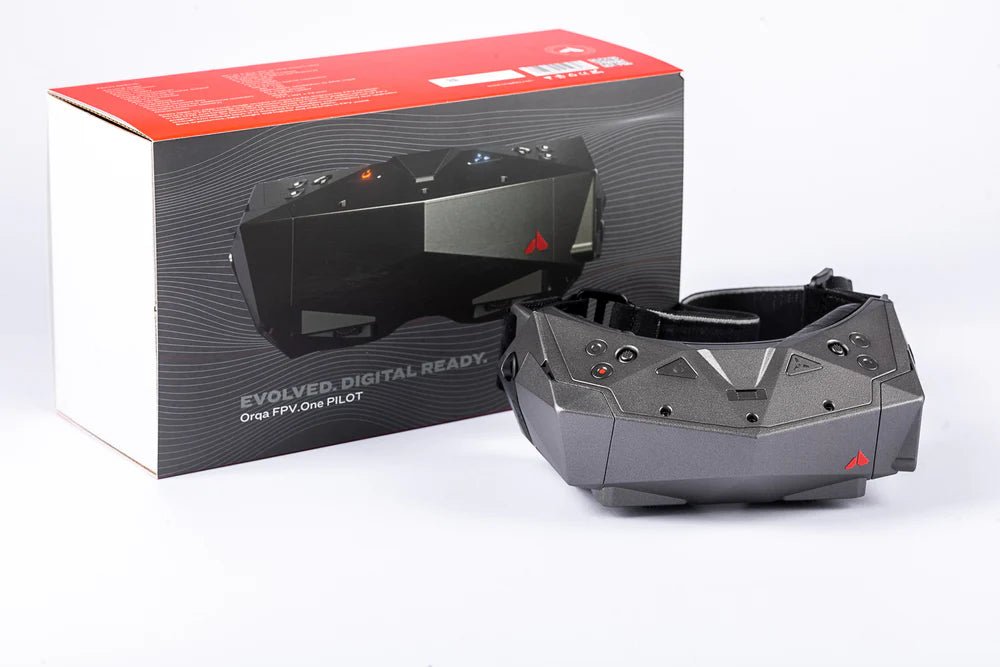

What's included:
Orqa FPV.One Pilot Goggles vRx:
1x -  FPV.One Pilot Goggles
1x -  Foam pack
1x - Strap

For additional info - check out Orqa FPV.One Pilot Manual.
