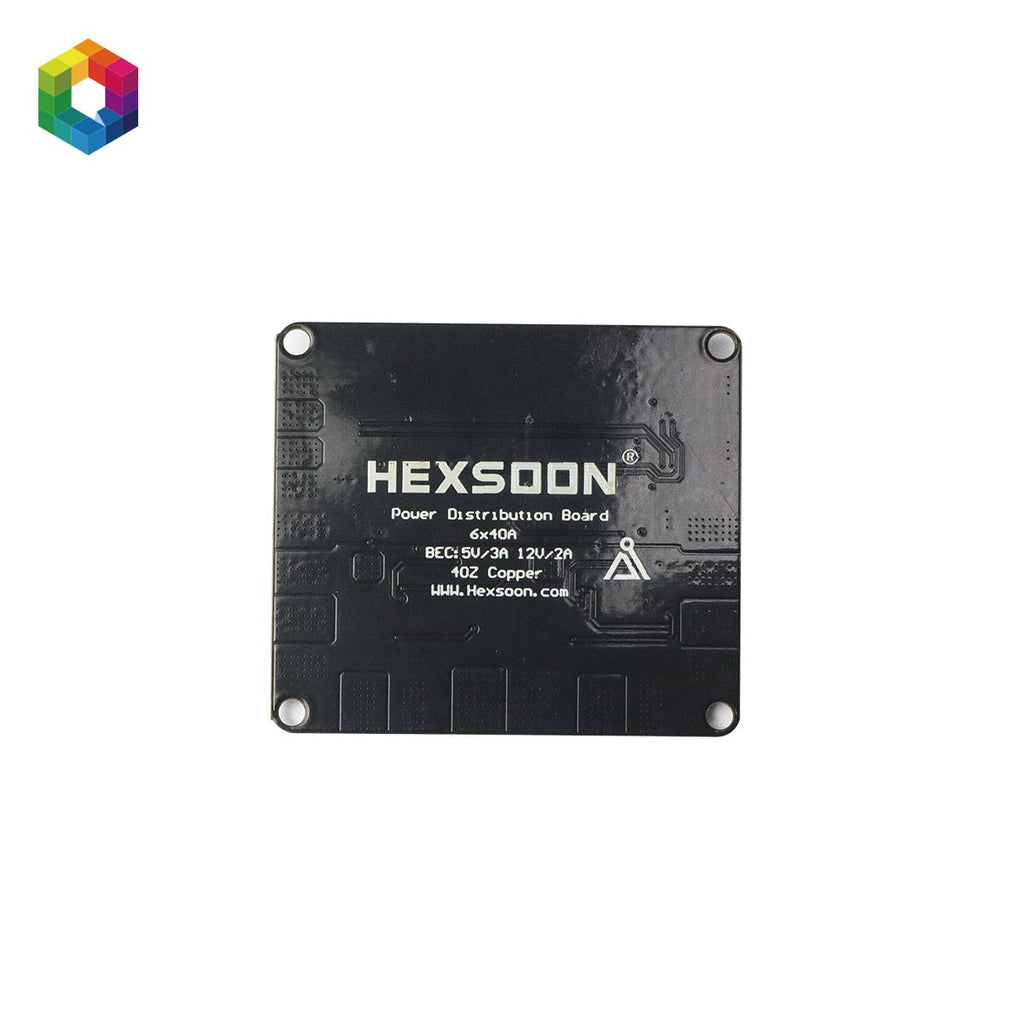

PDB-40A with BEC 5V & 12V

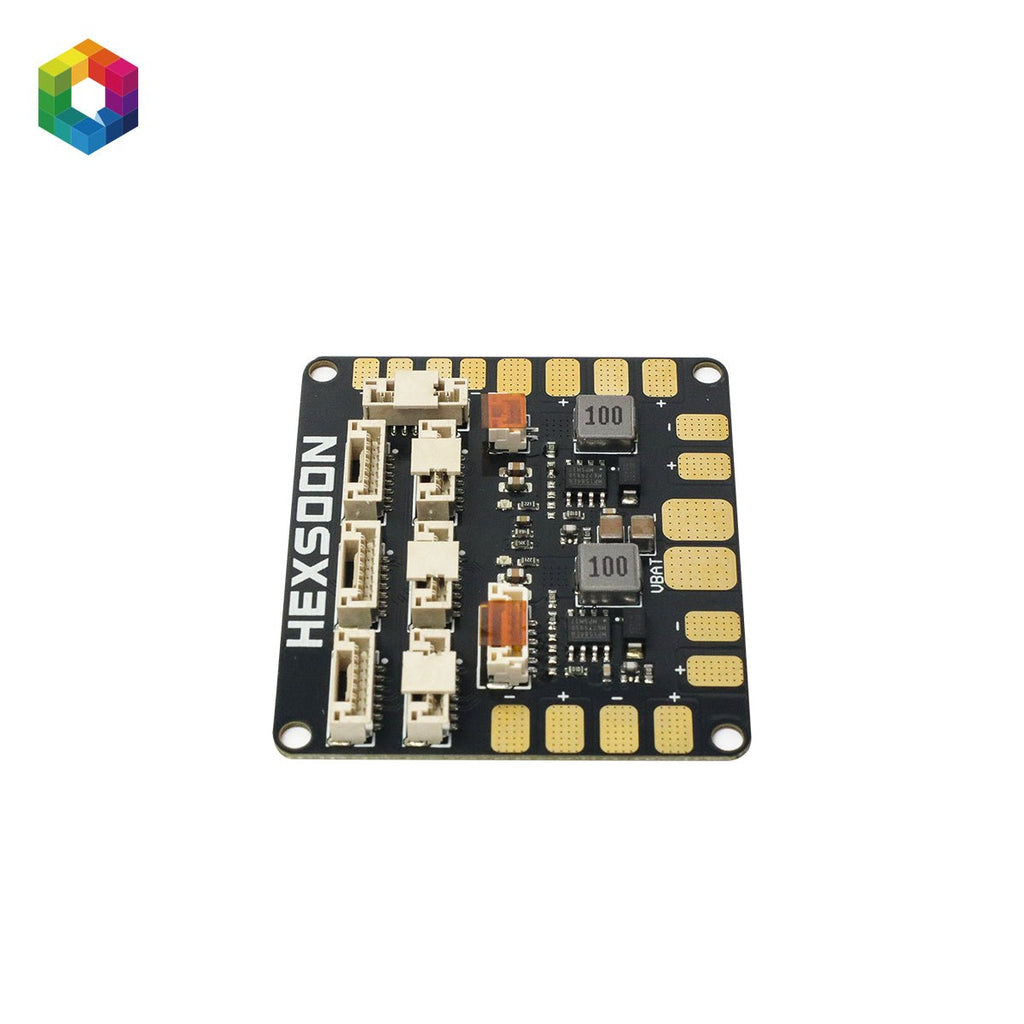

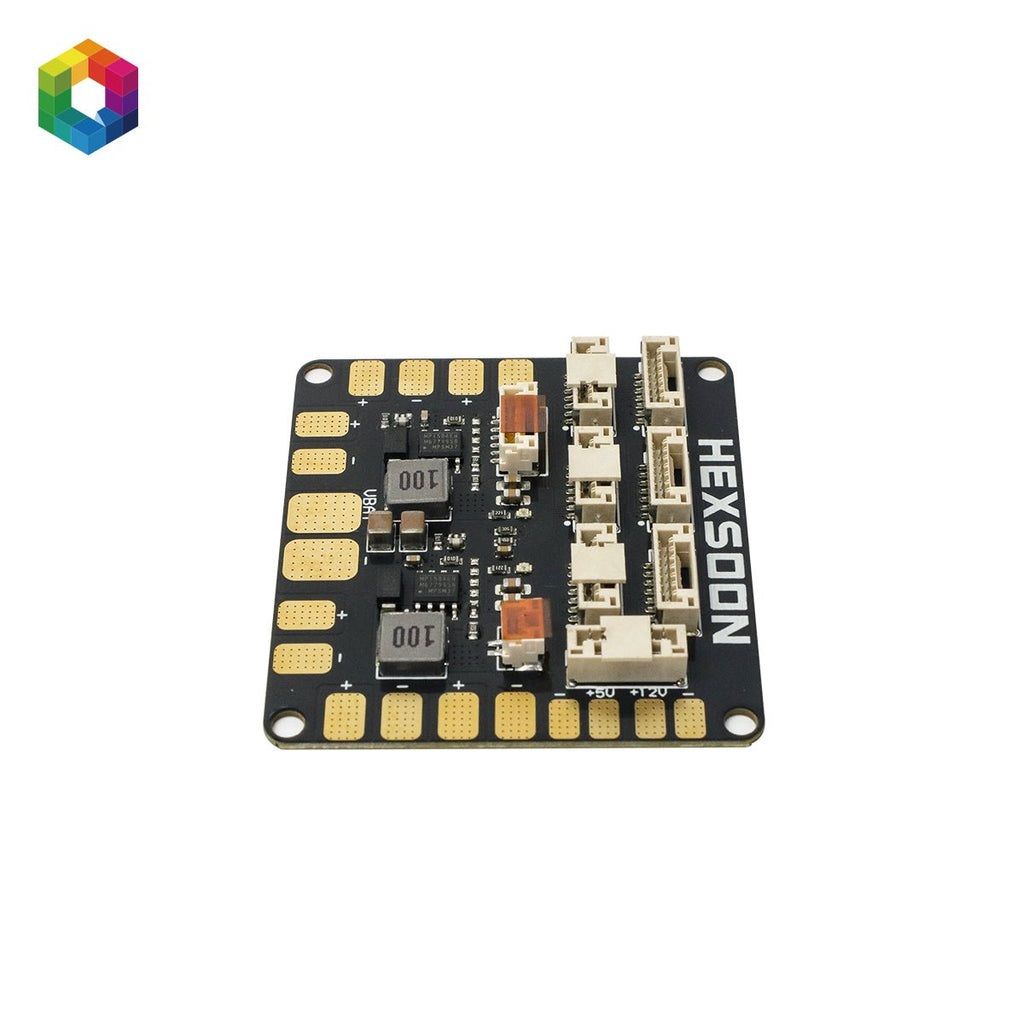

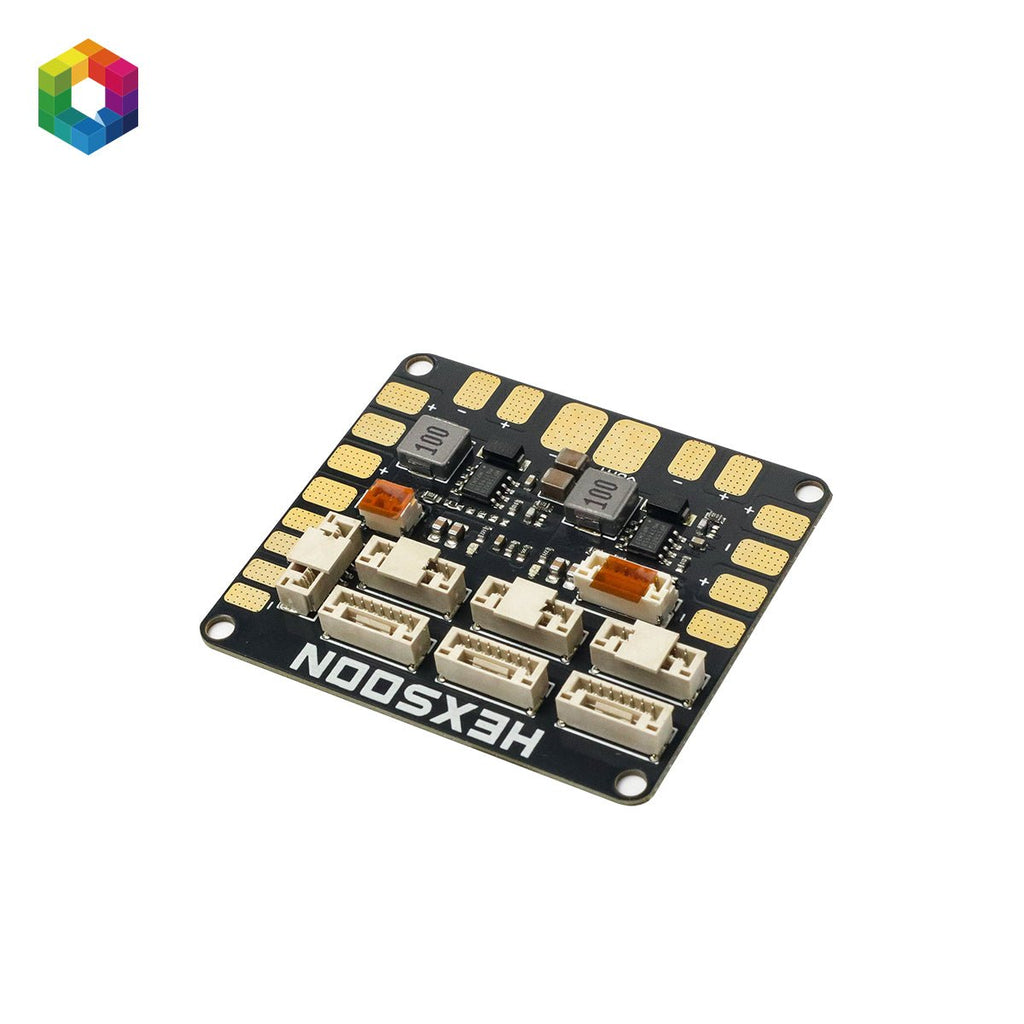

The PDB-40A has been engineered to provide the highest possible performance and reliability in a 36*57mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing Switching Regulator DC 5V outputs & Switching Regulator DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.

- 4oz copper, 4-layers &1.0mm PCB
- Built-in 40A Socket
- Total 6 pairs ESC solder tabs are fit for H or X type frame
- 5V & 12V Output LED indicators & Short circuit tolerant

General:

- Input voltage range (3S-6S LiPo operation): 9 - 26V
- Regulated 5V and 12V output
- LED power indicators (5V & 12V outputs)

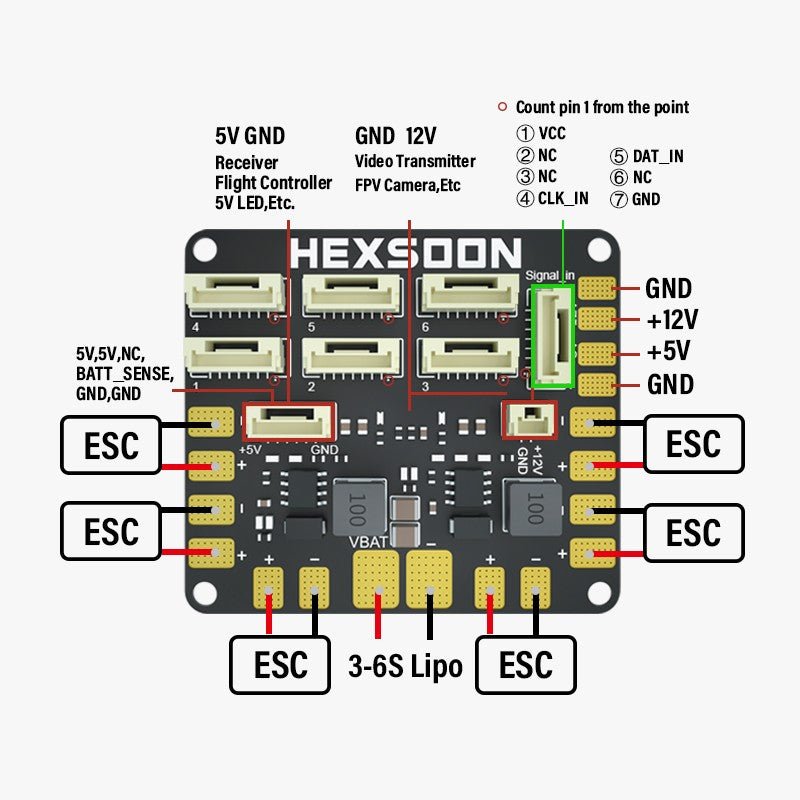

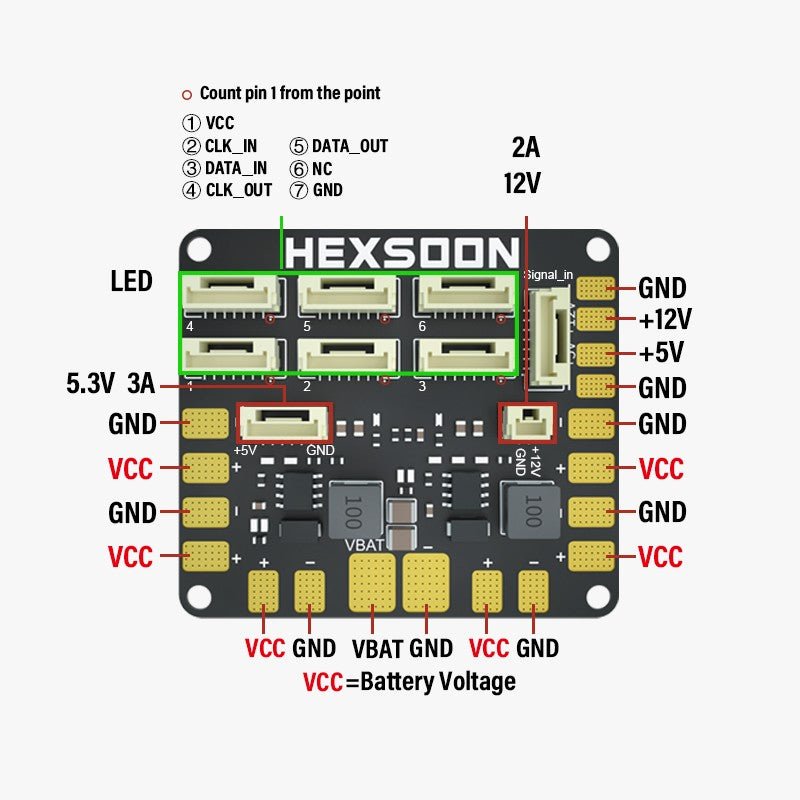

- 6 ESC outputs & 1 pair VCC/GND pad

ESC outputs:

- Continuous current: 40A*
- Peak current (10 seconds/minute): 50A*

BEC 5V output:

- Designed for RC Receivers, Flight controllers, OSD, and Servos
- DC/DC synchronous buck regulator
- Voltage: 5.3 +/- 0.1V
- Continuous current: 3 Amp
- Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
- Short-circuit tolerant (5 seconds/minute)
- This connector has the same definition as the cube's carrier board

BEC 12V output:

- Designed for Video TX or FPV camera with switching regulator
- The battery should be 4-6S LiPo (13~26V DC)
- Voltage: 12.0 +/- 0.3V
- Continuous current: 2A
- Short-circuit tolerant (2 seconds/minute)

BEC 12V @ 3S LiPo:

- Output voltage= 3S LiPo voltage -1V

Physical:

- Dimensions: 57.2 × 50.5 × 5.2mm
- Mounting: 52 × 45.3mm, Ф3m
- Weight: 14.5g (w/o 40A)

Manufactured in China

What's included:

HS011 Hexsoon Power Distribution Board
1x - Hexsoon Power Distribution Board
