Herelink Blue v1.1 Bundle

Designed and manufactured in collaboration between NW Blue and CubePilot.

Manufactured in USA of US and imported parts

A HD Video Transmission System, using PineSync technology based on S1 processor. It is an easy-to-use device for sending HDMI video and audio signals, at an affordable pricing.

Signal transmission range up to 20KM; With minimum latency 110ms; Two HDMI inputs; Supports 720p 30fps, 1080p 30fps / 60fps video format

Eight-core high-performance processor S1 built-in in the air unit and controller, ensures stronger and faster data computing capabilities. Built-in powerful video image analysis GPU, 4-core Mali-T860.

Herelink can update OTA via WIFI connection in the application. Compared with downloading the whole firmware package, OTA upgrade only needs to download part of the update package, which is faster to download, install and upgrade, and greatly improves the efficiency of use.

Herelink supports the installation of an OEM image, allowing you to customize your Settings to change, including boot animation changes, system configuration changes, Android application changes, and Android property changes. Please contact us for OEM support.

What's included:

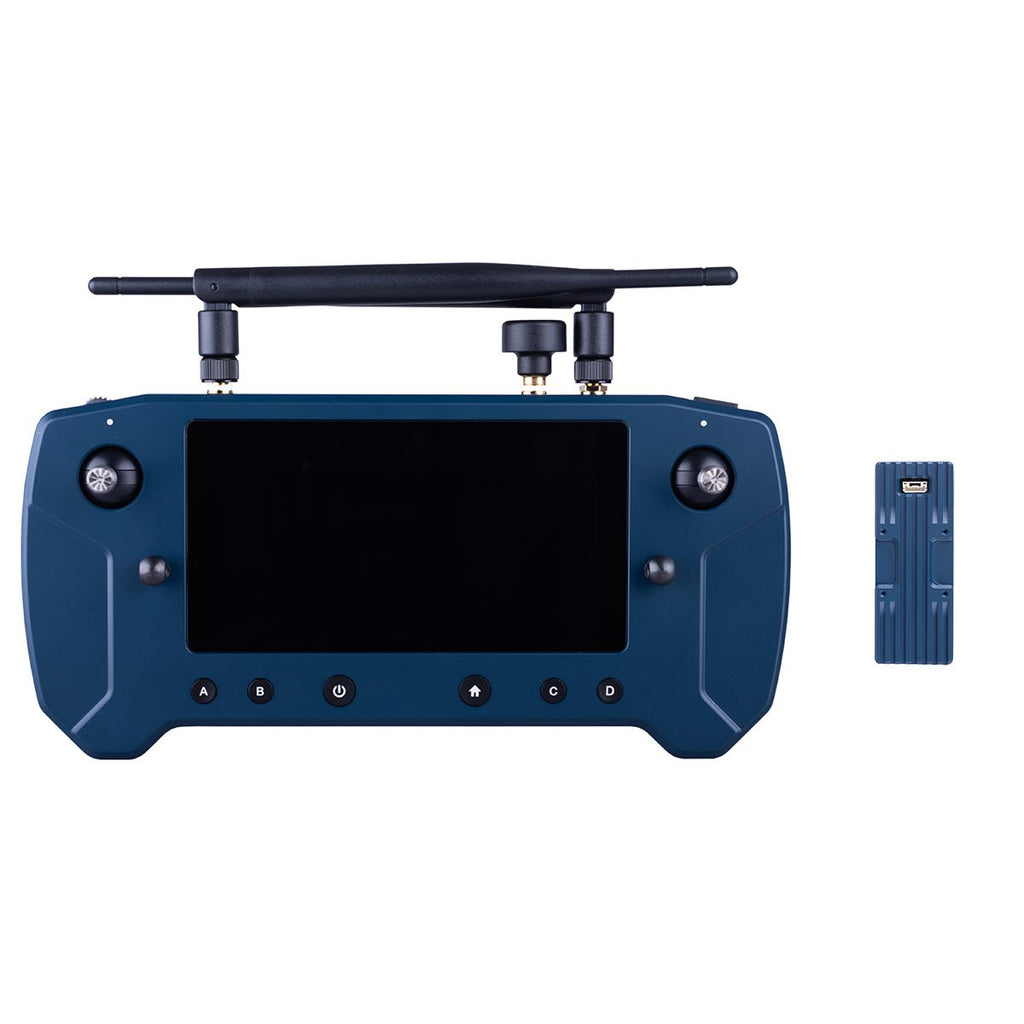

HLB-1001 Herelink Blue v1.1 Bundle

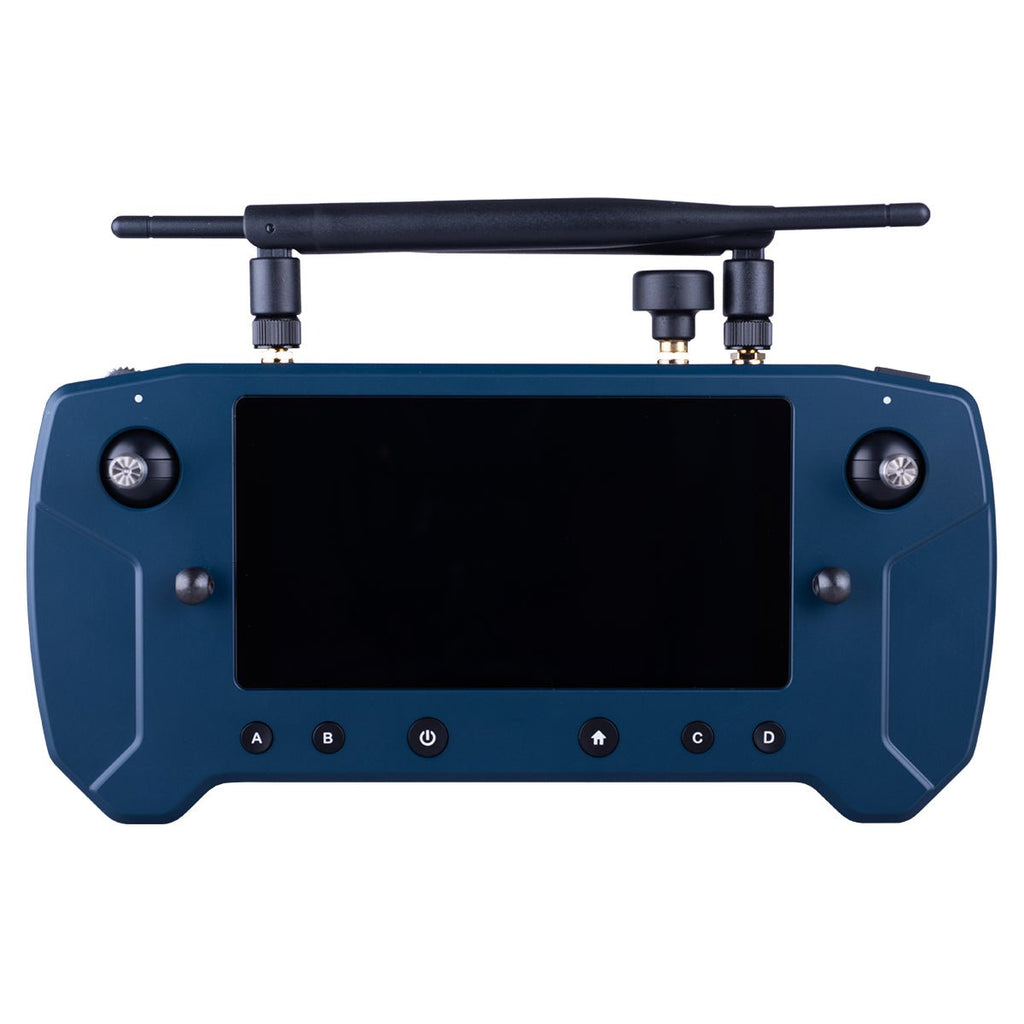

HLBC-1001 Herelink Blue Controller Unit
1x - Herelink Blue v1.1 Controller Unit
2x - Controller Joystick
2x - Omni-directional Antenna
2x - Neck Lanyard Clips
1x - Neck Lanyard
1x - Wall Charger
1x - Micro USB Cable
1x - Waterproof Storage Case
1x - GPS Antenna

HLBA-1001 Herelink Blue Air Unit
1x - Herelink Blue v1.1 Air Unit
1x - Mounting Plate kit
2x - Air Unit Taoglas Antenna
1x - Fan
1x - Cable Set
1x - HDMI Cable

For more details, please check the CubePilot official doc:
https://docs.nwblue.com/nw-blue/products/herelink-blue/herelink-blue-overview

California 65 self-declaration

To date, we have identified the following listed chemicals as being contained in our product(s) (mmcx connector on the Taoglas air unit antenna): lead (used in very small amounts in brass and inner solder).

We are providing warning in an excess of caution and it should not be taken as an admission that a warning is required. We have no reason to believe that normal handling of our products will result in any significant risk, even assuming lifetime exposure, or exposure at 1000 times the level that results from handling our products.
