Description

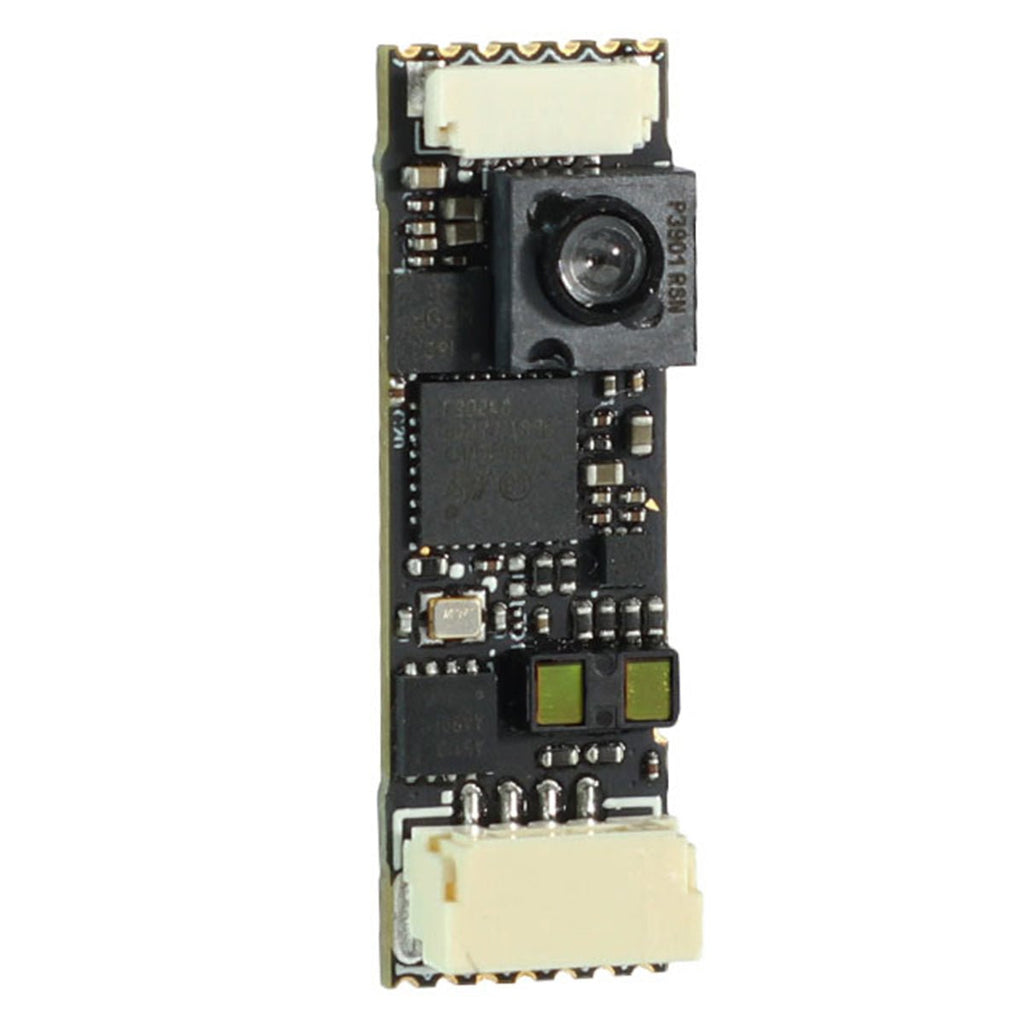

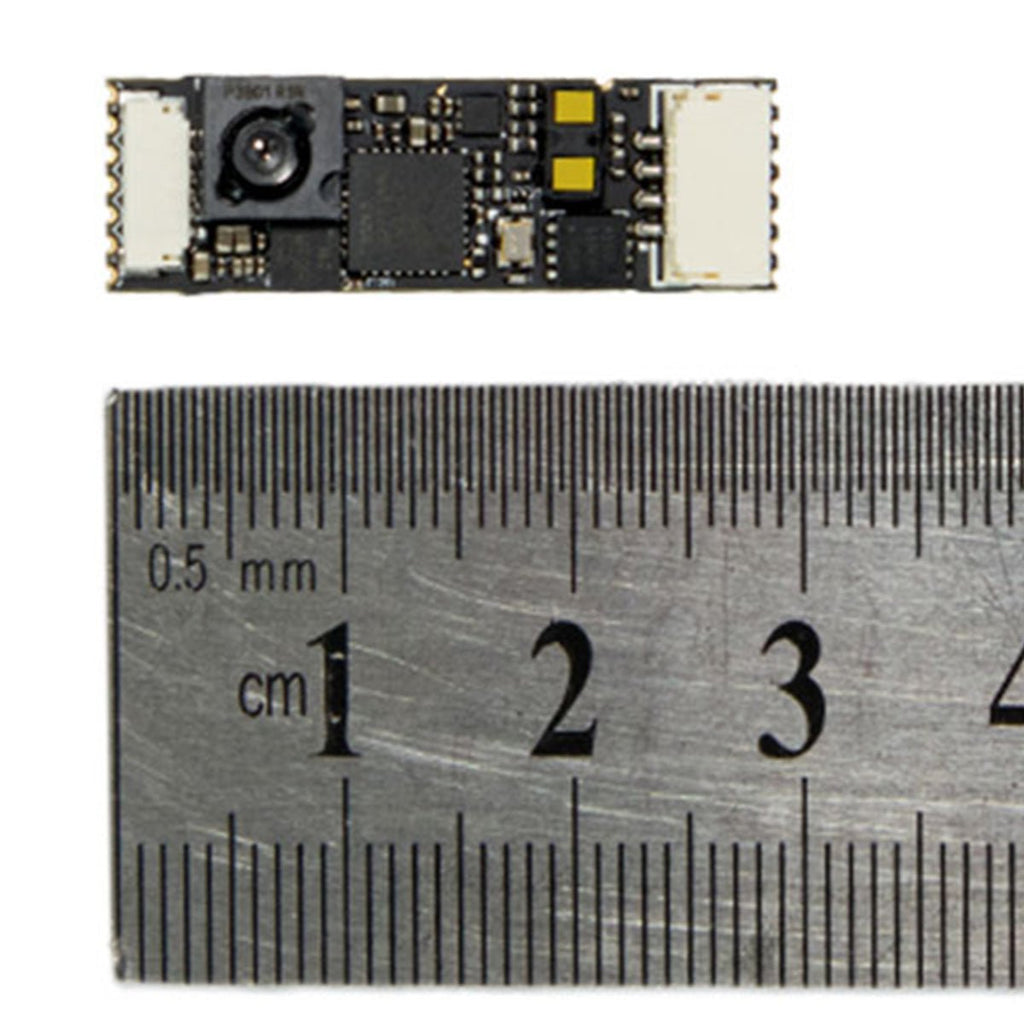

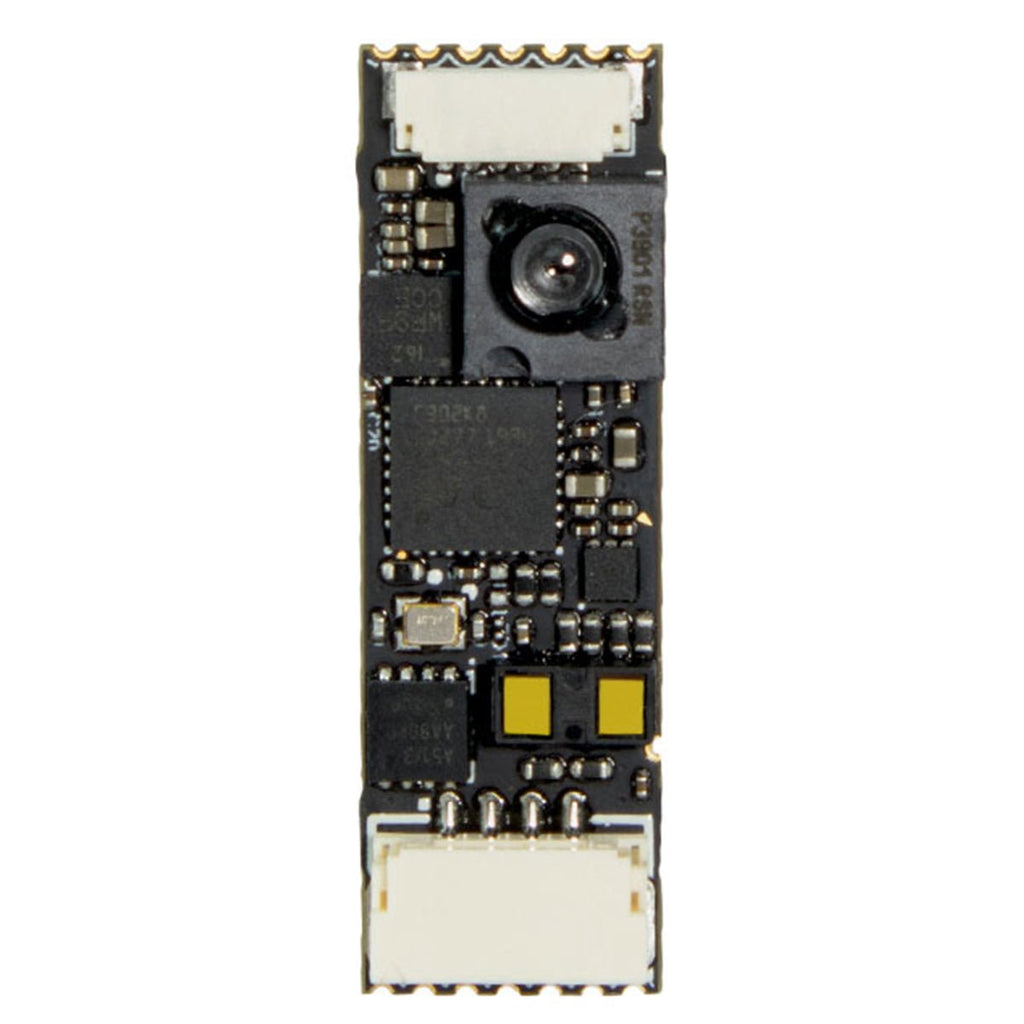

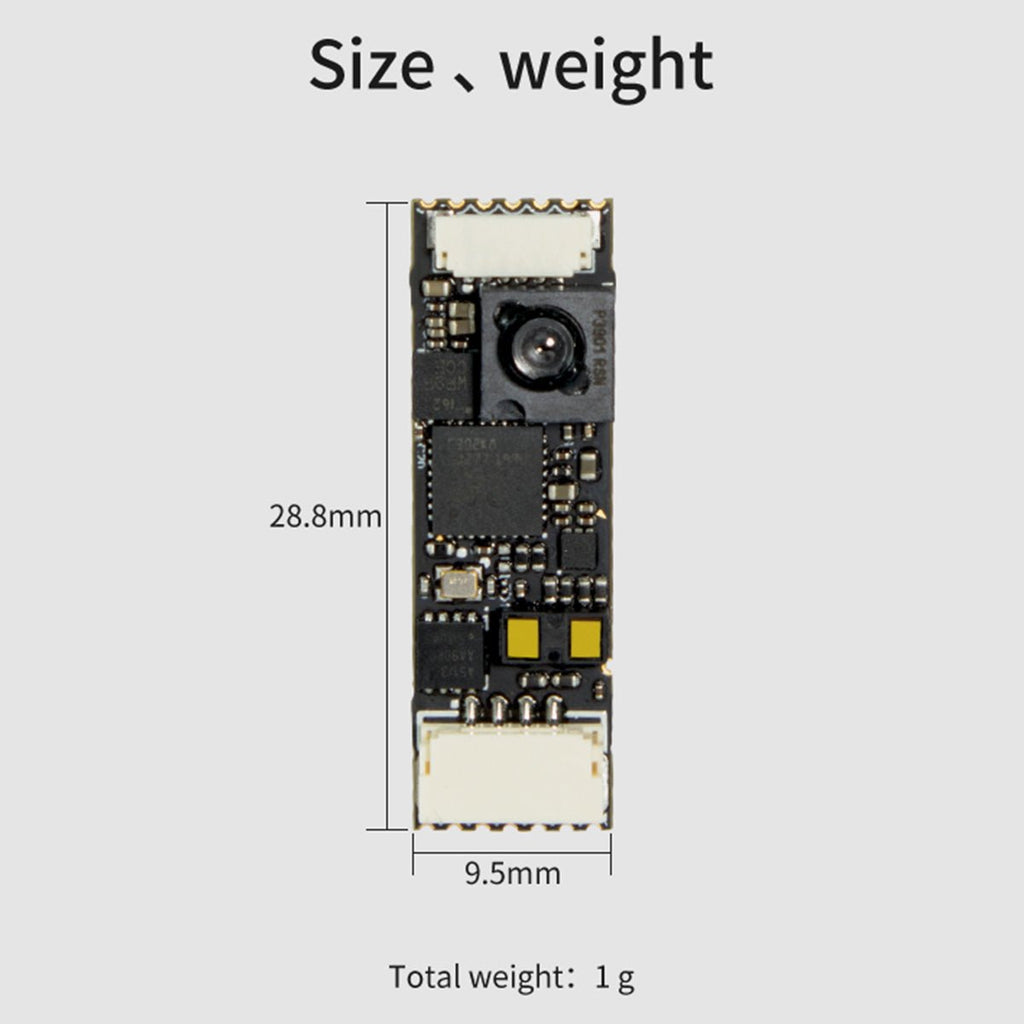

Here Flow is a finger size optical flow sensor. Compared with other optical flow sensors, it is even smaller. It can be installed easily at any position without taking much space.
A LiDAR component, an optical flow camera and a 6D IMU (ICM20602) are integrated in the Here FLOW.
The LiDAR component is a power efficient high speed TOF range finder, which embeds the latest ST FlightSenseTM technology. In range of 2 m, it can acquire the distance within 5 ms. The accuracy is not affected by colour or reflection rate of the target surface.
The Here Flow can be setup at any node in the CAN bus without noise problem.
- Built-in ultra small lidar module
- CAN Protocol, which provide more reliable communication
- Built-in IMU Module
- PMW3901 Optical Flow Sensor
- Effective ranges from 80 mm to infinity
Manufactured in Taiwan
*2024 NDAA compliant, all chips and components are sourced and assembled in Allied nations.

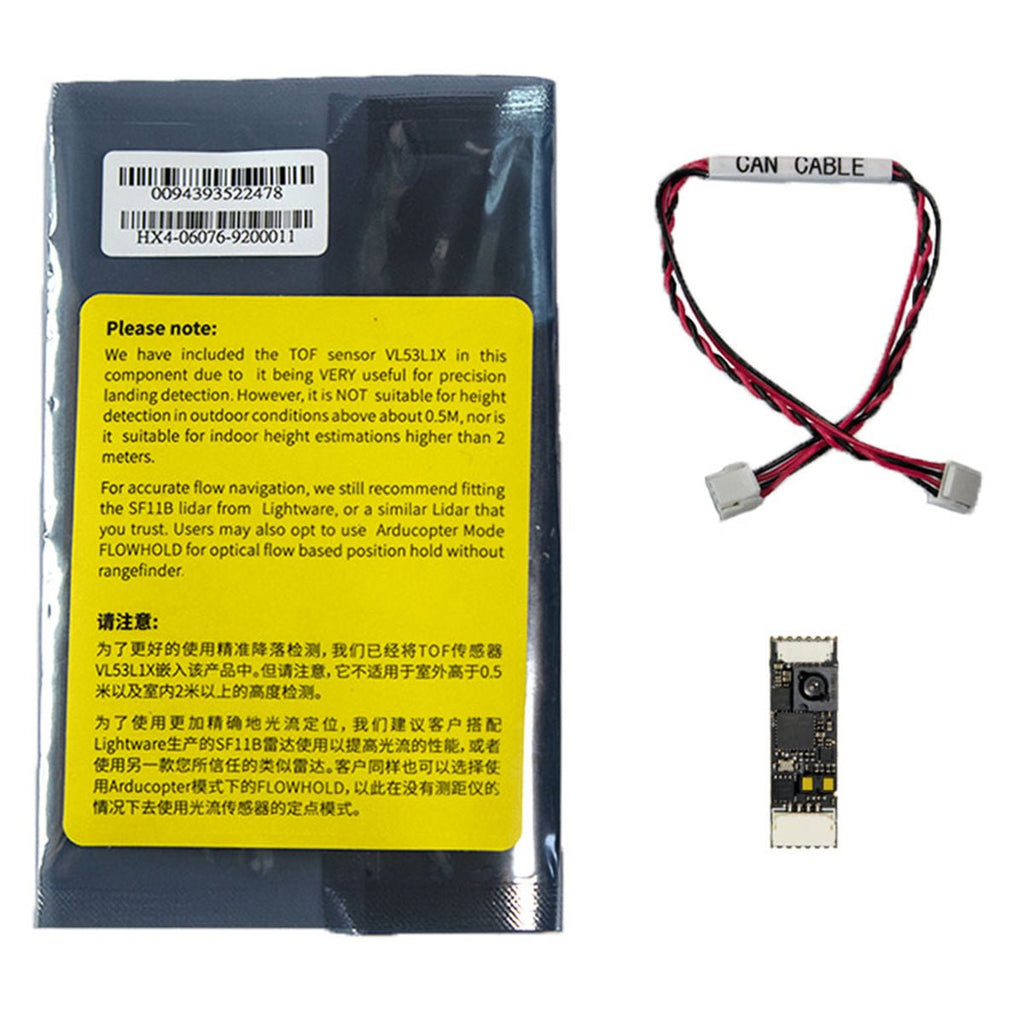

What's included:
HX4-06076 Hereflow
1x - Hereflow
1x - CAN Cable
For more details, please check the CubePilot official doc:
https://docs.cubepilot.org/user-guides/flow-senor/here-flow
