Description
DoD Blue UAS approved
Compliant with section 848 of the FY20 NDAA , section 817 of the FY23 NDAA, and the American Security Drone Act, validated as cyber-secure and safe to fly, and are available for government purchase and operation.
*2024 NDAA compliant, all chips and components are sourced and assembled in Allied nations.
Manufactured in USA
Centimeter level high-precision positioning with Moving Baseline

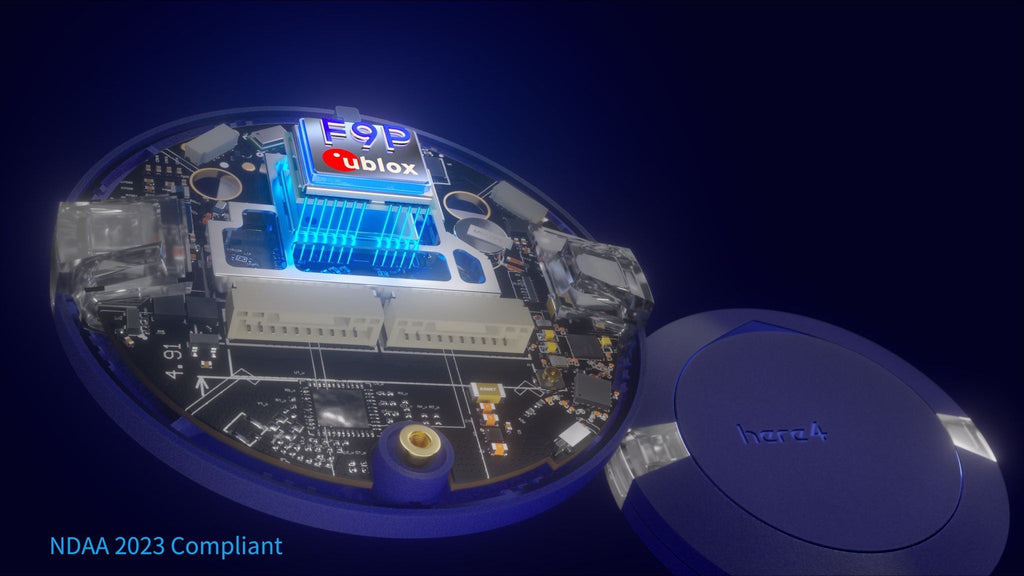

Equipped with the uBlox NEO-F9P L1/L5 RTK Multi Constellation GNSS module, Fastest lock times of any of the standard Here GPS series.
Built-in STM32H757 dual-core processor, The combination of the RM3100 magnetic compass and ICM42688 sensor has better performance in more applications.
Integrated module with multiple features
Here4 is more than a GNSS module. It has both flight control and navigation capabilities. Fitted with 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, accurate mapping has never been more self contained.
Supports further expansion/ customization
The reliable DRONECAN FD communication protocol ensures fast (8Mbps) and stable transmission.
Based on the AP-Periph open source platform, users can better carry out further development and customization.
- NEO-F9P L1/L5
- STM32H757 dual-core processor
- RM3100 magnetic compass
- IMU: ICM42688
Manufactured in USA

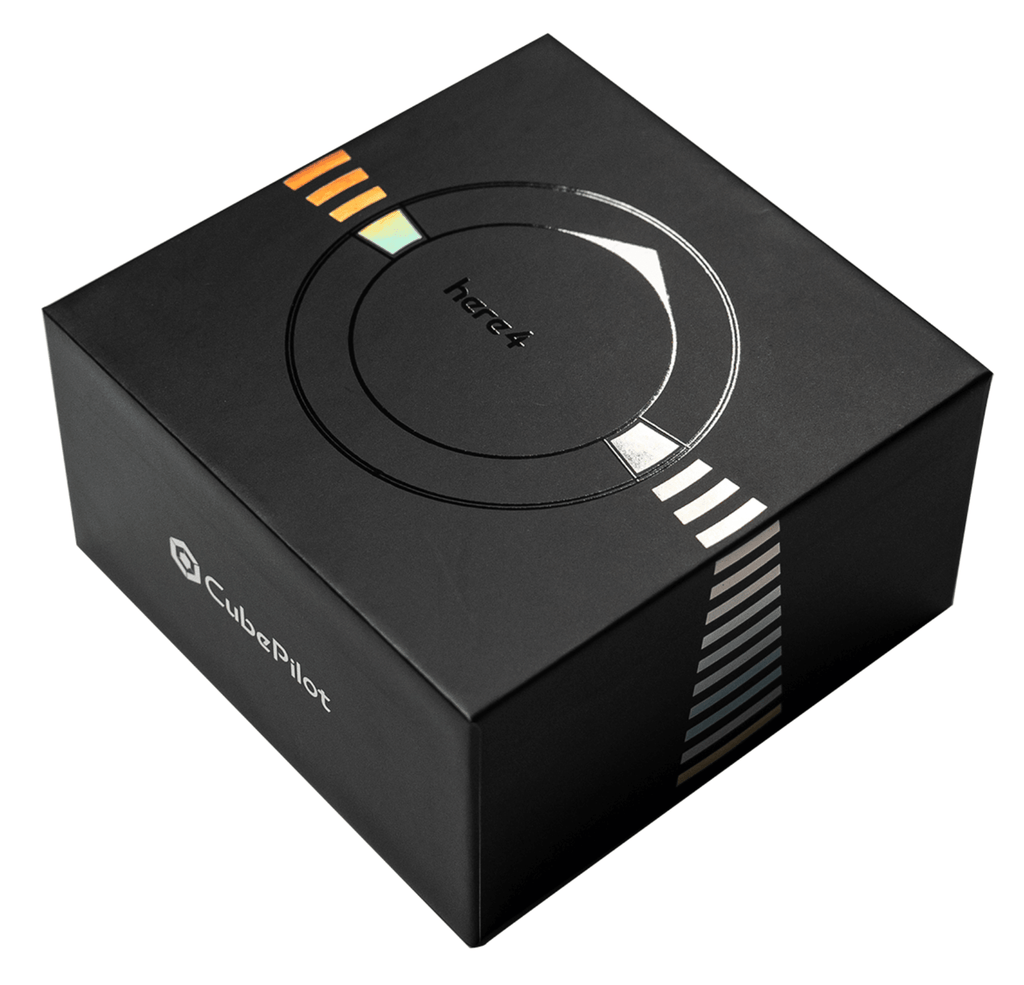

What's included:
HX4-06279 Here4 Blue
1x - Here4 GNSS
For more details, please check the CubePilot official doc:
https://docs.cubepilot.org/user-guides/here-4/here-4-manual
