Description
Hargrave microFLUX 2 MP
Sku: 105446
Manufactured in Australia
Compliance
✅ NDAA Compliant
Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.
Hargrave microFLUX 2 MP
Designed for evolving platforms, microFLUX 2MP offers complete voltage flexibility across both outputs. Supporting 32 different digitally selectable voltage levels between 3.3V and 28V, it allows teams to adjust power delivery as system needs change.
Software configuration eliminates the need for platform rework, reorders, or hardware constraints, reducing integration risk and accelerating deployment.
microFLUX 2MP is built to scale with the platform, from prototype through to production and mission deployment.
Specifications
- Input Voltage: 15-60V [4S – 14S]
- Absolute Maximum Supply Voltage: 13 - 63V
- Maximum Input Current: 22A
- Base Weight: 118g
- Dimensions: 21 x 103 x 56.85mm

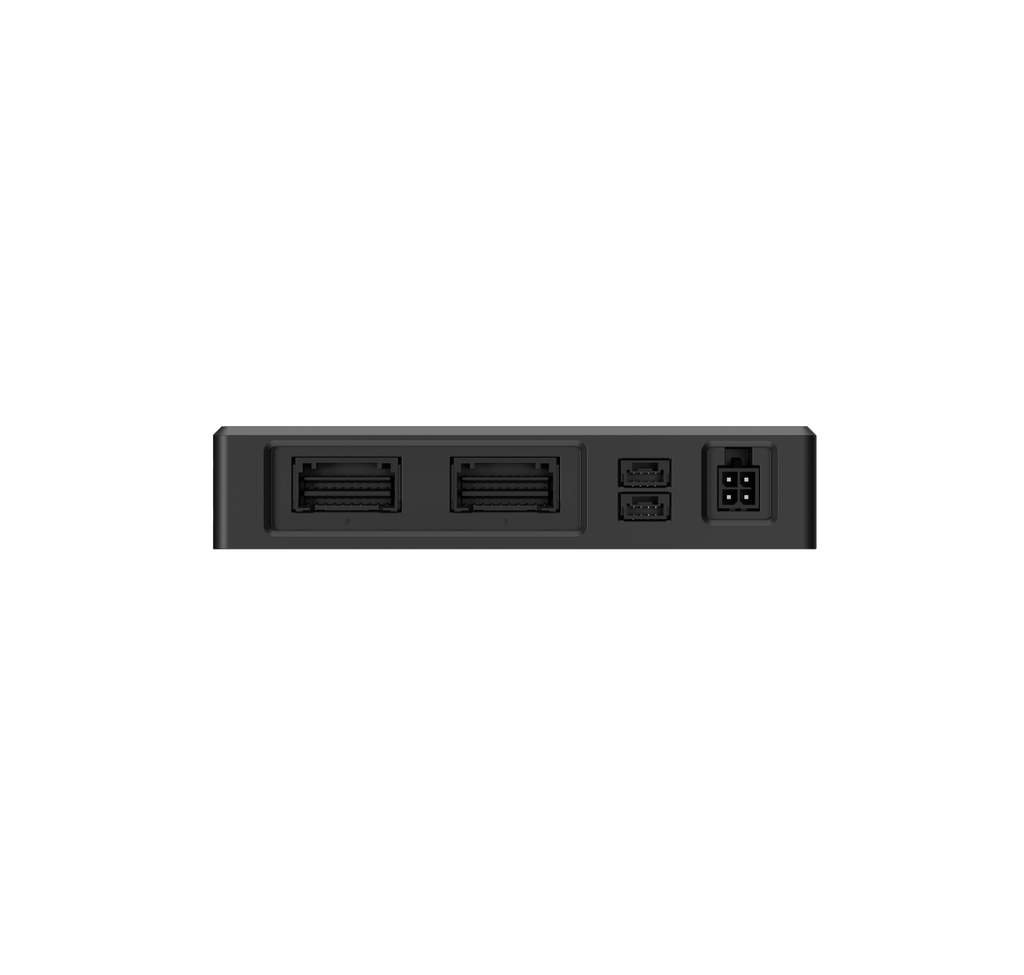

- Input Connector: Molex Micro-Fit+ 2x2
- Output Connector: Molex CLIK-Mate 10x2
- CAN Connectors: 2x JST GH 4 Pin
What's included:
Hargrave microFLUX 2 MP:
1x - microFLUX 2 MP
Visit the data sheet here: https://assets.hargravetechnologies.com/public/datasheets/microFLUX_2MP_Datasheet_V1_1.pdf
