Hargrave microDRIVE MP

Manufactured in Australia

Compliance

✅ NDAA Compliant

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

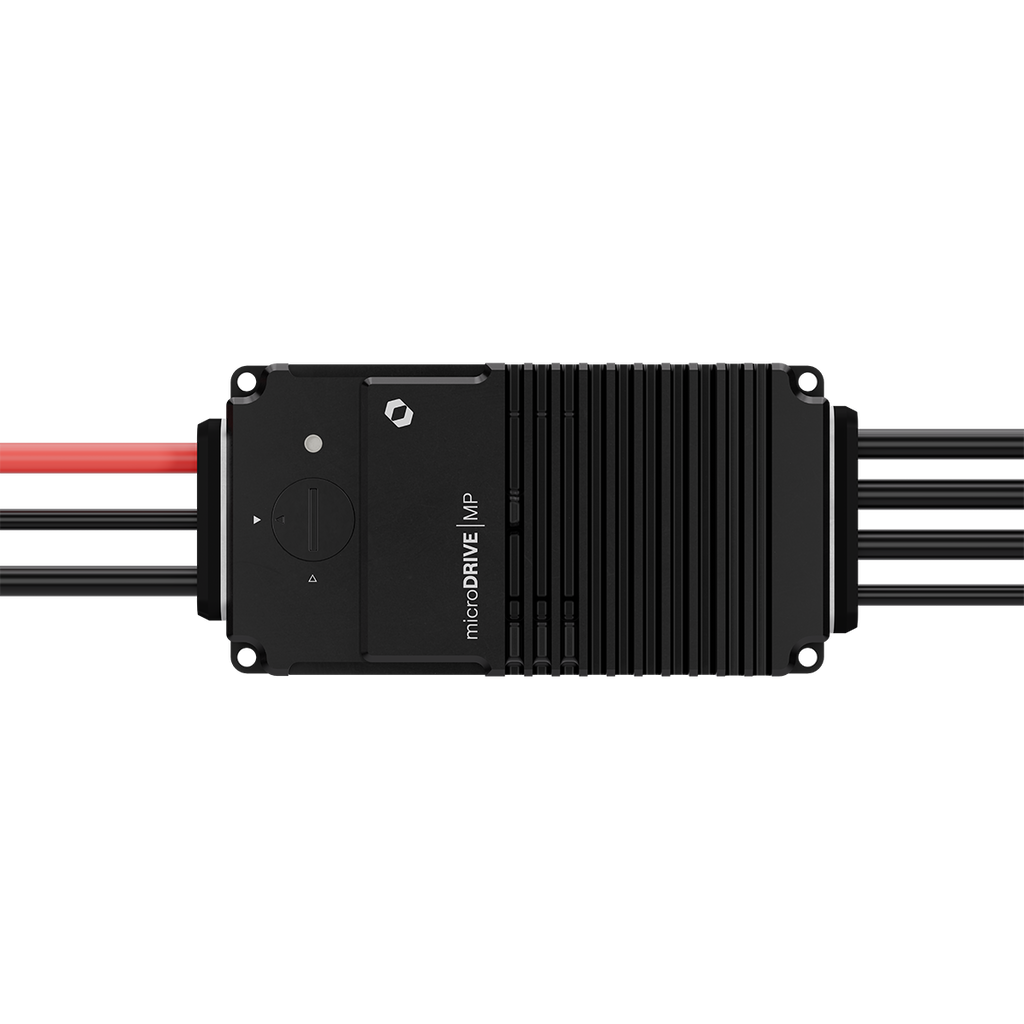

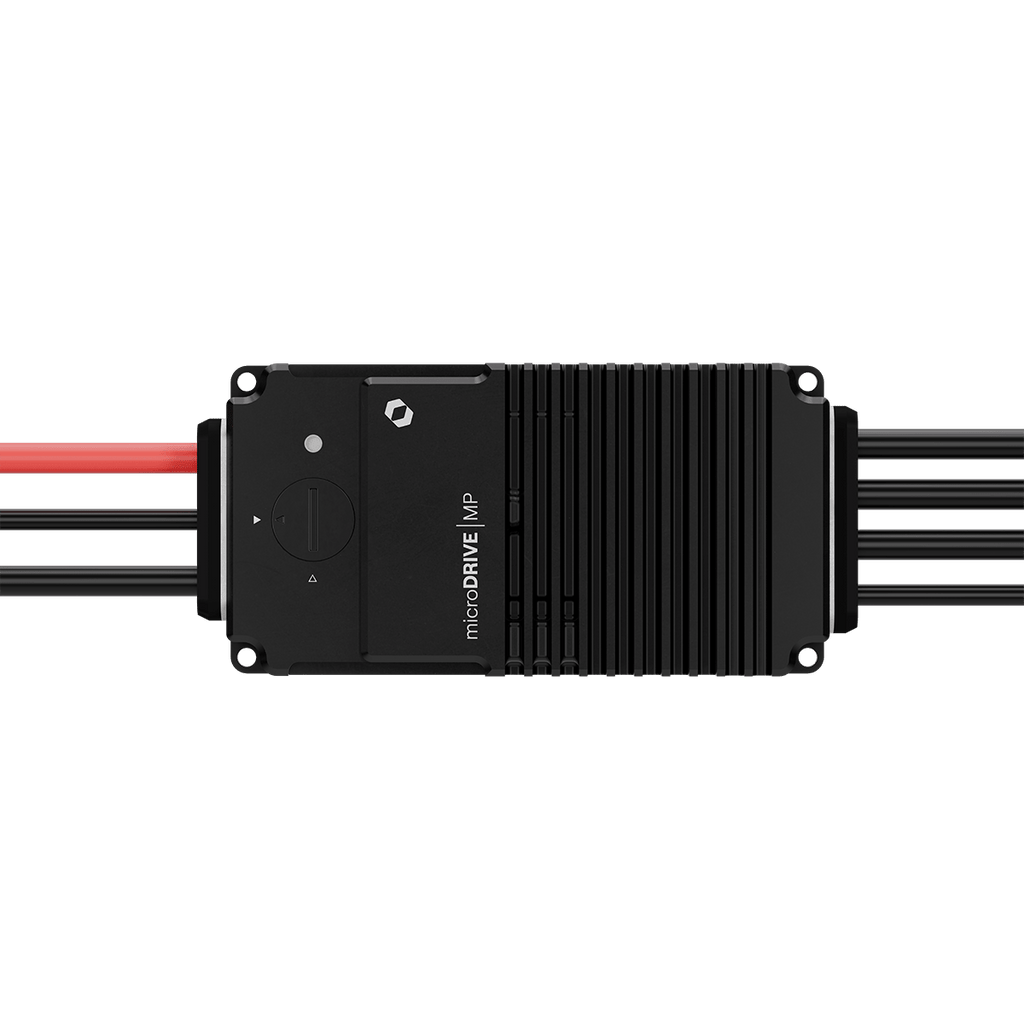

Hargrave microDRIVE MP

Continuous 120A Performance

microDRIVE MP is engineered for both performance and flexibility in the highest demand missions, optimized for medium VTOL / helicopter applications. microDRIVE MP offers the choice between our flight-proven, high-efficiency FOCAL algorithm and a rapid-response trapezoidal drive profile.

Integrated temperature sensing and multiple hall-effect sensor inputs unlock advanced features such as active propeller parking, and intelligent motor temperature protection. microDRIVE MP ensures safe, responsive control across your entire flight, delivering smooth, reliable power where and when it counts.

DroneCAN and ARINC 825 integration.

Reliable, real-time telemetry and control are mission-critical in complex aircraft systems. microDRIVE MP is designed with modern avionics communication in mind. Support for DroneCAN and ARINC 825 communications, enable seamless integration into any modern flight platform, providing full throttle control, configuration, in-flight telemetry and streamlined firmware updates, ensuring every ESC performs exactly as expected. With 60+ configurable parameters and comprehensive visibility across key telemetry points including current, voltage and RPM, microDRIVE MP provides continuous insight into system performance. Engineers and operators gain a live view of performance throughout every phase of flight.

Configuration changes and firmware updates can be executed directly from the flight computer or ground station, simplifying development, testing and fleet deployment. For compatibility with a wide range of control architectures, microDRIVE MP also supports Bidirectional DShot and PWM.

Built for demanding VTOL and helicopter platforms, microDRIVE MP combines intelligent protection, in-depth data visibility and robust hardware design to ensure confident operation in every phase of flight.

Specifications

• Input Voltage: 15-60V
• Rated Phase Current: 120A
• Peak Phase Current: 240A
• Base Weight: 94g
• IP rating: IP45
• CAN Bus Support: DroneCAN
• DShot Support: DShot150-DShot600
• Servo PWM Support: Yes
• Input resolution: 10-bit

What's included:
Hargrave microDRIVE MP:
1x - microDRIVE MP

Visit the data sheet here: https://assets.hargravetechnologies.com/public/datasheets/microDRIVE_MP_Datasheet_V1_2.pdf
