Fat Shark (Unusual Machines) Aura Analog FPV VTX

Fat Shark (Unusual Machines) Aura Analog FPV VTX

SKU: FSVVTX01

Manufactured in U.S.A.

Compliance

✅ NDAA Compliant
✅ Blue UAS Framework Listed

Compliant with Section 848 of the FY20 NDAA, Section 817 of the FY23 NDAA, and the American Security Drone Act. Validated as cyber-secure and safe to fly, and approved for government purchase and operation.

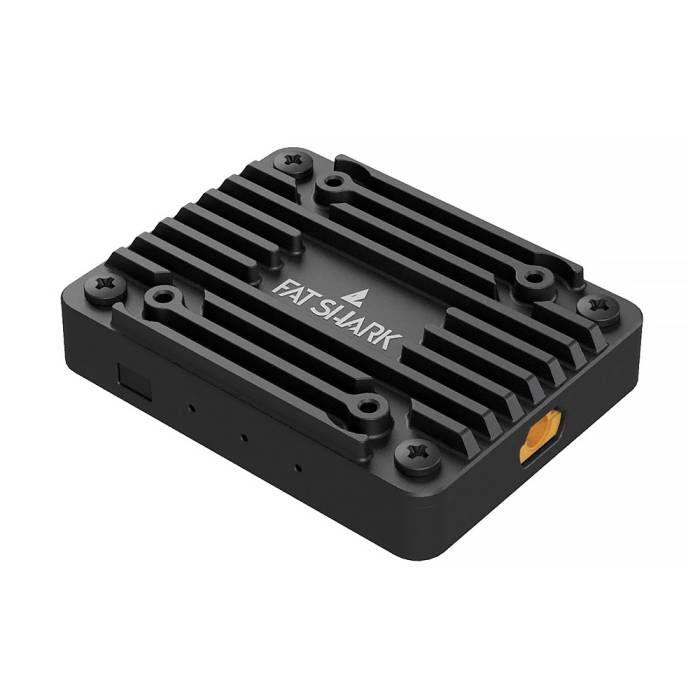

Fat Shark (Unusual Machines) Aura VTX

Fat Shark Aura VTX is a compact, high performance analog video transmitter built for both professional and hobby use. Blue UAS approved, designed for reliable operation.

Features

• NDAA Compliant

• 1 Watt Output @ 5.8 GHz

• Raceband 1-8 Channels

• M2 20x20 Mounting Pattern

• Versatile voltage input


Specifications

• Output Power: 1mW, 25mW, mW, 100mW, 200mW, 500mW, 1,000mW
• Output Voltage: 5V
• Channels: Raceband 1-8
• Control: Tramp Protocol
• Power Draw: 1.2A @ 9V
• Input Voltage: 7-36V
• Mounting: M2 20x20 mm
• Antenna Connector: MMCX

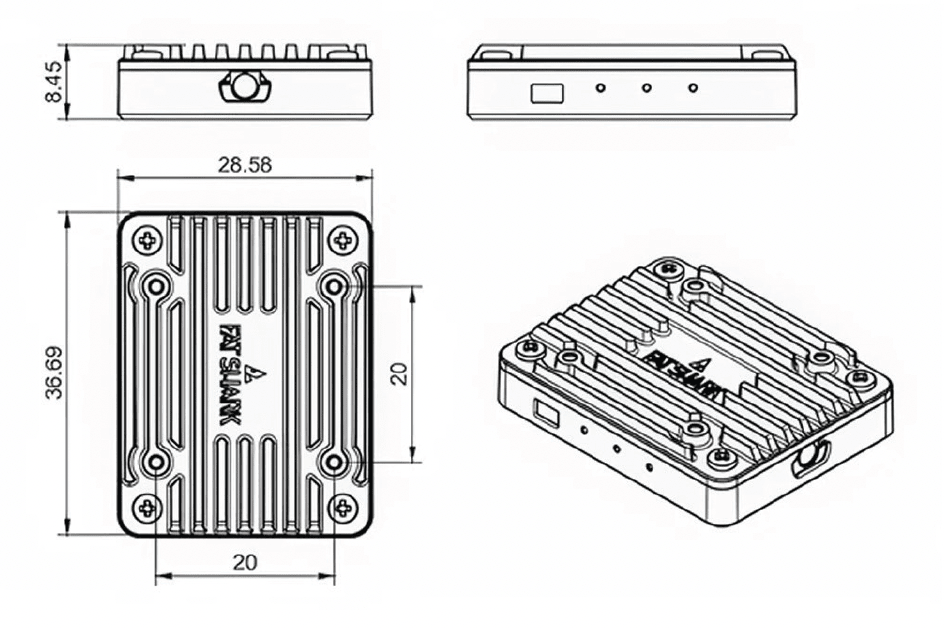

• Dimensions: 37x29x9 mm
• Weight: 13 g

What's included:
Fat Shark Aura VTX:
1x - Aura VTX for Analog Video System - NDAA
1x - MMCX to SMA Pigtail - 100mm
1x - VTX to Brave FC Cable - 100mm
1x - Unpinned Cable - 100mm
1x - Camera Cable - 130mm
