Description
Utilizing the latest in voltage regulator & GAN technology to pack up to 500+ watts of power conversion into a small, highly efficient form factor. The EchoUAS Power Management range of products are the go-to for use on UAV's and Drones.
This one channel version of the range packs an adjustable channel with a maximum of 240W output (20A, at 12V output) and a voltage range of 5-20V or 20-28V.

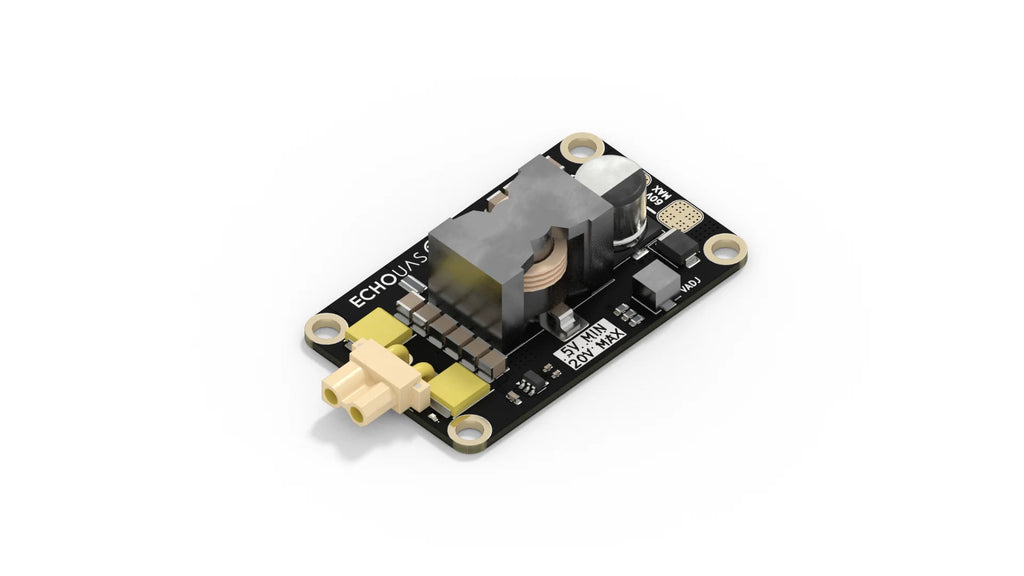

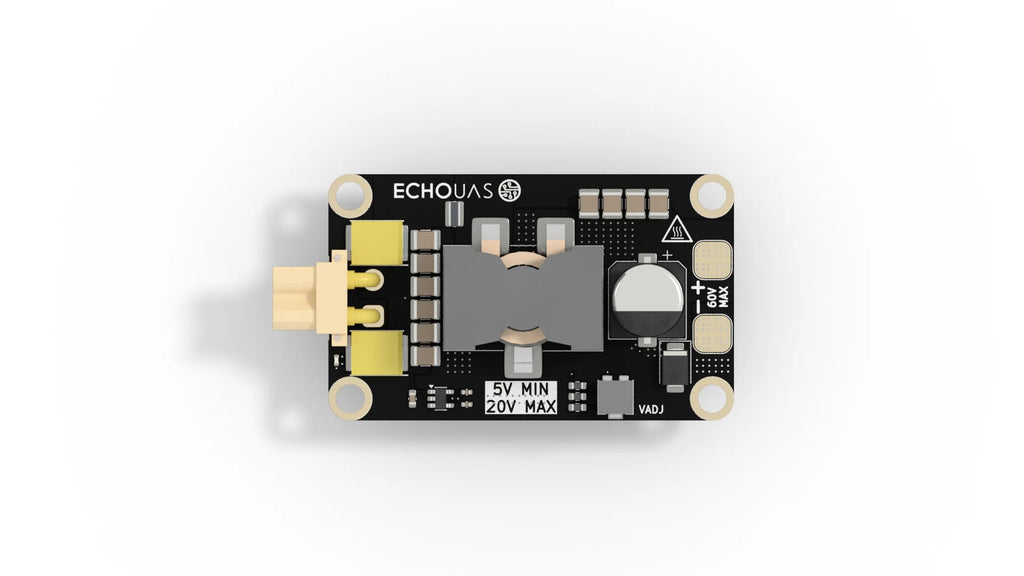

The board features an included heatsink and cover, with mounting tabs to be mounted in a variety of scenarios, which can also be removed should they not be needed. The voltage is adjustable via a small potentiometer.
Features
- Compact size at 56mm x 34mm x 12mm
- Surge protected input
- XT-60 Compatible Input capable of 14S Lipo (60V Absolute maximum).
- Robust XT30 output connectors for adjustable channels
- 96% maximum efficiency (may vary depending on input/output conditions)
- High switching frequencies for fast transient response.
- Capable of sustained full load (1min) with no airflow on 12S Li-Po.
Includes
- 1x 1CH Power management board
