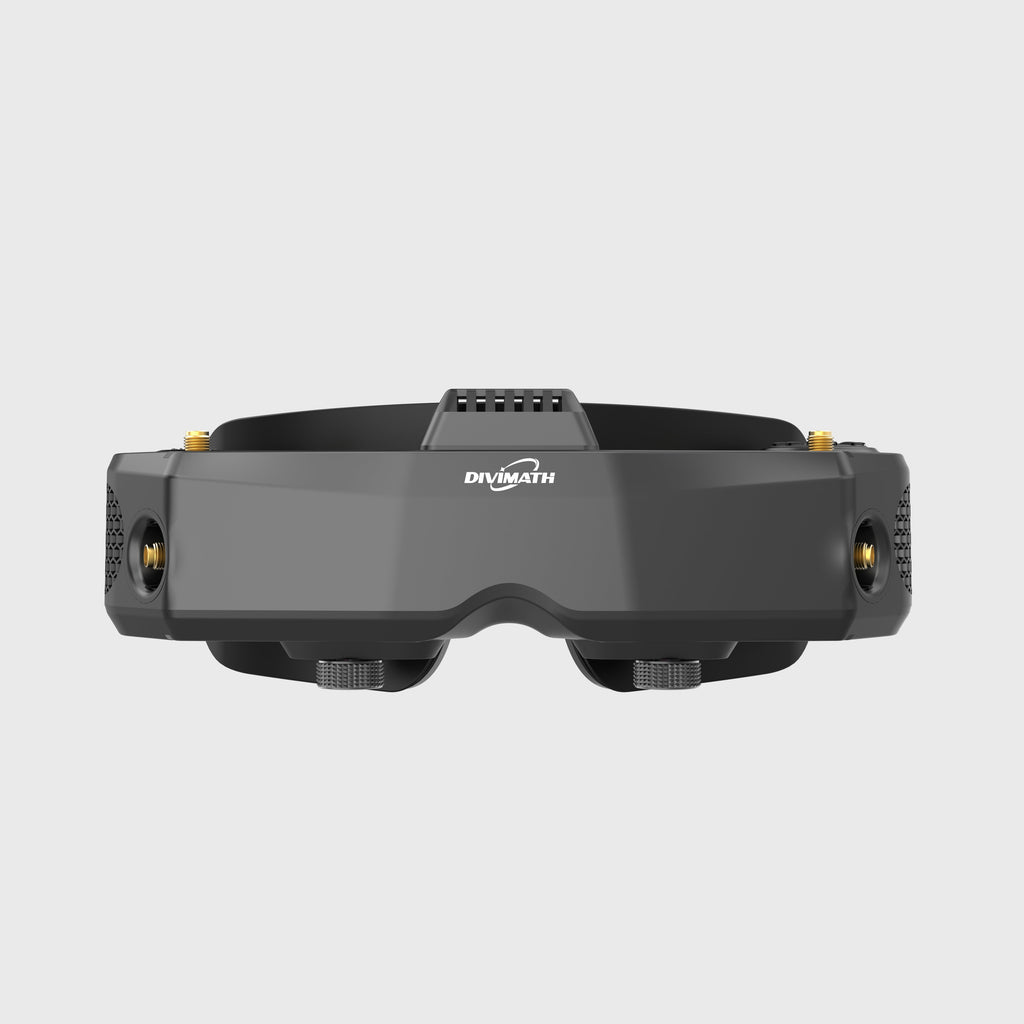

Divimath Goggle

Professional Encrypted Digital and Multi-Band Analog FPV Headset

The Divimath Goggle is a professional-grade FPV headset built for pilots and integrators who require secure digital video, exceptional analog reception, ultra-low latency, and flexible operation across multiple frequency bands.

For digital operation, the goggle supports encrypted Divimath video transmission with no additional latency, helping protect the video feed against unauthorized viewing. For analog operation, its integrated high-sensitivity 5.8GHz receiver delivers industry-leading weak-signal reception without requiring an external module. The optional Analog Expansion Bay adds support for additional analog frequency bands, including 3.3GHz.

A dedicated 3.5mm PPM input allows the goggle to receive channel commands from a compatible RC controller. This enables rapid, synchronized frequency hopping with encrypted Divimath digital video, conventional analog video, and multi-band analog systems operating across frequencies such as 5.8GHz and 3.3GHz.

The result is a single NDAA-compliant headset designed to support secure digital video, integrated 5.8GHz analog, expanded analog frequency coverage, and external HDMI video sources.

Encrypted Digital Video

• Secure digital video: Supports encrypted Divimath digital video to help protect the video feed against unauthorized reception and viewing.
• No added encryption latency: Video encryption does not increase the system's ultra-low latency.
• Mission-focused operation: Designed for government, defense, commercial, and other applications where an openly viewable video feed is unacceptable.
• Ultra-low-latency digital video: Less than 3ms glass-to-glass latency, depending on the selected video mode.
• Encrypted frequency hopping: Rapid channel changes can be used while operating an encrypted Divimath digital video link.
• Built-in digital DVR: Record received Divimath digital video using the integrated H.264 DVR.

Industry-Leading Analog Video Support

• Integrated high-sensitivity 5.8GHz analog receiver: Excellent weak-signal reception and clear analog video without requiring an external receiver module.
• Optional Analog Expansion Bay: Add a compatible analog receiver module for additional frequency bands, including 3.3GHz.
• Multi-band analog operation: Use the integrated 5.8GHz receiver together with an expansion receiver for operation across multiple analog frequency bands.
• Ultra-low-latency analog processing: Less than 2ms latency through the integrated deinterlacer.
• Analog DVR recording: Record received analog video directly using the built-in H.264 DVR.
• Rapid analog startup: Access the integrated analog receiver within seconds of powering on the headset.
• Advanced analog controls: Supports multiple analog bands, automatic scanning, loop scanning, selectable aspect ratios, and configurable analog display modes.

RC-Controlled Rapid Frequency Hopping

• 3.5mm PPM control input: Connect the goggle to a compatible RC controller or transmitter using a 3.5mm PPM cable.
• Synchronized channel changes: The aircraft video transmitter and goggle receiver can follow the same RC switch command, keeping both ends of the video link on the selected channel.
• Encrypted digital frequency hopping: Rapidly change between configured Divimath digital channels while maintaining digital video encryption.
• Analog frequency hopping: Rapidly change between configured analog channels using the integrated receiver.
• Multi-band analog hopping: Switch between frequency bands such as 5.8GHz and 3.3GHz when the optional Analog Expansion Bay and a compatible receiver module are installed.
• Flexible RC integration: Video channel selection can be assigned to a switch or other control on a compatible RC transmitter.

Frequency-hopping operation requires compatible aircraft-side video transmitter control, RC configuration, and supported receiver hardware. Multi-band analog operation requires the optional Analog Expansion Bay and a compatible analog receiver module.

Key Differentiators

• Encrypted Divimath digital video: Helps protect the digital video feed against unauthorized viewing without adding latency.
• Industry-leading analog reception: Integrated high-sensitivity 5.8GHz analog receiver with ultra-low-latency processing.
• Expandable analog frequency coverage: Add compatible receiver modules for frequencies such as 3.3GHz using the optional Analog Expansion Bay.
• RC-controlled rapid frequency hopping: A 3.5mm PPM input enables synchronized channel selection for encrypted digital, analog, and multi-band analog video systems.
• Multi-system compatibility: Supports Divimath digital video, integrated 5.8GHz analog, expansion-bay analog modules, and HDMI input.
• Professional optics: Fully enclosed, dust-resistant optical assembly with sharp edge-to-edge clarity and less than 1.5% distortion.
• Ultra-low latency: Less than 3ms with Divimath digital video, less than 2ms with analog video, and less than 1ms through HDMI input.
• NDAA compliant: Suitable for commercial, government, defense, and regulatory-sensitive applications.
• Protective transport: Includes a hard-shell travel case.

Video Inputs and Latency

• Divimath encrypted digital video: Less than 3ms glass-to-glass latency, depending on the selected video mode.
• Integrated 5.8GHz analog receiver: Less than 2ms processing latency.
• Analog Expansion Bay: Supports compatible third-party receiver modules for additional frequency bands.
• HDMI input: Less than 1ms input latency.
• 3.5mm AV input: Supports compatible external analog video and audio sources.

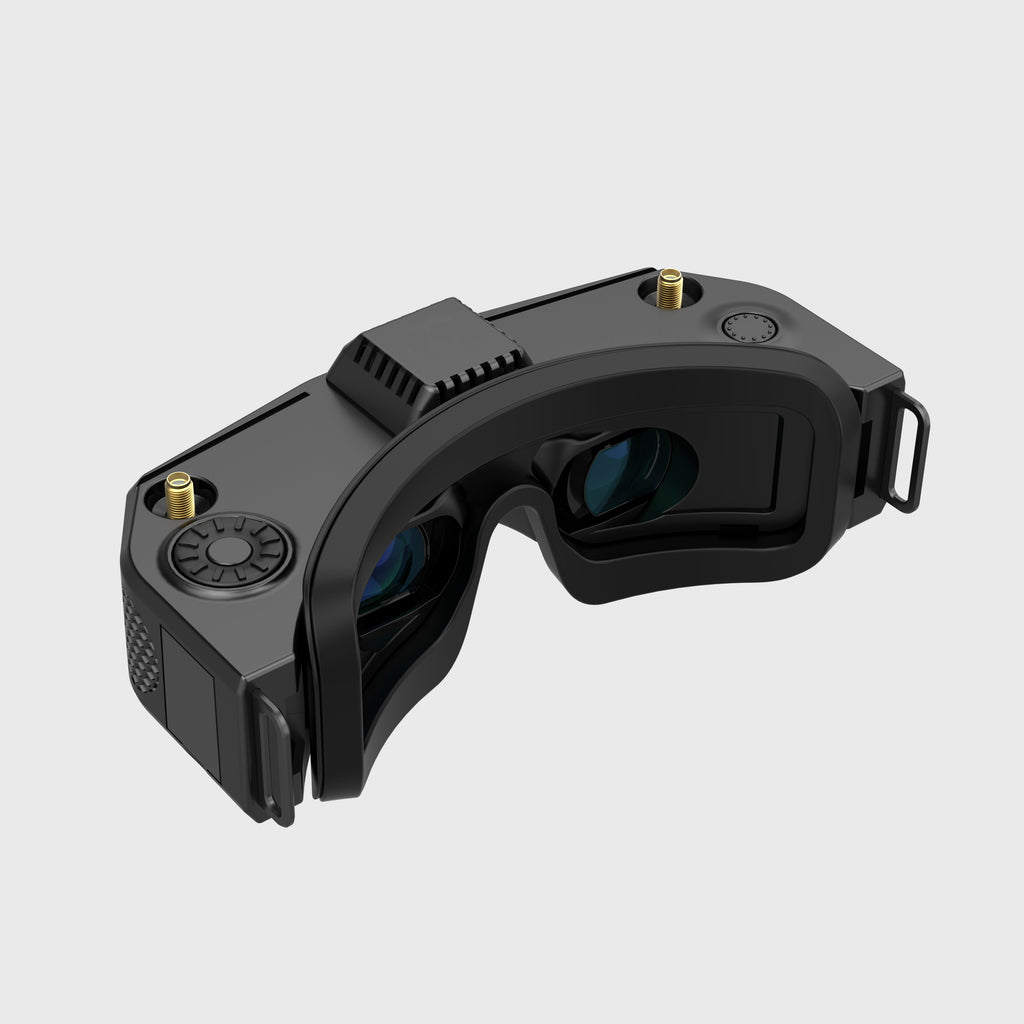

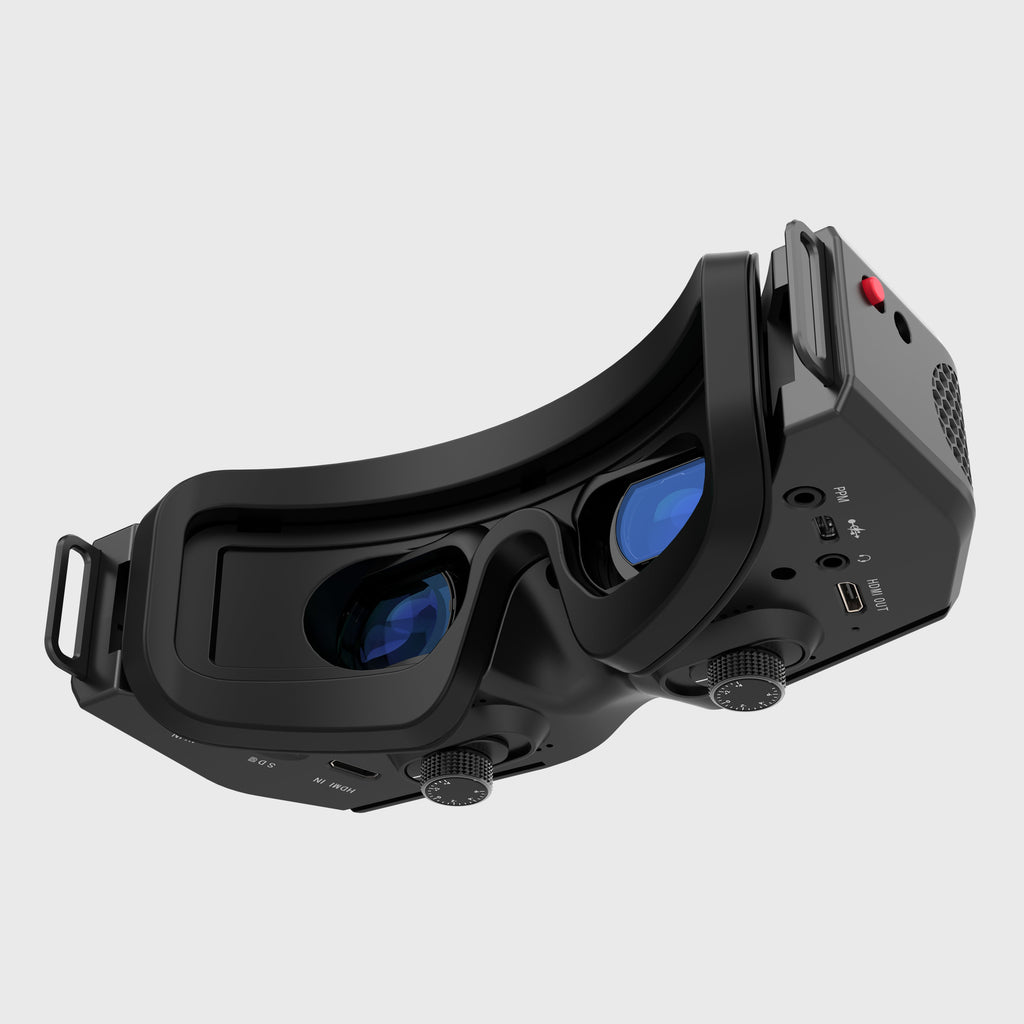

Display and Optics

• Full HD 1920 × 1080 OLED microdisplays
• 90Hz display refresh rate
• 46-degree field of view
• Adjustable interpupillary distance: 58–72mm
• Focus adjustment: +4 to -7 diopters
• Supports corrective diopter lens inserts
• Fully enclosed, dust-resistant optical assembly
• Less than 1.5% optical distortion

Advanced Features

• Encrypted Divimath digital video reception with no added latency
• 3.5mm PPM input for RC-controlled video channel selection and rapid frequency hopping
• Frequency-hopping support for encrypted digital, analog, and multi-band analog video configurations
• Built-in H.264 DVR records Divimath digital, analog, and HDMI video inputs

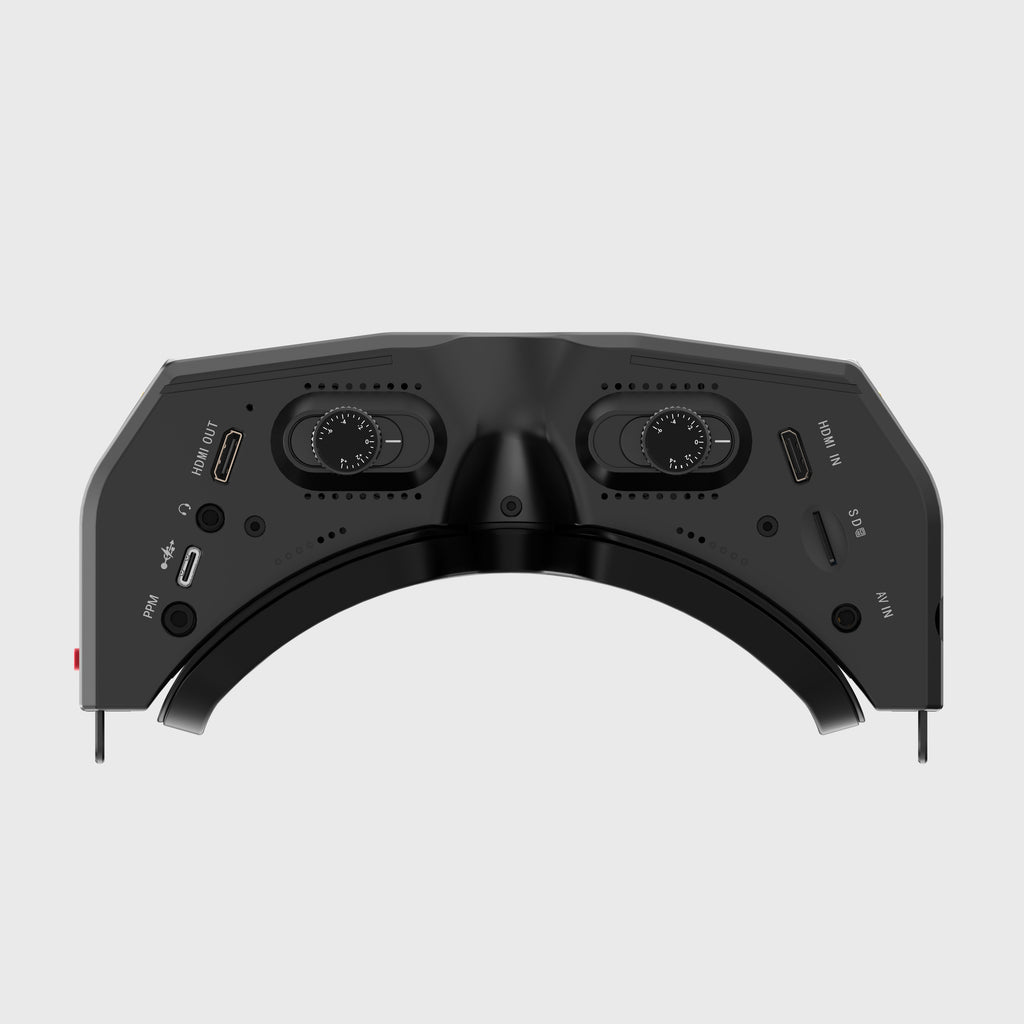

• HDMI input and HDMI output for integration with external video systems
• Integrated 3.5mm AV input
• Audio input and output with microphone support
• Optional Analog Expansion Bay supports compatible third-party receiver modules

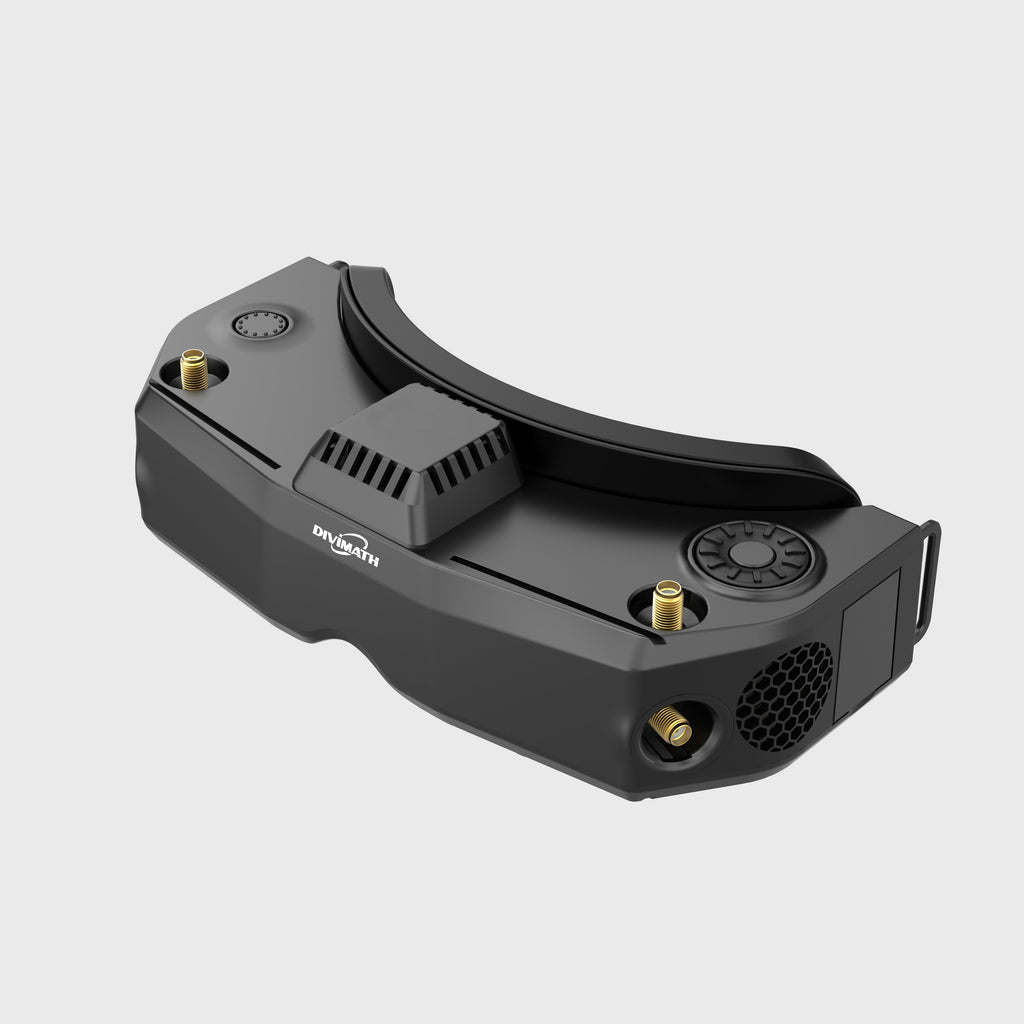

• Three independently controlled internal fans for cooling and anti-fog performance
• Selectable 4:3 and 16:9 analog display modes
• Automatic analog channel scanning and loop scanning

Mechanical and Power

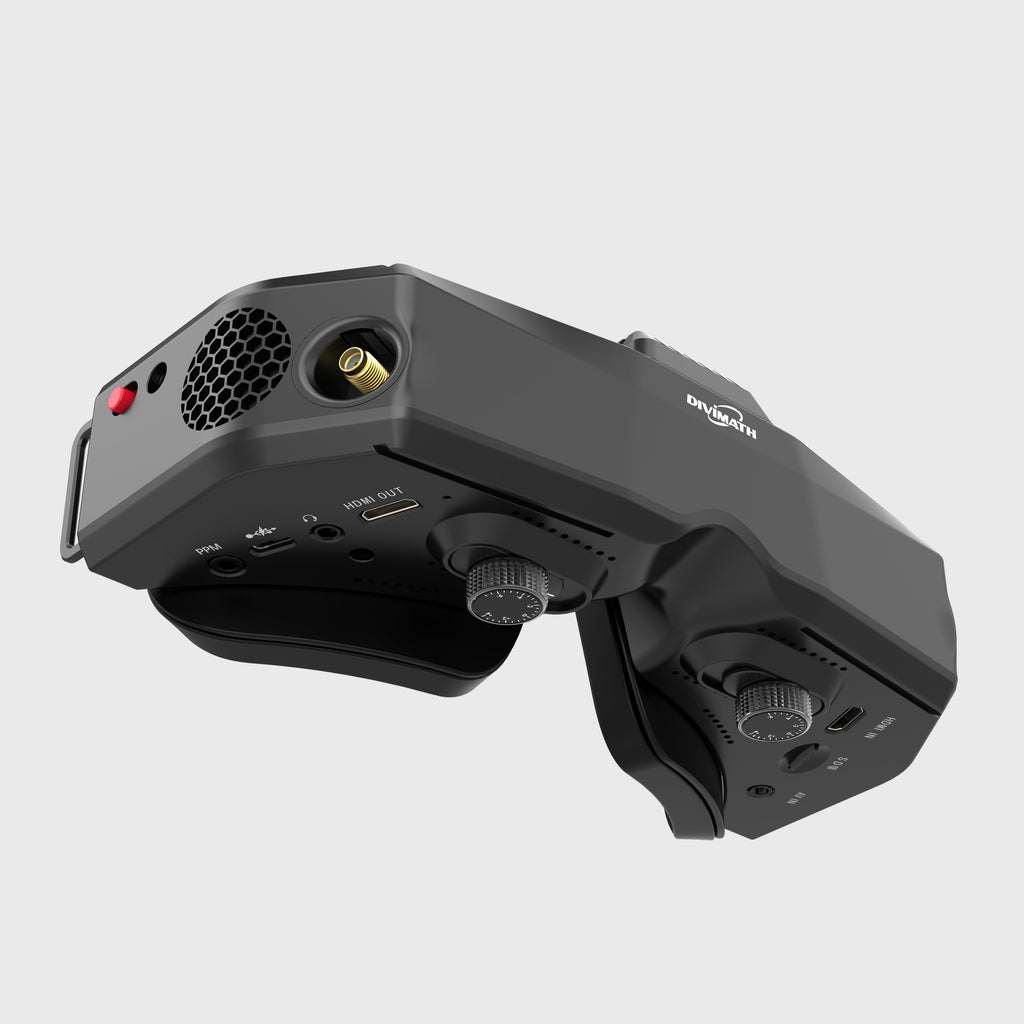

• Recessed SMA antenna connectors allow storage with antennas attached
• Accessory mounting rails for optional antennas and equipment
• Input voltage: 7V–25.2V
• Compatible with 2S–6S LiPo batteries
• Dedicated sliding power switch
• Approximate headset weight: 300g

Technical Summary

Package Includes

• Divimath Goggle headset
• Power cable
• Hard-shell travel case

The Analog Expansion Bay, additional analog receiver modules, 3.5mm PPM cable, RC controller, and aircraft-side video equipment may be sold separately.

Compliance and Origin

NDAA compliant
Country of Origin: Thailand

The Divimath Goggle is designed for pilots and integrators who require secure digital video, dependable analog reception, and flexible multi-band operation. Its encrypted digital video support, integrated high-sensitivity analog receiver, optional analog expansion, and RC-controlled rapid frequency hopping make it particularly well suited to mixed-system deployments where Divimath digital video, 5.8GHz analog, 3.3GHz analog, and HDMI sources must operate through one professional headset.
