Divimath Camera Switcher (3-input)

Divimath Camera Switcher (3-Input)

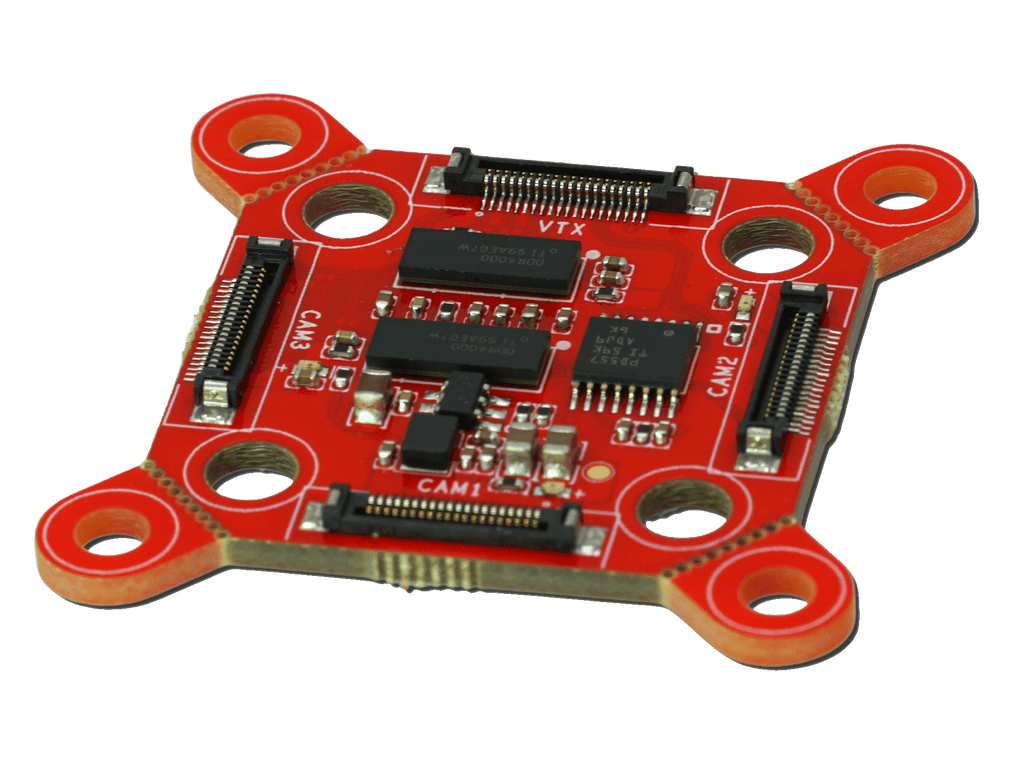

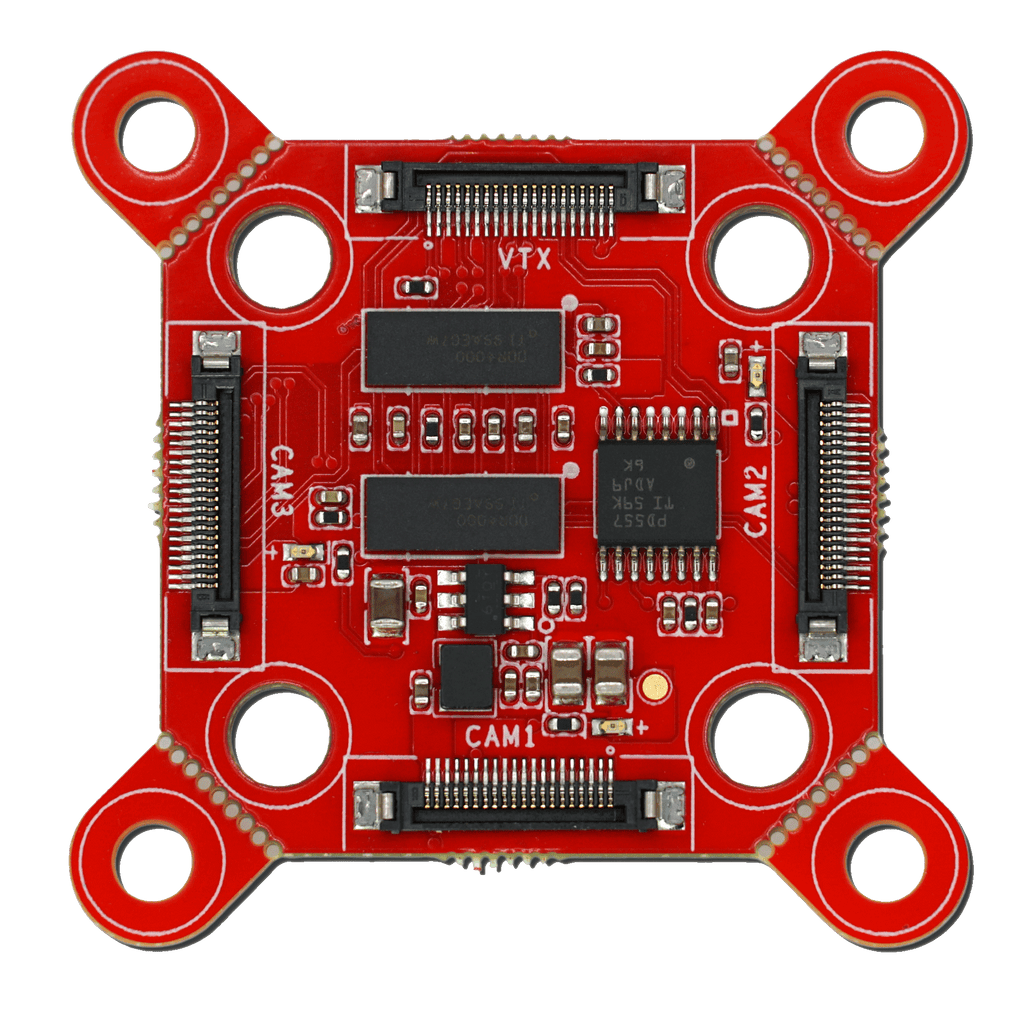

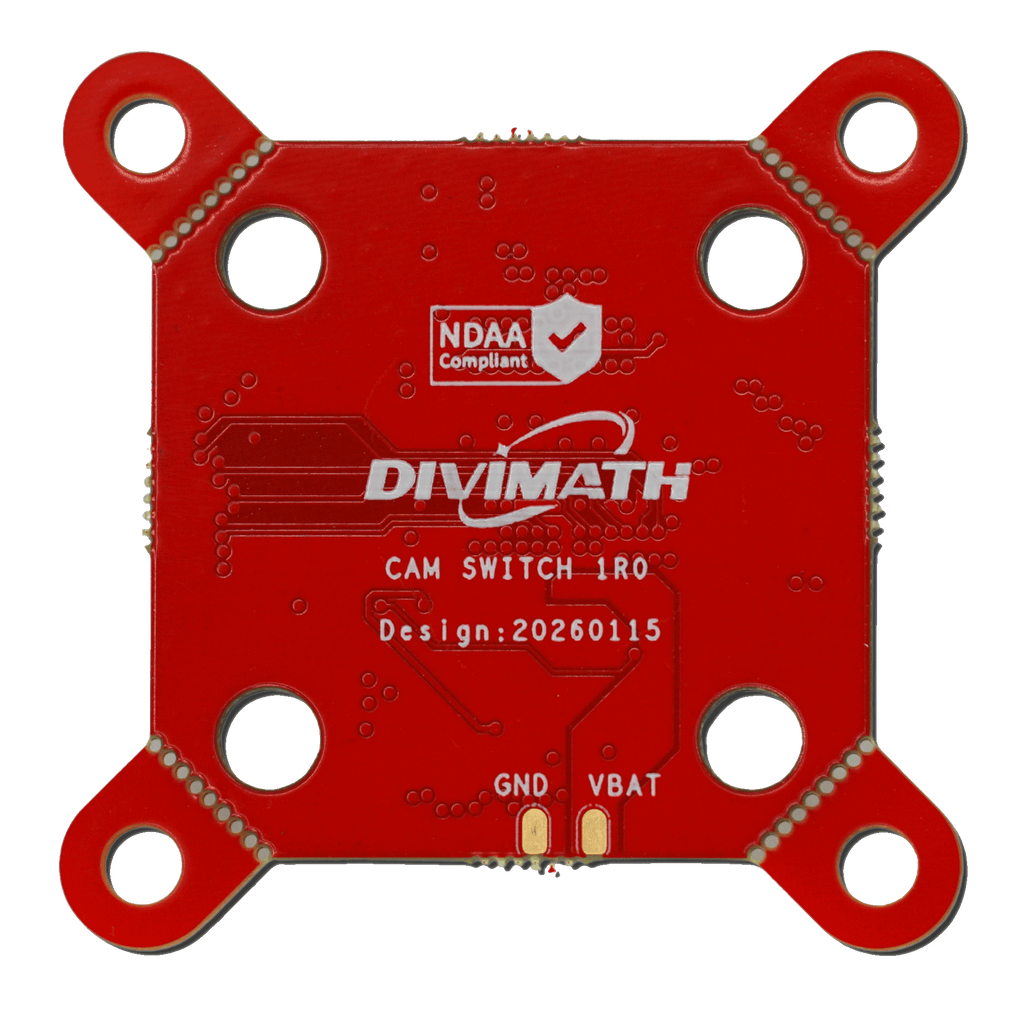

The Divimath Camera Switcher (3-Input) enables fast, reliable switching between up to three digital MIPI cameras using a single MIPI output to your VTX. Designed and manufactured by Divimath, this switcher is built for professional multi-camera digital systems and is NDAA compliant.

It includes both 20×20 and 30×30 mounting patterns for flexible installation across drone stacks, RC platforms, and robotics.

Key Features

• 3-input digital MIPI camera switcher with 1 MIPI output to VTX
• Instant in-flight switching between camera views
• NDAA compliant - designed and manufactured by Divimath
• Works with Betaflight, iNav, and ArduPilot camera control modes
• 20×20 and 30×30 mounting hole patterns
• Powered via VTX/MIPI in for 2-camera configurations (no extra power wiring required)
• External power input required for 3-camera configurations (2-6s)

Common Use Cases

• Forward / downward / rear-view camera systems
• Day vs night builds (IR-cut vs IR-cut-removed cameras)
• Wide-angle vs zoom lens switching
• Robotics and UGV multi-perspective viewing
• Compliance-driven digital video architectures

Camera Switching

Switching can be assigned through your flight controller using standard camera control functions (for example, Cam1 / Cam2 / Cam3 modes where supported). With compatible system firmware, switching is nearly instantaneous and supports distinct camera configurations for each input.

Specifications

• Camera Inputs: 3× Digital MIPI
• Output: 1× Digital MIPI to VTX
• Mount Patterns: 20×20 mm and 30×30 mm
• Video Support: Digital MIPI only (no analog)

A compact, stack-mountable way to add multi-camera capability to digital MIPI builds - from FPV drones to robotics and professional systems.

Compliance and Origin

NDAA compliant
Country of Origin: Thailand
