Description

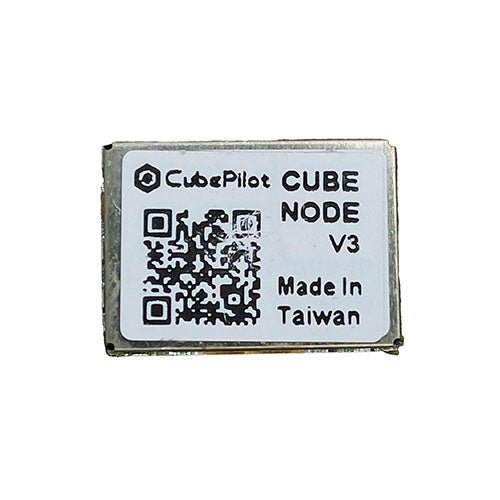

CubeNode 2xCAN, Eth, IMU
The CubeNode™ provides a platform to develop, create, test, and refine components such as navigation systems, communication modules, sensors, payloads, and more. CubeNode™ is based on the high-performance Arm® Cortex®-M7 and Cortex®- M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz and the Cortex®- M4 core at up to 240 MHz. Both cores feature a floating point unit (FPU) which supports Arm® single- and double- precision (Cortex®-M7 core) operations and conversions (IEEE 754 compliant), including a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
CubeNode™ incorporate high-speed embedded memories with a dual-bank Flash memory of 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/O.
Manufactured in Taiwan
*2024 NDAA compliant, all chips and components are sourced and assembled in Allied nations.
What's included:
CP-06313-1111 CubeNode 2xCAN, Eth, IMU
For more details, please check the CubePilot official doc:
https://docs.cubepilot.org/user-guides/cubenode/cubenode-specification
