Description

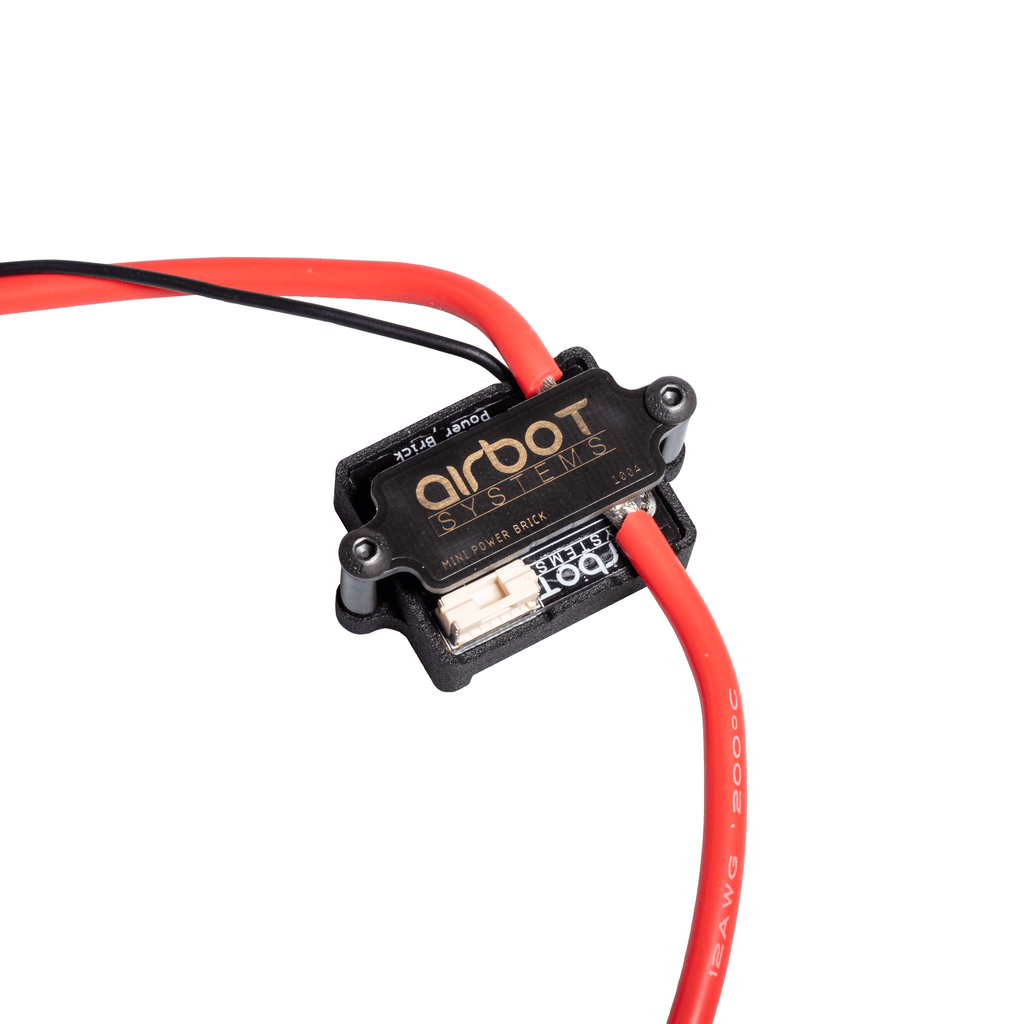

The Airbot Systems Mini Power Brick provides regulated power for the flight controller, as well as information on battery voltage and current consumption.

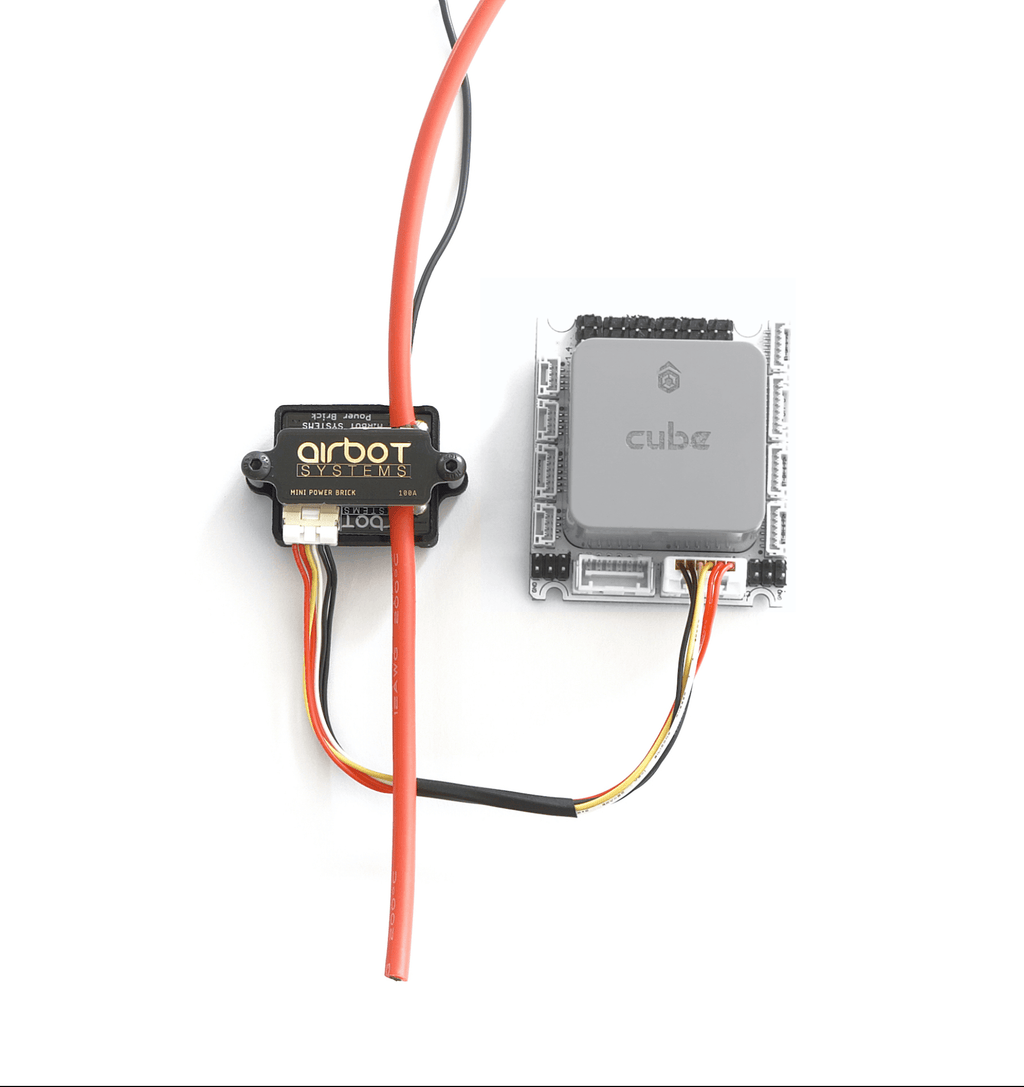

(Mini carrier board and Cube not included)
Airbot Systems Mini Power Bricks encapsulate a high quality switch voltage regulator, that can support up to 12S voltage and 3A continuous power out. It has been developped to be as compact as possible and can be installed in any kind of UAV.
The Mini power bricks integrates built in voltage and current sensing. The voltage & current informations are used to determine the consumed power, and to estimate remaining battery capacity. This in turn allows the flight controller to provide failsafe warnings and other actions in the event of low power.
Technical Specifications:
Dimensions : 44*27*17,6mm
Diam mouting holes : M3
Mounting holes distance : 38mm
Weight : 31g
Max input voltage : 12S
Max current output : 3A
Max peak current : 4A (<few seconds)
Voltage probe : Up to 12S
Max current measurement : 100A
Design, quality control and packed in France
Manufactured in China

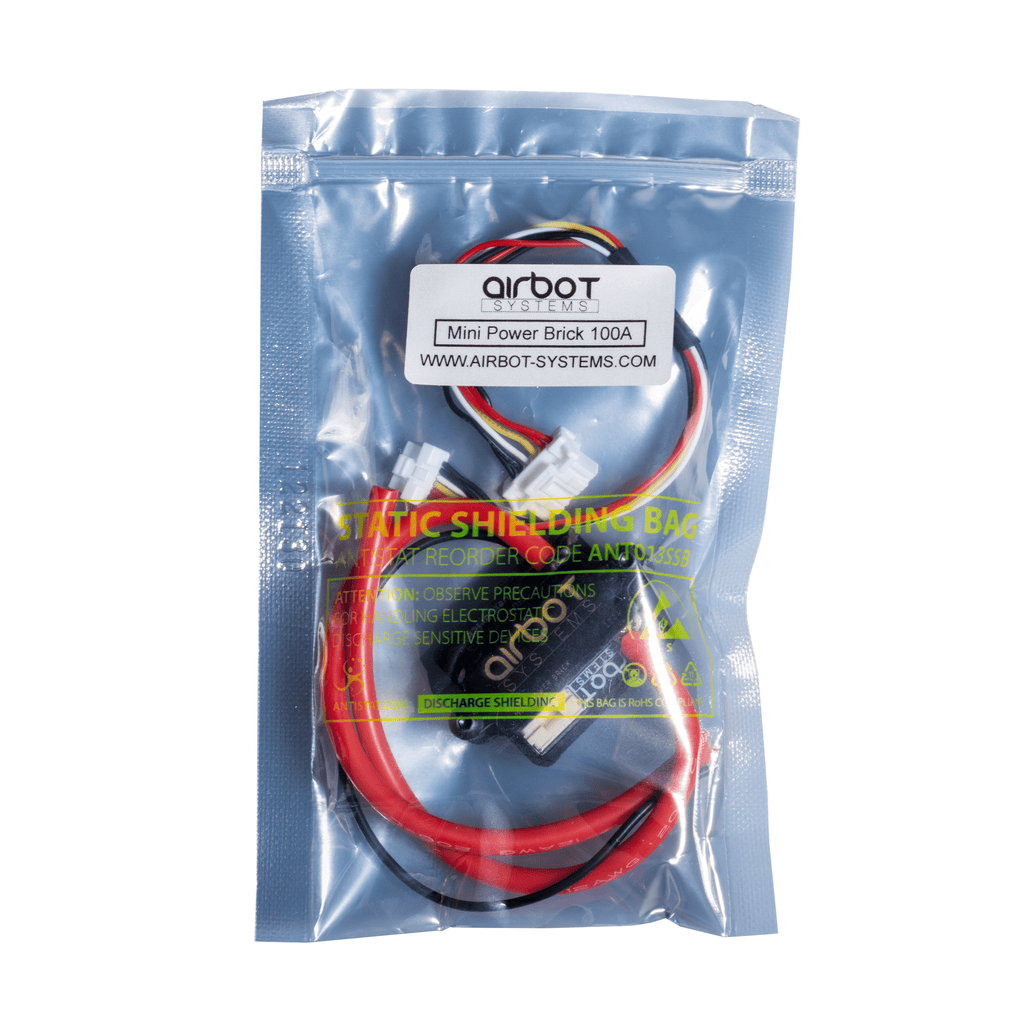

What's included:
HX4-06202 Airbot Mini Carrier Board
1x - Airbot Systems Mini Power Brick
1x - Cable
For more information, please visit:
https://airbot-systems.gitbook.io/airbot-public-wiki/modules/MPB
Product 3D file:
https://www.airbot-systems.com/free-downloads/?lang=en
