Description
The MINI PDB PRO v2 100A is the most efficient set to integrate a Cube dans into a vehicle. This set grants a high level of connectivity in a very compact size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the environment necessary for a complete setup, and in an ultra compact format.
*100 Amp version

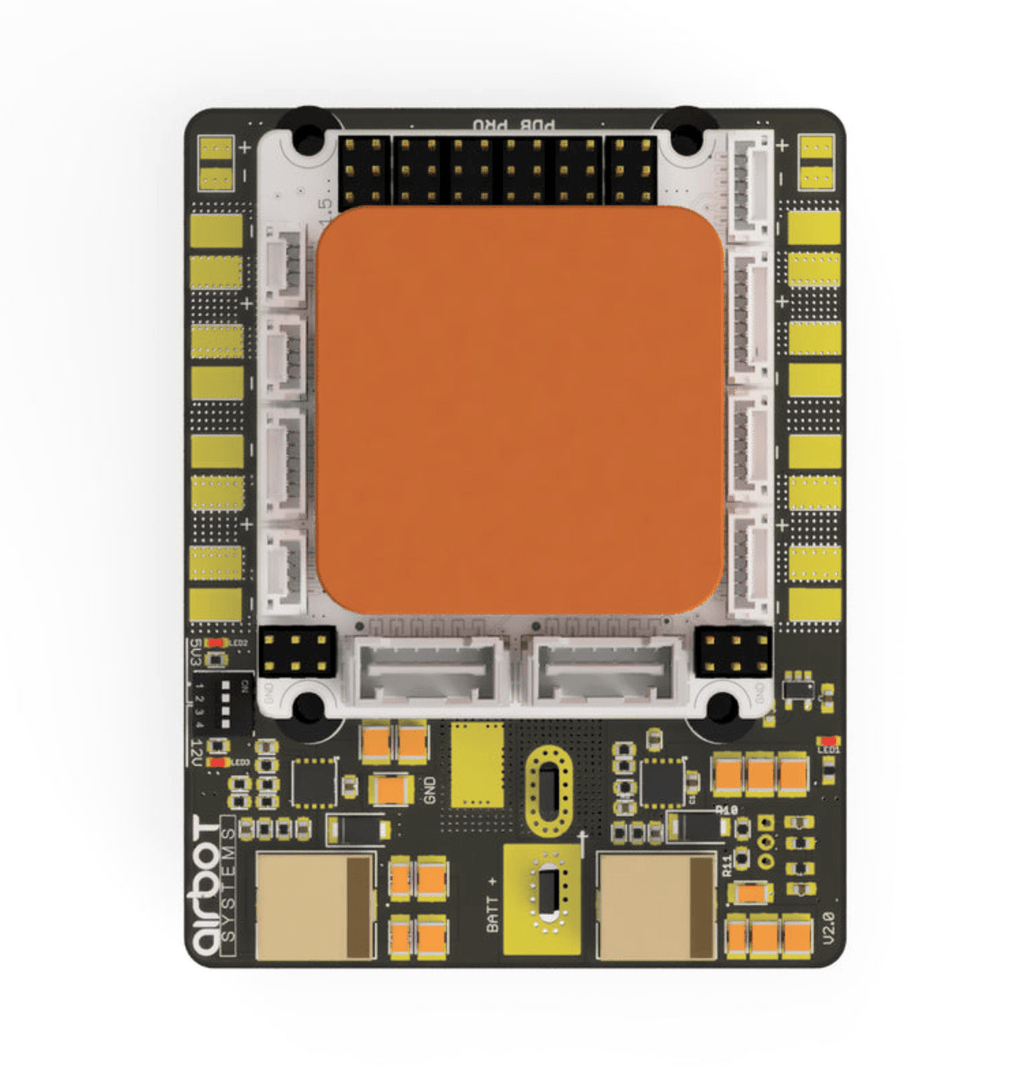

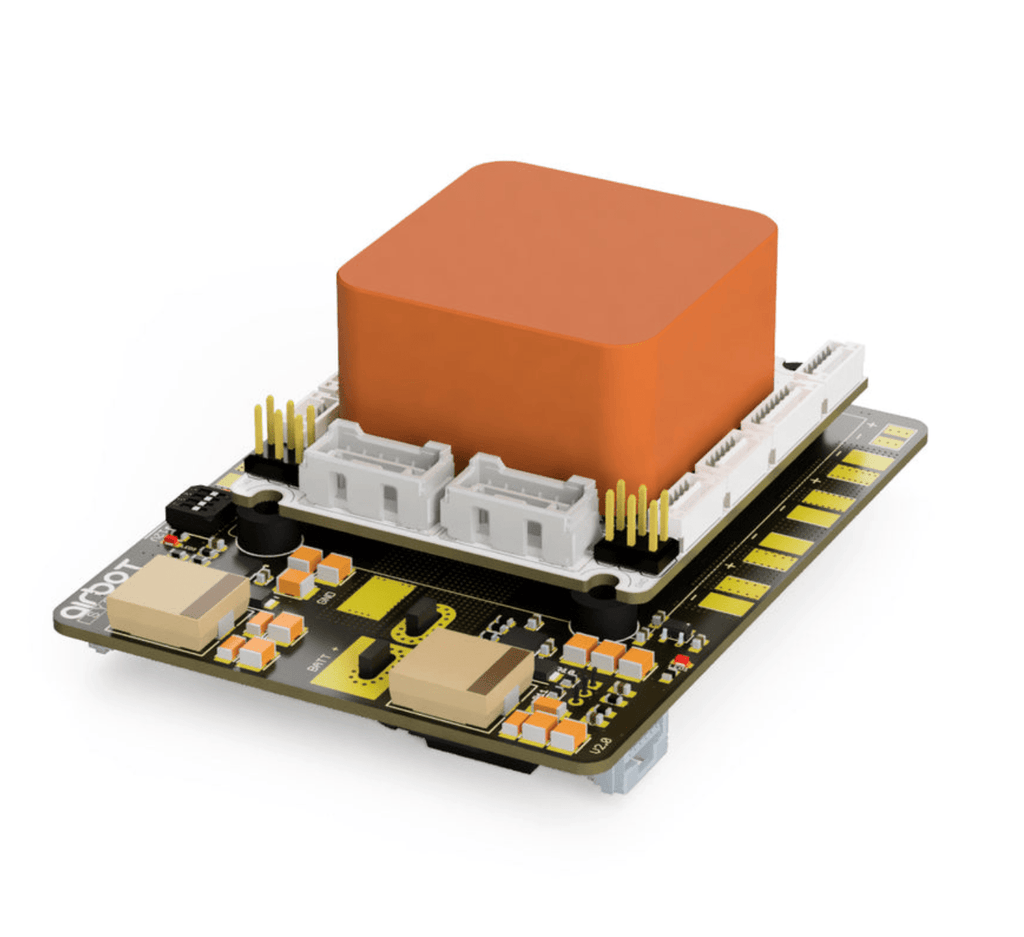

The Pro version integrates a power distribution board which includes two voltage converters, a current sensor and a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly and significant space saving.
*Airbot Mini Carrier Board and Cube not included

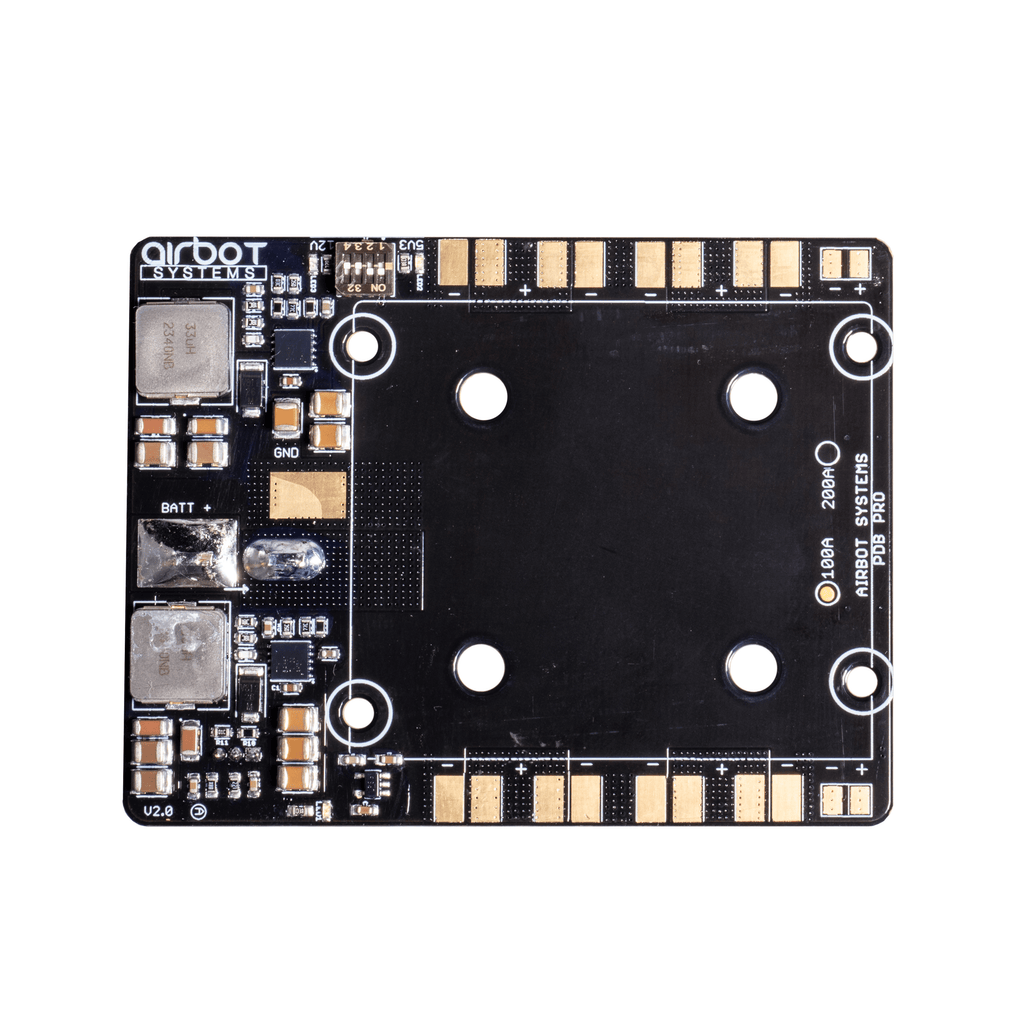

Mini Distribution Board Pro 100A:
Dimensions : 65.5*85mm (2.58*3.35 inch)
Weight : 44gr (0.097lb)
Max current : 100A / 200A
Power supply 1 :
Output voltage : 5.3V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
Power supply 2 :

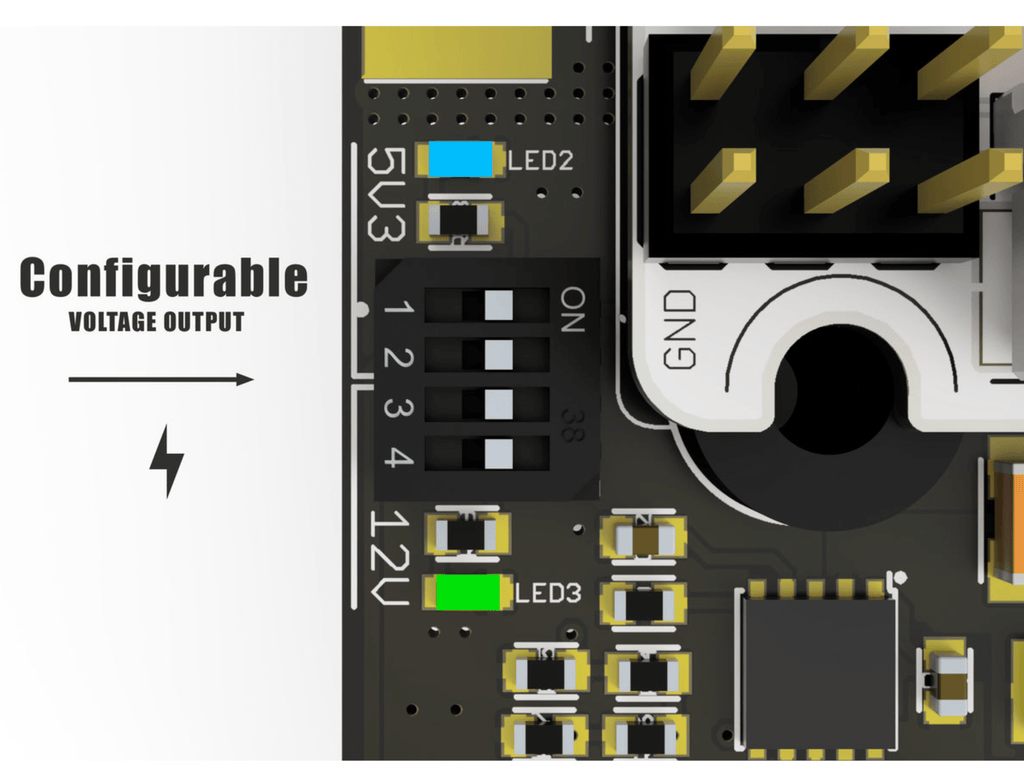

Output voltage : 5.3V or 12V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
TOTAL weight : 68g / 0.150lbs
Design, quality control and packed in France
Manufactured in China

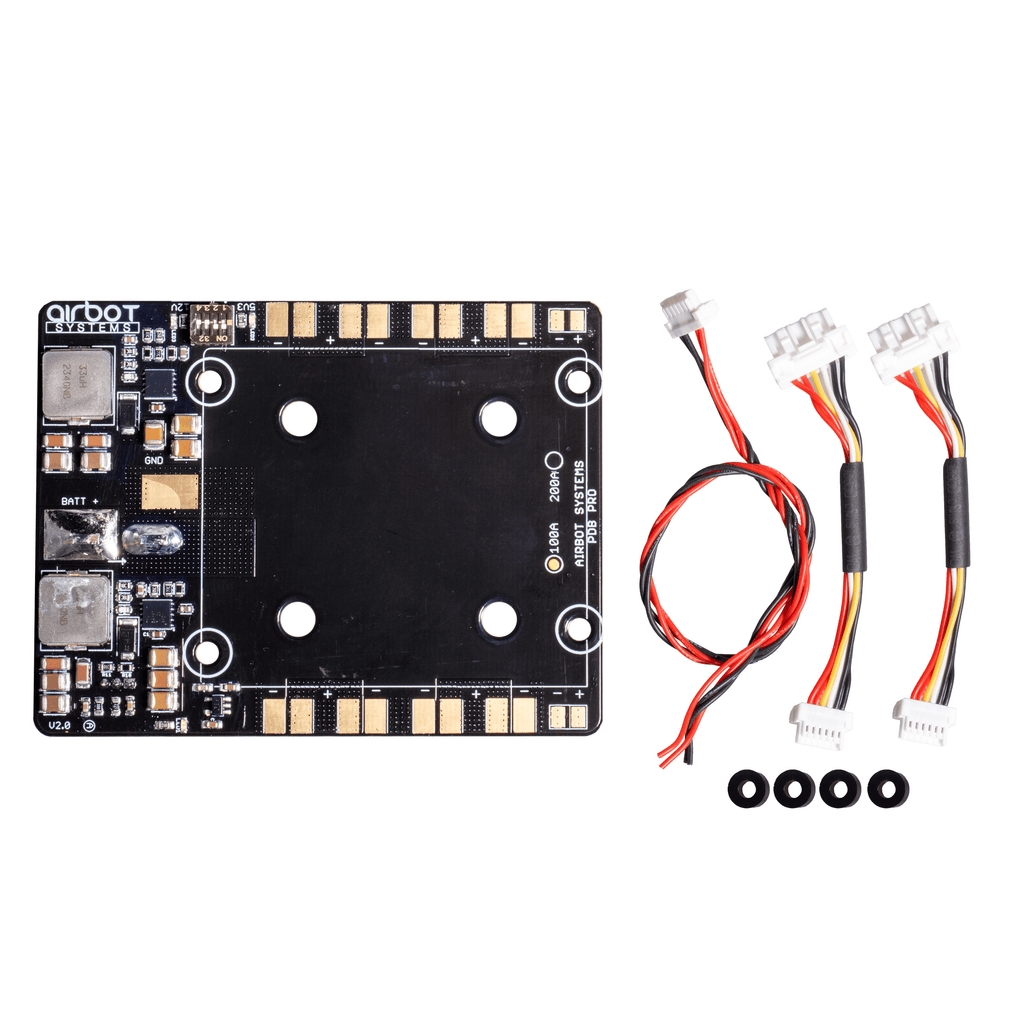

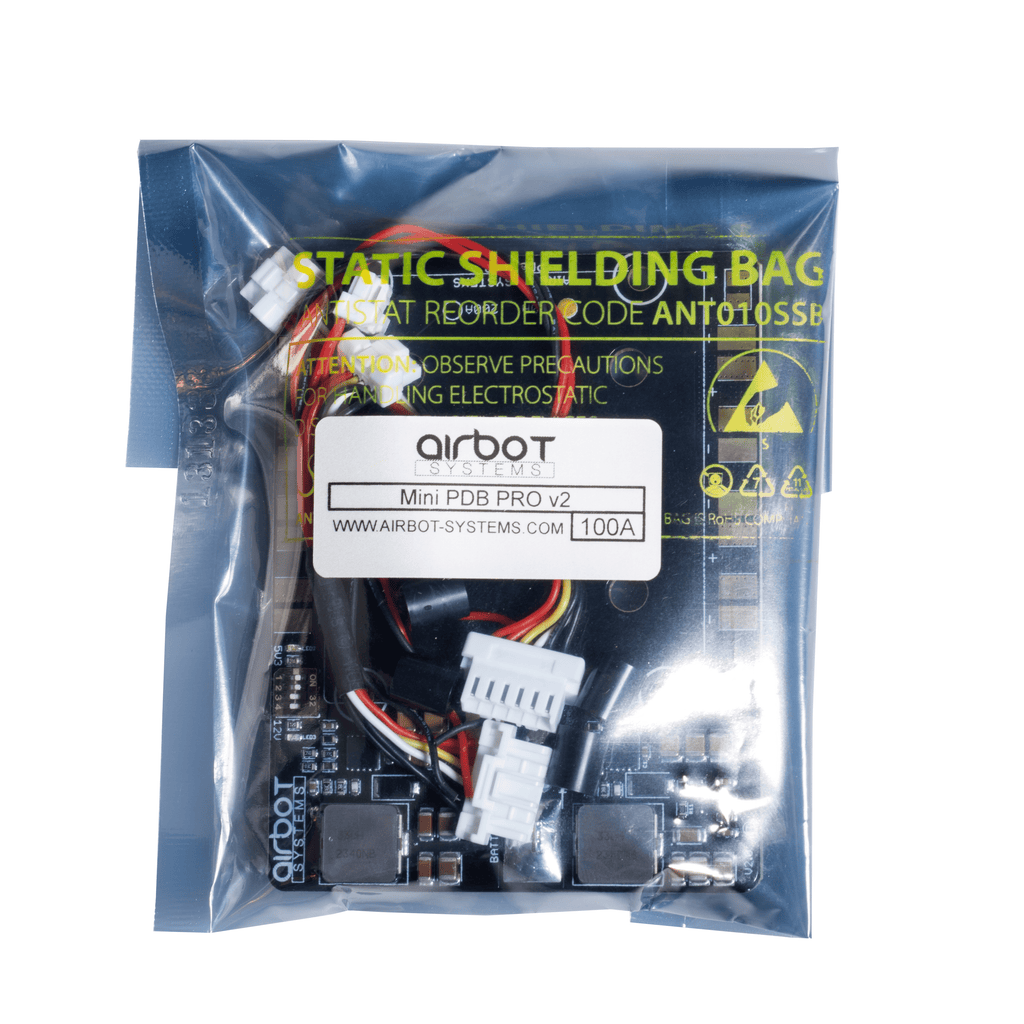

What's included:
1x - Mini PDB Pro v2 100A
4x - M3x8mm nylon spacer
2x - Cube power cable
1x - Accessories power cable
For more information, please visit:
https://airbot-systems.gitbook.io/airbot-public-wiki/combo-pro/v-2.0
Product 3D file:
https://www.airbot-systems.com/free-downloads/?lang=en
