The mini carrier board includes a ‘Power Selection Module’ (PSM worth €60). This module ensures redundancy of the Pixhawk Cube power supplies. If one of the power supplies fails, the PSM switches to the second power supply without power interruption.
Description
This carrier board is compatible with all Cube autopilots.
The Mini carrier Board is one of the best ways to integrate a pixhawk 2.1 cube into a drone. It provides maximum connectivity in a small size. Now accompanied by a Mini PDB, this combo is ideal for installing a cube in any drone, and simplifies the installation of the autopilot, even in small drones. Actual version V1.4
*Cable set not included – sold separately
*Cube sold separately
The Airbot Mini carrier board has been specially designed to allow the installation of a Cube on any drone. It offers complete connectivity in a reduced format:
-2 power ports
-RC input (PPM/S. BUS + 5V)
-Spectrum input + 3.3 v
-Serial ports: 1/2/3/4/5
– I2C + CAN
– GPS1 + GPS2
-PWM signal distribution for motors (up to 8)
-ect… (see user manual)
MINI CARRIER BOARD :

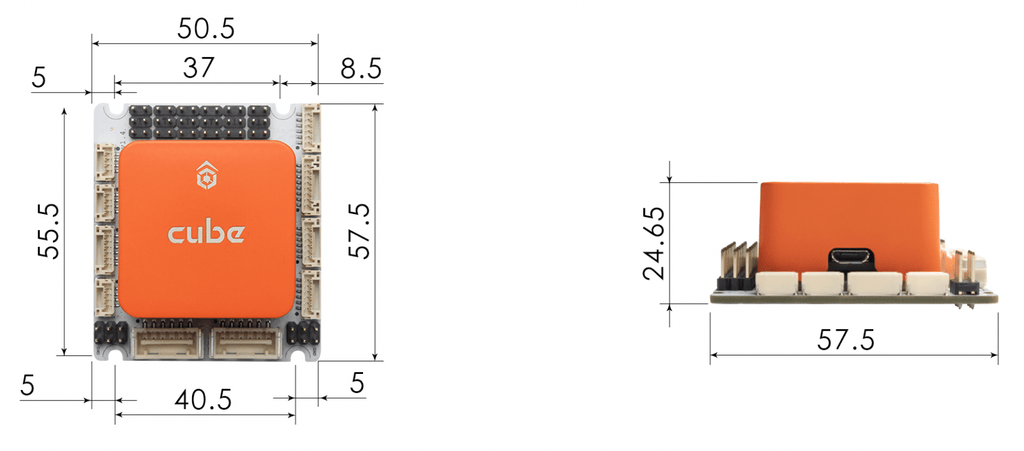

Dimensions : 50.5*57.5mm (1.98*2.26 inch)

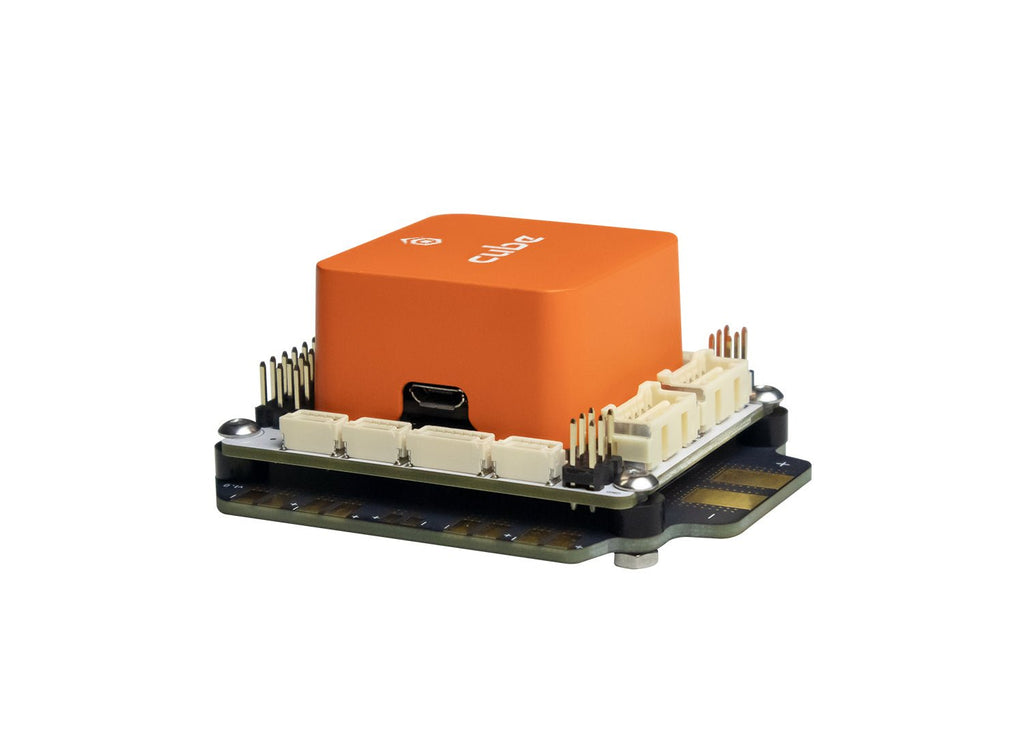

Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)
MINI POWER DISTRIBUTION BOARD :
Dimensions : 60.5*69mm (2.36*2.71 inch)
Weight: 21gr (0.046 lb)
Design, quality control and packed in France
Manufactured in China
What's included:

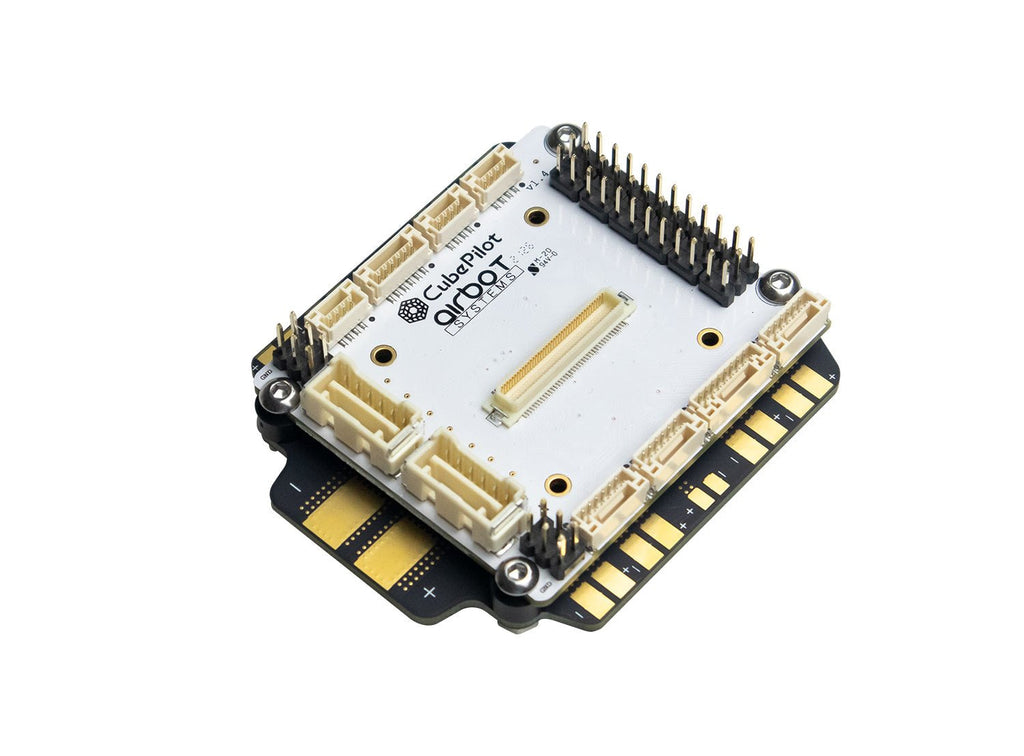

Airbot Mini Carrier Board + PDB Combo
1x - Airbot Mini Carrier Board
1x - Airbot Mini PDB
4x - Nylon spacer M3*4mm
For more information, please visit:
https://airbot-systems.gitbook.io/airbot-public-wiki/mini-carrier-board
Product 3D file:
https://www.airbot-systems.com/free-downloads/?lang=en
