With high performance and flexibility, this switching power supply is a wise choice for all your electronic power needs.
The Airbot Systems switching power supply is a high quality electronic component that provides up to 3A continuously and can withstand momentary spikes of up to 4A. With an input voltage capable of supporting up to 50.4V (12S), it is capable of providing an output voltage of 5V, 5.3V or 12V, user selectable depending on application needs.

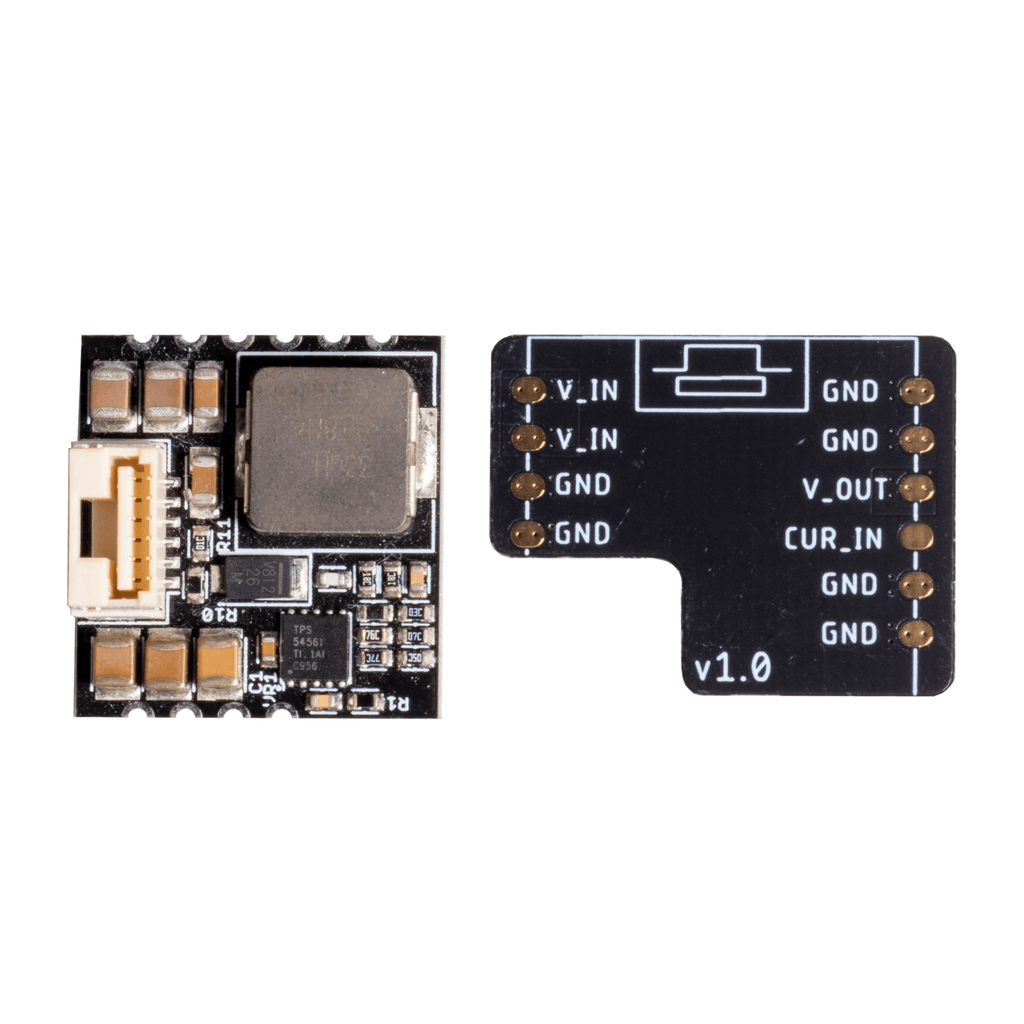

With this switching power supply, you can be sure of getting a reliable and consistent performance, whatever the load. The power supply can be soldered in a stack directly on a motherboard (downloadable 3D footprint and model), or wired using the additional PCB supplied with the product, offering great flexibility for mounting configurations.
Use:
The Airbot Systems switching power supply is ideal for electronic projects, scale models, drones, robots and other electronic devices requiring quality power. This power module can be easily integrated into a variety of mounting configurations, providing great flexibility for projects development.
The module incorporates a voltage divider bridge which can be used to measure the input voltage.
– Supports up to 50.4V input (12S)
– Provides up to 3A continuously, and supports momentary spikes up to 4A
– User selectable output voltage: 5V, 5.3V or 12V
– Optional PCB included for stack or wired use
Dimensions :
Power module only : 24*23*6,15mm / 0,94*0,90*0,24in (without cable)
Assembled with the optional PCB : 29*23*6,15mm / 1,14*0,90*0,24in (without cable)
Design, quality control and packed in France
Manufactured in China

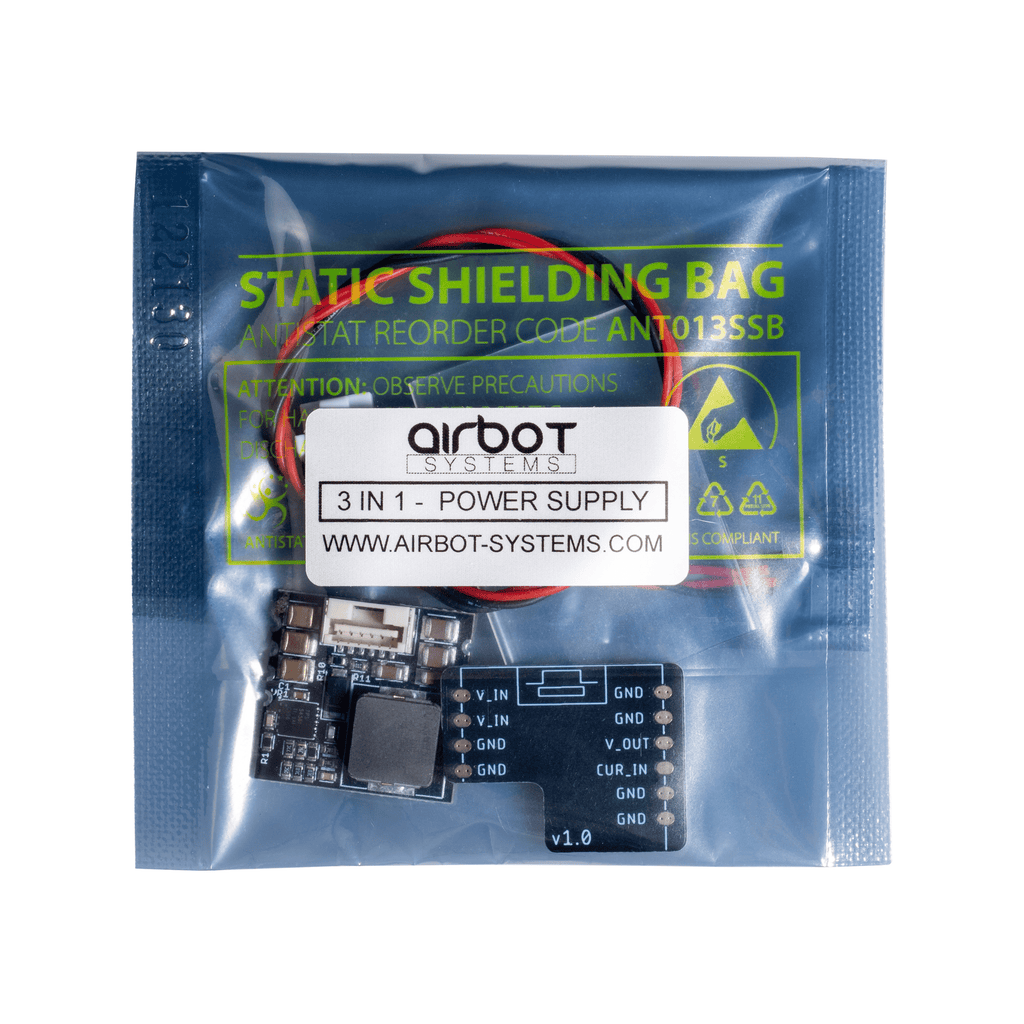

What's included:
Airbot 3-IN-1 Power Supply
1x - 3-in-1 Power module
1x - PCB for wired mounting
1x - 6cm cable (Molex ClickMate 6P 1.25mm to Molex ClickMate 6P 2.00mm)
For more information, please visit:
https://www.airbot-systems.com/produit/airbot-systems-power-supply/?lang=en#1703689389900-caf6349a-b8e6
