Description

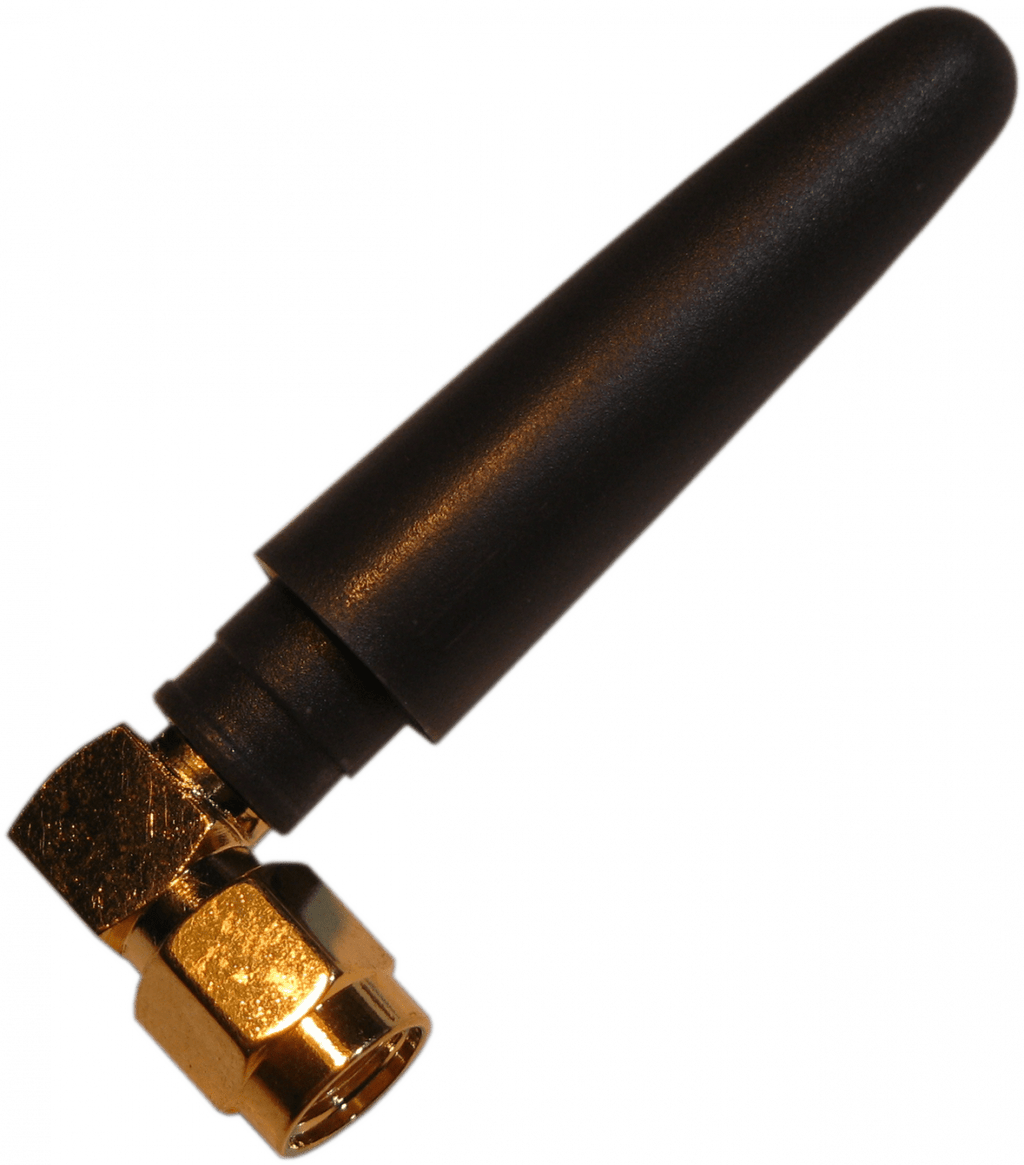

900MHz quarter wave monopole antenna with RP-SMA connector, 90 degree connector mounting.
This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size.
It must be mounted on a ground plane to achieve the best performance.

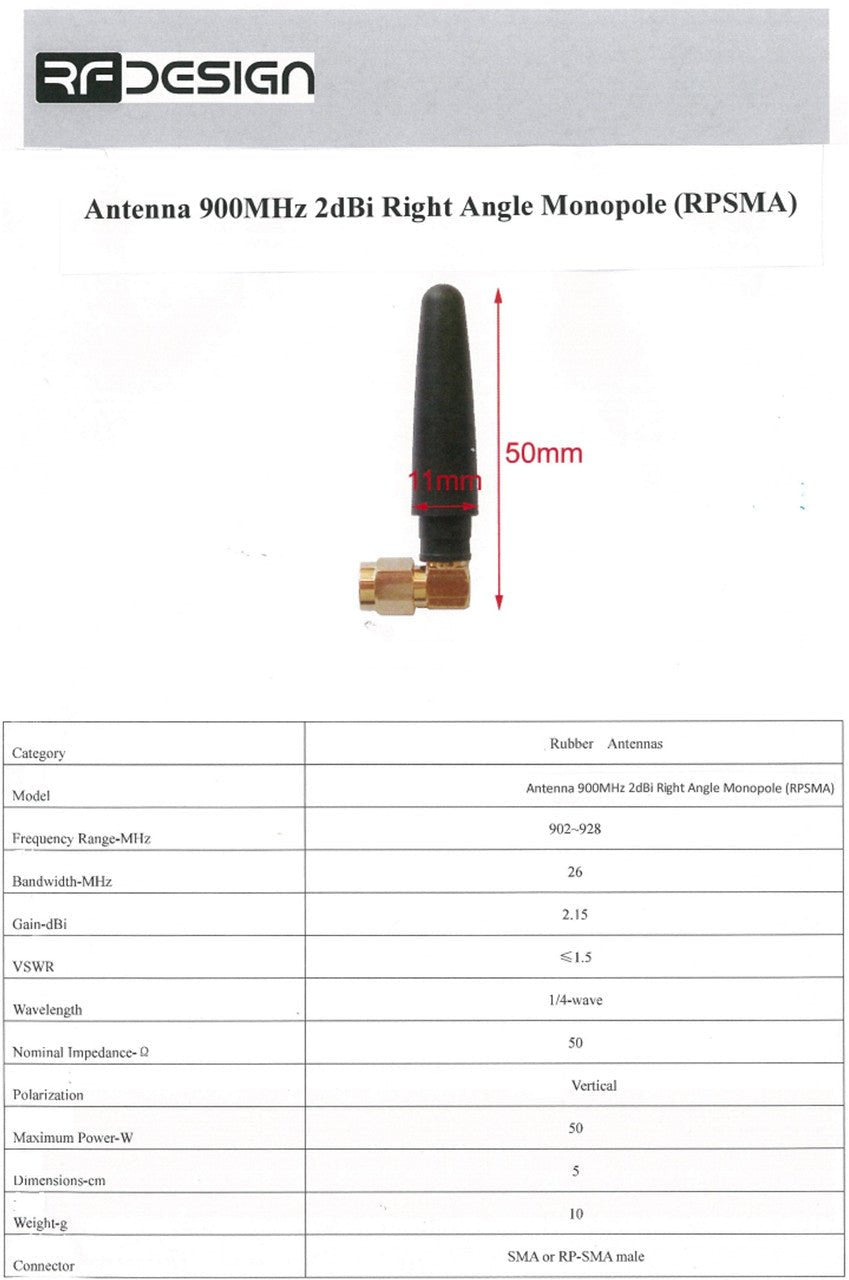

Specifications:
- Frequency range: 902-928MHz
- Gain: 2.1dBii
- VSWR: < 1.5
- Impedance: 50R
- Polarisation: Vertical
- Size: 52.2 mm long, 10.5 mm diameter at base
- Weight: 7.4g
SKU: ANT-900-RA-1/4W-RPSMA
Manufactured in China
What's included:
900MHz 2dBi Right Angle Monopole Antenna
1x - 900MHz 2dBi Right Angle Monopole Antenna
