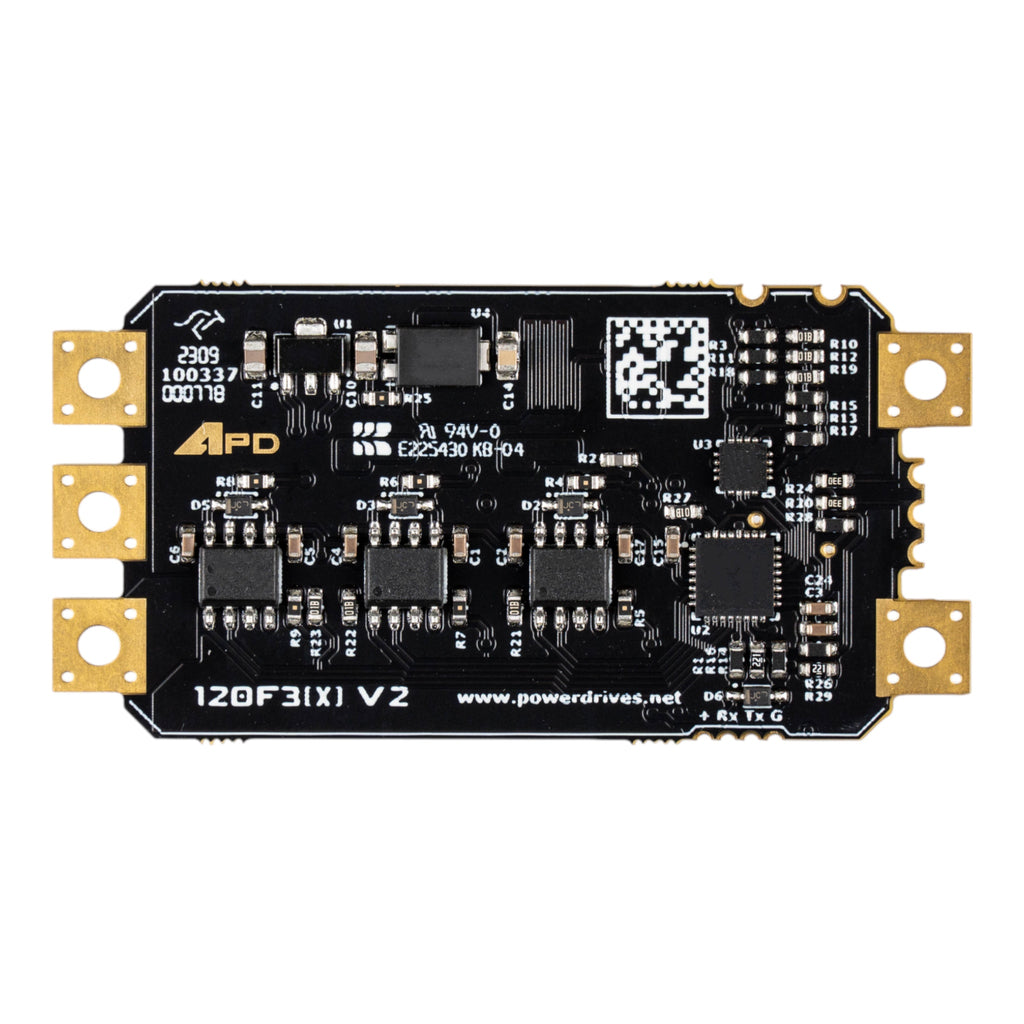

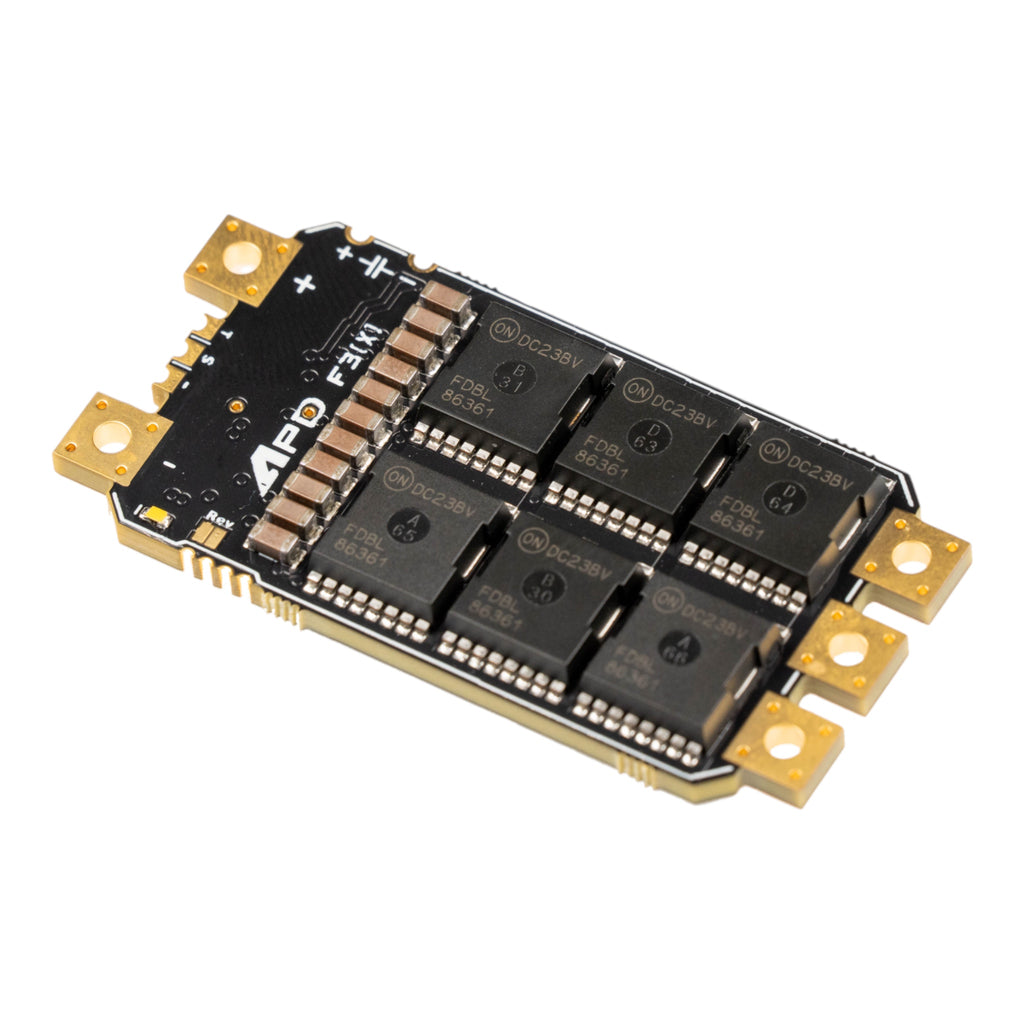

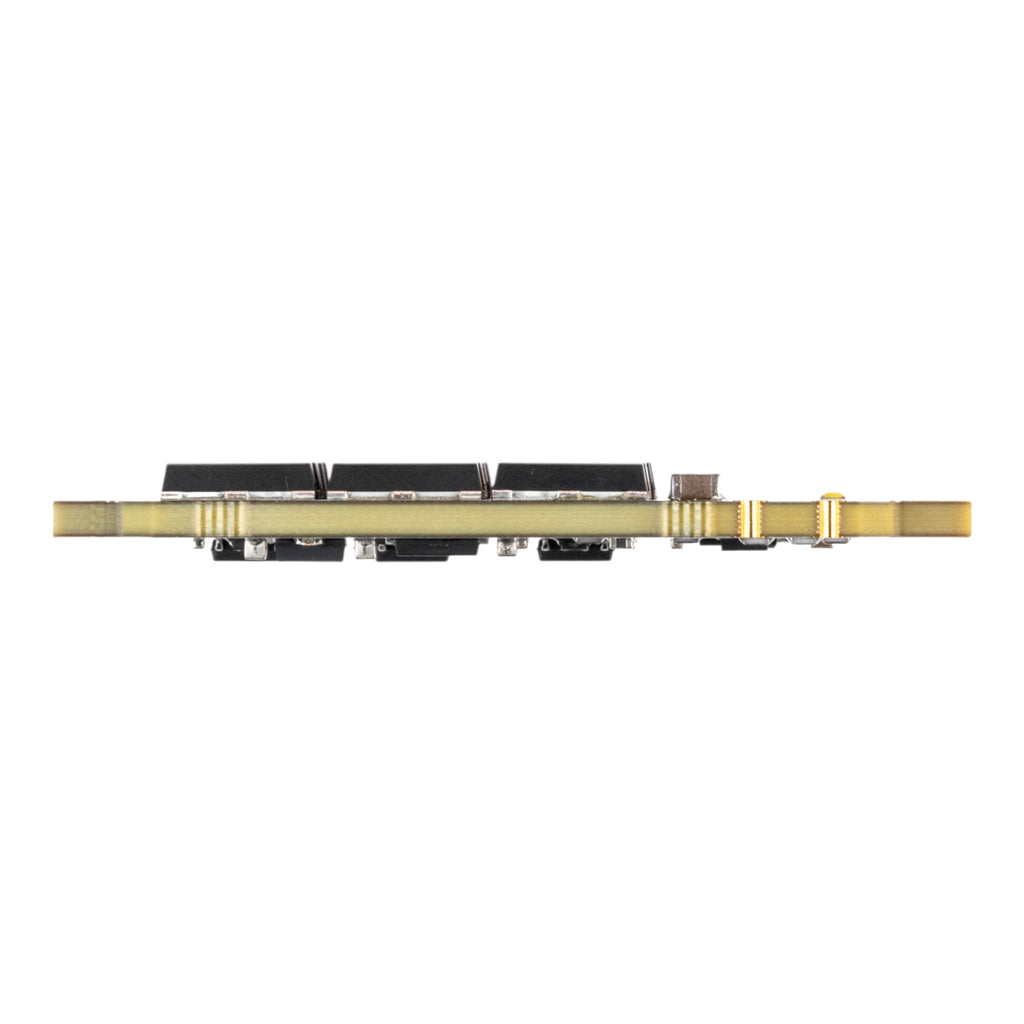

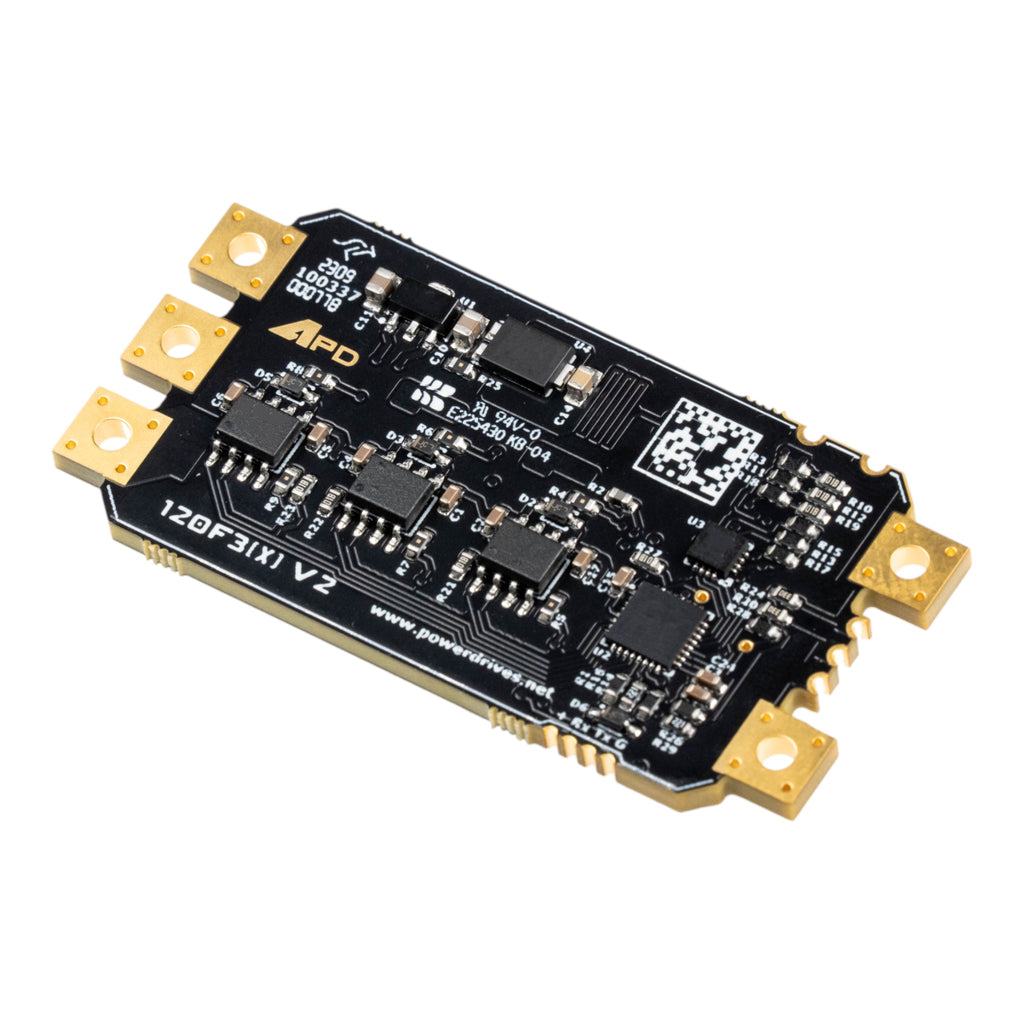

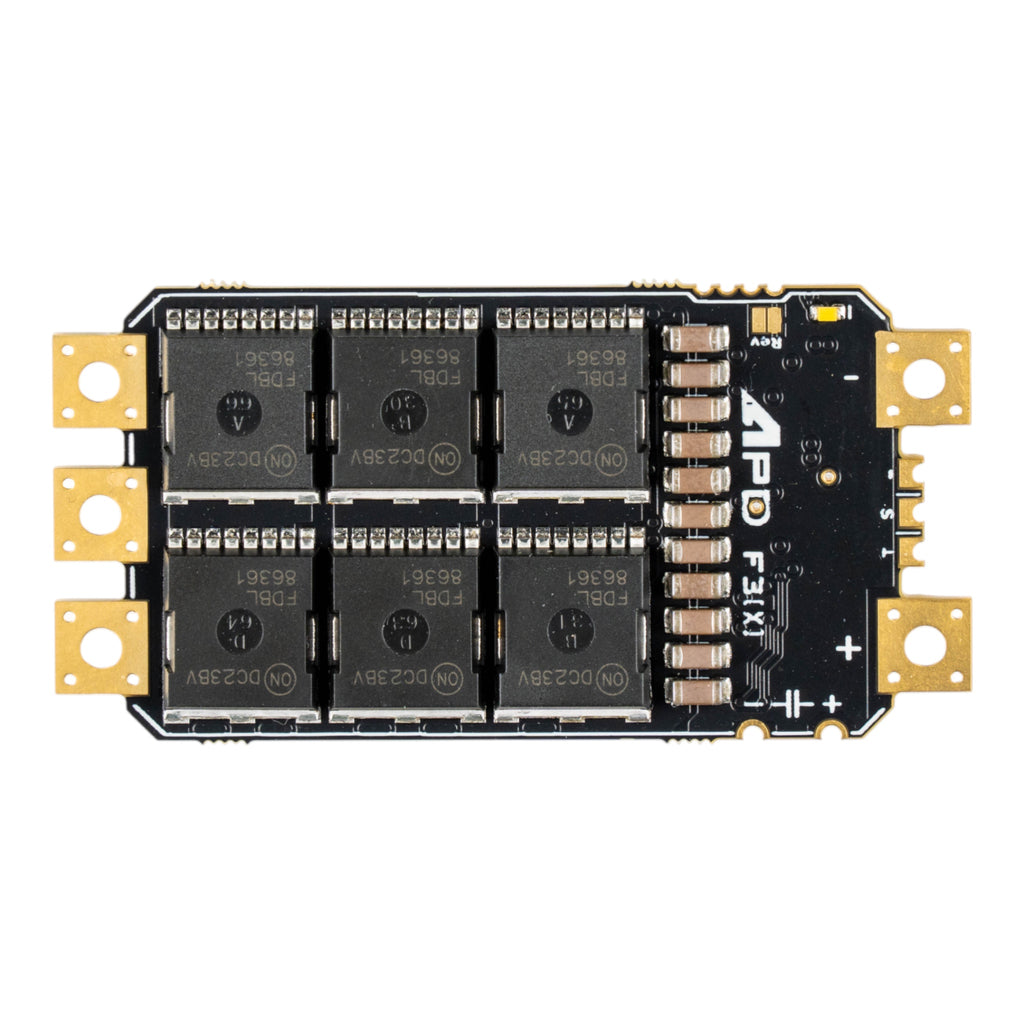

120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
Roll over image to zoom in Click on image to zoom
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA
120F3[x]v2 - 120A APD ESC NDAA

120F3[x]v2 - 120A APD ESC NDAA

APDSKU: 102434
Price:
$186.00
Stock:
In stock

Description

APD products are intended for commercial, institutional, and government use only.

Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability

  • Proprietary firmware designed in Australia

  • Plug and play firmware

  • Up to 12S (50,4 V) capable

  • Up to 120 A continuous* output current

  • 200 A Burst current

  • True 10-bit resolution

  • Virtually no setup time, with a simple motor reverse solder tab

  • Auto-detect ProShot or DShot

  • ProShot1000 capable (1Mbs/s)

  • DShot150 to DShot600 capable (0.15-0.6Mbs/s)

New Feature Set (v2)

  • Configuration of drive parameters, signal types and fault handling

  • Bi-Directional DShot for RPM Filtering support

  • On board bootloader

  • Passthrough firmware updating and configuration

  • Additional Telemetry types: PWM Telemetry and RPM Output

  • High-speed telemetry rates when operating DShot and ProShot

  • Reversible operation support (full forwards to full reverse)

  • Dynamic signal quality checks across supported input protocols

  • Hardware protection for UART programming pins

  • Up to 750,000 eRPM (protocol dependant)

  • Motor agnostic

  • Auto PWM output frequency

  • Auto timing advance

  • Telemetry output

  • Automatic current limiting and over-temperature protection

  • LED indication

  • Digital commands over ProShot (including anti-turtle mode)

  • Digital commands over DShot

  • Bare-PCB design to allow maximum integration within the end setup

  • 8-Layer PCB to ensure minimal track resistance

*Continuous current ratings are at a 100% throttle duty cycle.

Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s of airflow.

Additional Information
Weight: 0.02kg
Dimensions: 70x30x20mm
Documentation: docs.powerdrives.net
CAD Model: 120F3 CAD Model
